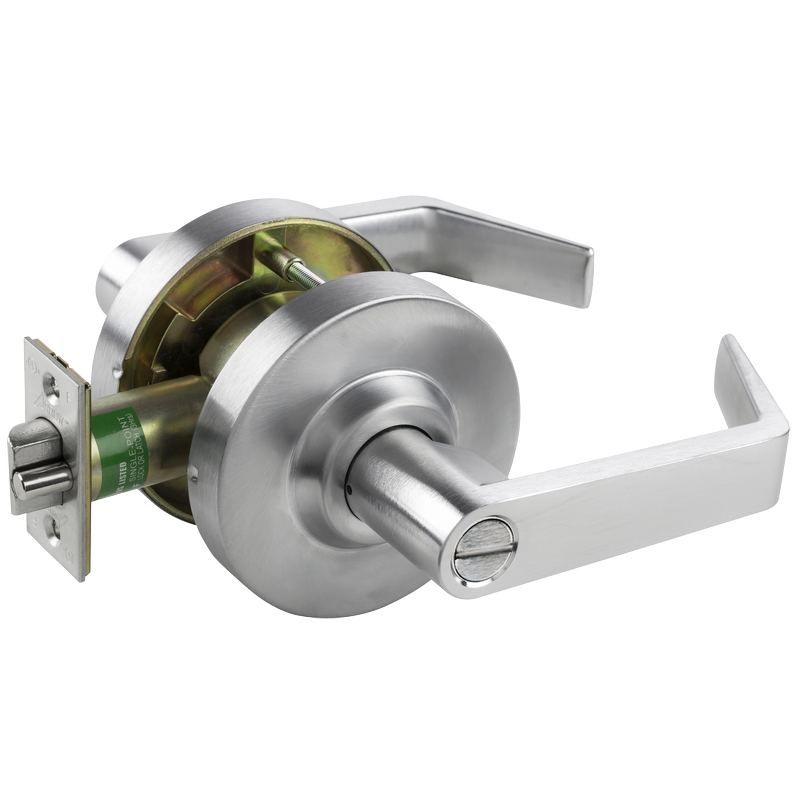

Arrow Lock MLX02-SR-26D Grade 2 Privacy Lock

Arrow MLX02-SR-26D Grade 2 Privacy Lock is designed for commercial applications requiring both security and convenience. This Grade 2 cylindrical lock features a non-keyed privacy function, making it ideal for restrooms and private offices where access control is essential. The robust Rigid Sierra lever is crafted for durability, while the satin chrome finish adds a sleek, modern aesthetic. Installation is a breeze with its two screw setup, allowing for quick mounting on doors with a standard 2-1/8" bore and a backset of 2-3/4". It accommodates door thicknesses ranging from 1-3/8" to 1-3/4". The stainless steel latch boasts a 1/2" throw and is UL listed, ensuring reliable performance. With a total projection of 2-17/32" from the face of the door, this lockset maintains a low profile without sacrificing security. Engineered for resilience, the MLX Series includes a Free Wheeling Lever that resists abuse and wear, backed by a ten-year mechanical warranty. Its non-handed design simplifies installation and use, making it a versatile choice for a variety of settings. With its combination of style, durability, and ease of installation, the Arrow MLX02-SR-26D is a smart choice for any professional looking to enhance their door hardware solutions.

Grade 2 Privacy Lock

Grade 2 Cylindrical Lock, Privacy Function, Non-keyed, Rigid Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Satin Chrome Finish, Non-Handed

The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.

• Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
• Freewheeling Lever
• Warranty – Ten Year Warranty
• Handing – Non-handed
• Packaging – 6 per case
• Strike – 4-7/8" ANSI (123.83mm)
• Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
• Keys – 2 brass keys

Resources

• MLX Series Cut Sheet
• MLX Series Grade 2 Cylindrical Lever Locks Cut Sheet
• QL Series MLX/Series Door Marker Template
• QL Series/MLX Series Instructions
• Video: How to Install a Commercial Lever
