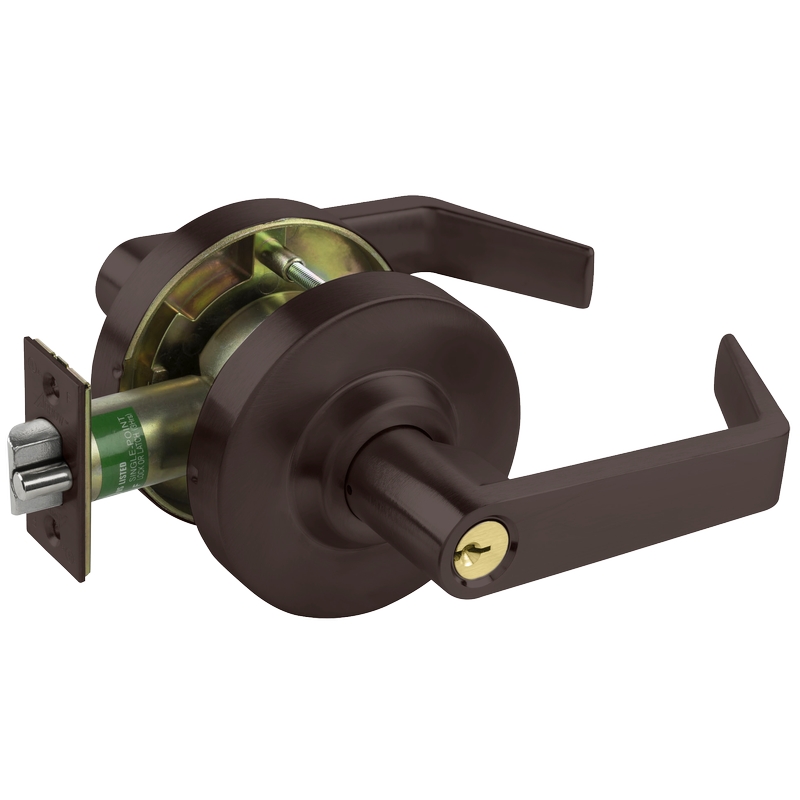

Arrow Lock MLX81-SR-613E Grade 2 Entry/Office Lock

Arrow Lock MLX81-SR-613E Grade 2 Entry/Office Lock offers a reliable and robust solution for commercial applications. This Grade 2 cylindrical lock features an entrance function with a key-in-lever cylinder, ensuring secure access without compromising ease of use. The Sierra lever design is not only aesthetically pleasing but also engineered for maximum durability, incorporating a Free Wheeling Lever that resists abuse, making it ideal for high-traffic areas. Installation is straightforward with a two-screw lockset system, compatible with standard 2-1/8" bore doors and suitable for door thicknesses ranging from 1-3/8" to 1-3/4". The 3-11/32" rose diameter provides a polished look alongside its dark oxidized bronze finish, enhancing any door's appearance. Additional features include a stainless steel latch with a 1/2" throw, ensuring secure locking, and a UL-listed guarded latchbolt for added protection. The lock is non-handed, allowing for versatile installation, and comes with a solid brass 6-pin cylinder, keyed differently for enhanced security. Backed by a 10-year mechanical warranty, the Arrow Lock MLX81-SR-613E is a dependable choice for upgrading or replacing existing locks, ensuring peace of mind and lasting performance.

Grade 2 Entry/Office Lock

Grade 2 Cylindrical Lock, Entrance Function, Key in Lever Cylinder, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Dark Oxidized Bronze Finish, Non-Handed

The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.

• Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
• Freewheeling Lever
• Warranty – Ten Year Warranty
• Handing – Non-handed
• Packaging – 6 per case
• Strike – 4-7/8" ANSI (123.83mm)
• Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
• Keys – 2 brass keys
