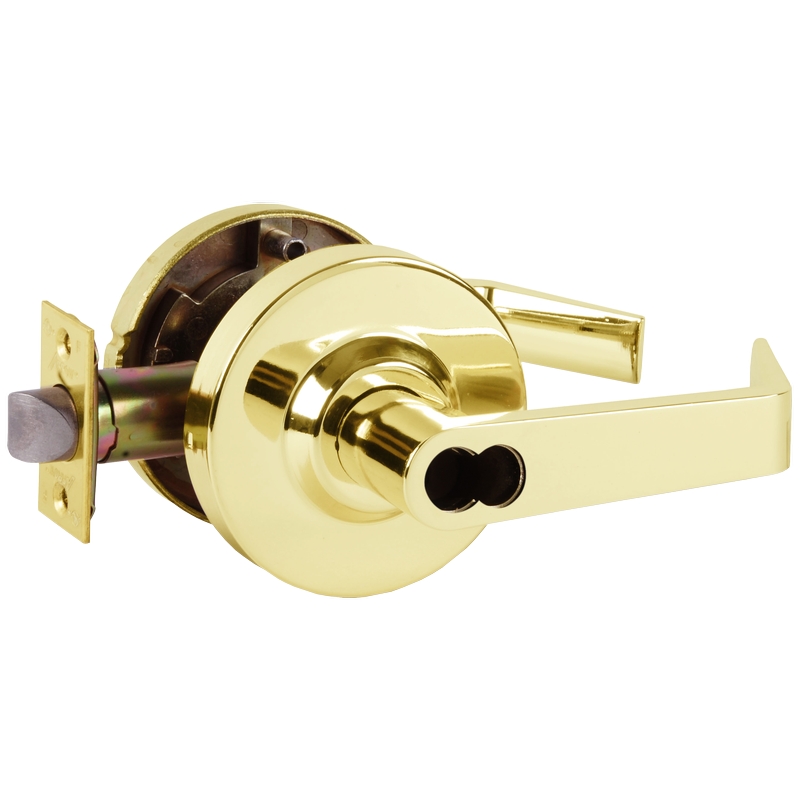

Arrow Lock MLX82-SR-03-IC Grade 2 Storeroom Lock

Arrow MLX82-SR-03-IC Grade 2 Storeroom Lock offers a robust and secure solution for commercial applications, blending durability with ease of installation. Designed with a storeroom function, this Grade 2 cylindrical lockset features a Free Wheeling Lever, providing exceptional resistance to abuse while ensuring smooth operation. The lock is SFIC prep and accepts either a 6- or 7-pin SFIC cylinder, making it versatile for various keying systems. With a striking bright brass finish, it not only enhances security but also complements a range of architectural styles. The 3-11/32" rose diameter and removable thru-bolts simplify installation, allowing for quick upgrades or replacements. Installation is straightforward, requiring a standard 2-1/8" bore and accommodating doors ranging from 1-3/8" to 1-3/4" thick. The stainless steel latch features a 1/2" throw and is UL listed for added peace of mind. This lockset comes with a ten-year mechanical warranty, ensuring long-term reliability. With non-handed handing and a commercial-grade design, the Arrow MLX82-SR-03-IC is an excellent choice for enhancing security in storerooms and other controlled access areas. Whether you're a building professional or a knowledgeable homeowner, this lock delivers both performance and style.

Grade 2 Storeroom Lock

Grade 2 Cylindrical Lock, Storeroom Function, SFIC Prep Less Core, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Accepts 6- or 7-Pin SFIC Cylinder, Bright Brass Finish, Non-Handed

The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.

• Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
• Freewheeling Lever
• Warranty – Ten Year Warranty
• Handing – Non-handed
• Packaging – 6 per case
• Strike – 4-7/8" ANSI (123.83mm)
• Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
• Keys – 2 brass keys
