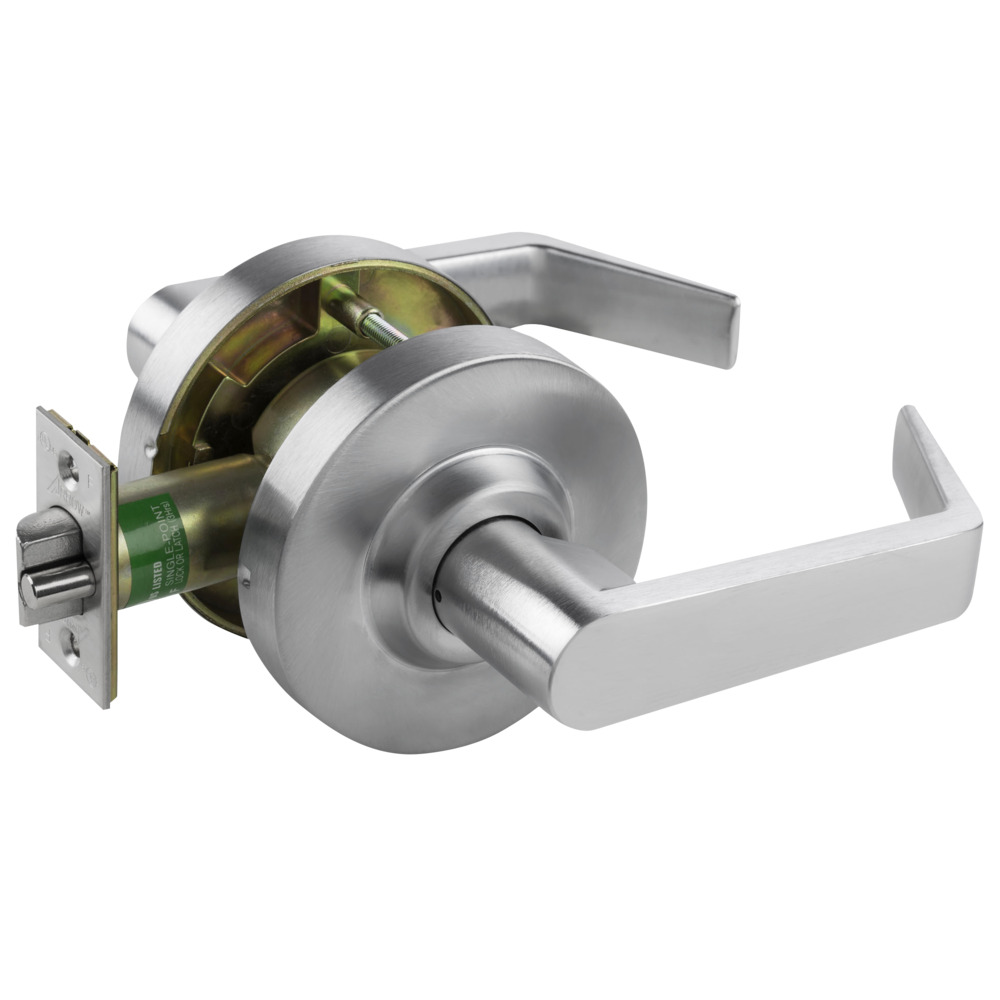

Arrow Lock QL01-SR-26D Grade 1 Passage LatchArrow QL01-SR-26D Grade 1 Passage Latch offers a robust and reliable solution for commercial applications. This Grade 1 cylindrical latch is designed for durability and ease of use, featuring a key-in-lever cylinder and the stylish Sierra lever handle. With a 3-11/32" rose diameter and a satin chrome finish, it complements a wide range of door styles while ensuring a modern aesthetic. This passage latch is non-handed, making it versatile for various installation scenarios. The two-screw lockset installation simplifies the setup process, allowing for quick and efficient mounting. The stainless steel latch boasts a ½" throw and is UL listed for added security, ensuring it stands up to daily wear and tear. Designed to fit standard doors ranging from 1-3/8" to 1-3/4" thick, the QL01-SR-26D requires a standard 2-1/8" bore and a 2-3/4" backset. It comes with two brass keys and includes a 10-year mechanical warranty, reflecting Arrow’s commitment to quality. The latch's ANSI rating of A156.2, Series 4000, Grade 1, assures you of its performance and reliability. Optimize your door security with the Arrow QL01-SR-26D, where functionality meets sophistication.
Grade 1 Passage Latch
Grade 1 Cylindrical Latch, Passage Function, Key in Lever Cylinder, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Satin Chrome Finish, Non-Handed
The QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
The QL Series is a robust Grade 1 cylindrical lever lock.
The QL Series offers a two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
- Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/4" (69.85mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
- Warranty – 10 Years
- Handing – Non-Handed
- Packaging – 6 per case
- Strike – 4-7/8" ANSI (123.83mm)
- Keys – 2 brass keys
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2, Series 4000, Grade 1
Ansi Function: F75 - Passage
Baa Qualified: No
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: South Korea
Cylinder Type: Key in Lever Cylinder
Door Thickness: 1-3/8" - 1-3/4"
Dust Box: None
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 01-Passage
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Leverknob Design: SR - Sierra Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8" x 2-1/4"
Of Keys: 2
Origin: South Korea
Pack Height: 4.13"
Pack Length: 8.38"
Pack Qty: 1
Pack Volume: 241.83 in³
Pack Width: 7"
Pins: 6
Product Height: 4"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-17/32"
Restrictions: None
Roseescutcheon Design: 3-11/32" Rose Diameter
Screws: Combination
Series: QL Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8"
Std Strike Number: 306
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C
Unit of Measure: Each
