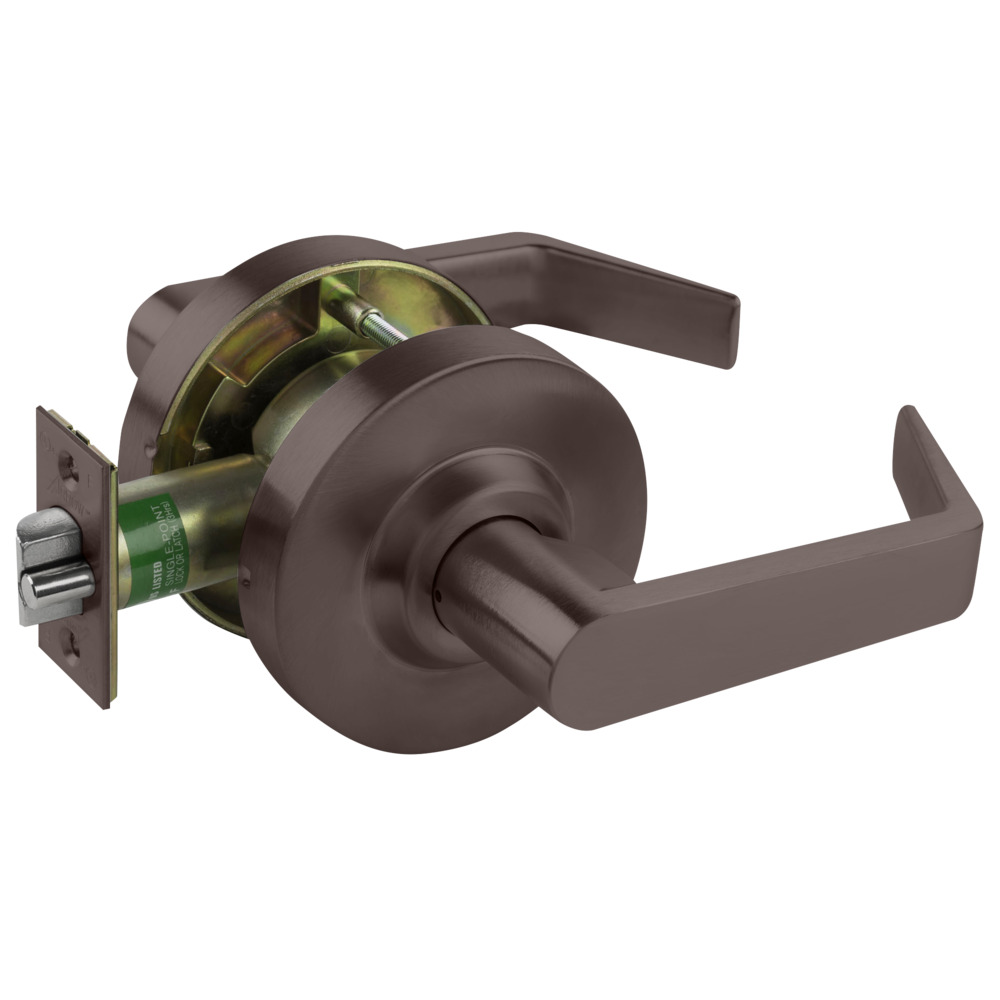

Arrow Lock QL01-SR-613E Grade 1 Passage Latch

Arrow QL01-SR-613E Grade 1 Passage Latch is a robust solution designed for commercial applications, combining strength and style with ease of installation. This cylindrical latch features a passage function and a key-in-lever cylinder, providing both accessibility and security. The Sierra lever design adds a touch of sophistication, while the dark oxidized bronze finish ensures durability and aesthetic appeal. Constructed to Grade 1 standards, the QL01-SR-613E is built to withstand heavy use, boasting a freewheeling lever for enhanced abuse resistance. The installation process is streamlined, thanks to its two-screw lockset design, making it a practical choice for quick replacements or upgrades. The latch itself has a stainless steel throw of ½ inch, ensuring reliability and performance, while the included 10-year mechanical warranty offers peace of mind. This passage latch fits standard door preparations with a bore diameter of 2-1/8 inches and accommodates door thicknesses between 1-3/8 inches to 1-3/4 inches. The 3-11/32 inch rose diameter and ANSI strike compatibility further simplify installation. Additionally, the QL series is ADA compliant, making it an excellent choice for facilities prioritizing accessibility. With Arrow QL01-SR-613E, you’re assured a blend of quality, function, and style for your door hardware needs.

Grade 1 Passage Latch

Grade 1 Cylindrical Latch, Passage Function, Key in Lever Cylinder, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Dark Oxidized Bronze Finish, Non-Handed

The QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

The QL Series is a robust Grade 1 cylindrical lever lock.

The QL Series offers a two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

• Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
• Warranty – 10 Years
• Handing – Non-Handed
• Packaging – 6 per case
• Strike – 4-7/8" ANSI (123.83mm)
• Keys – 2 brass keys
