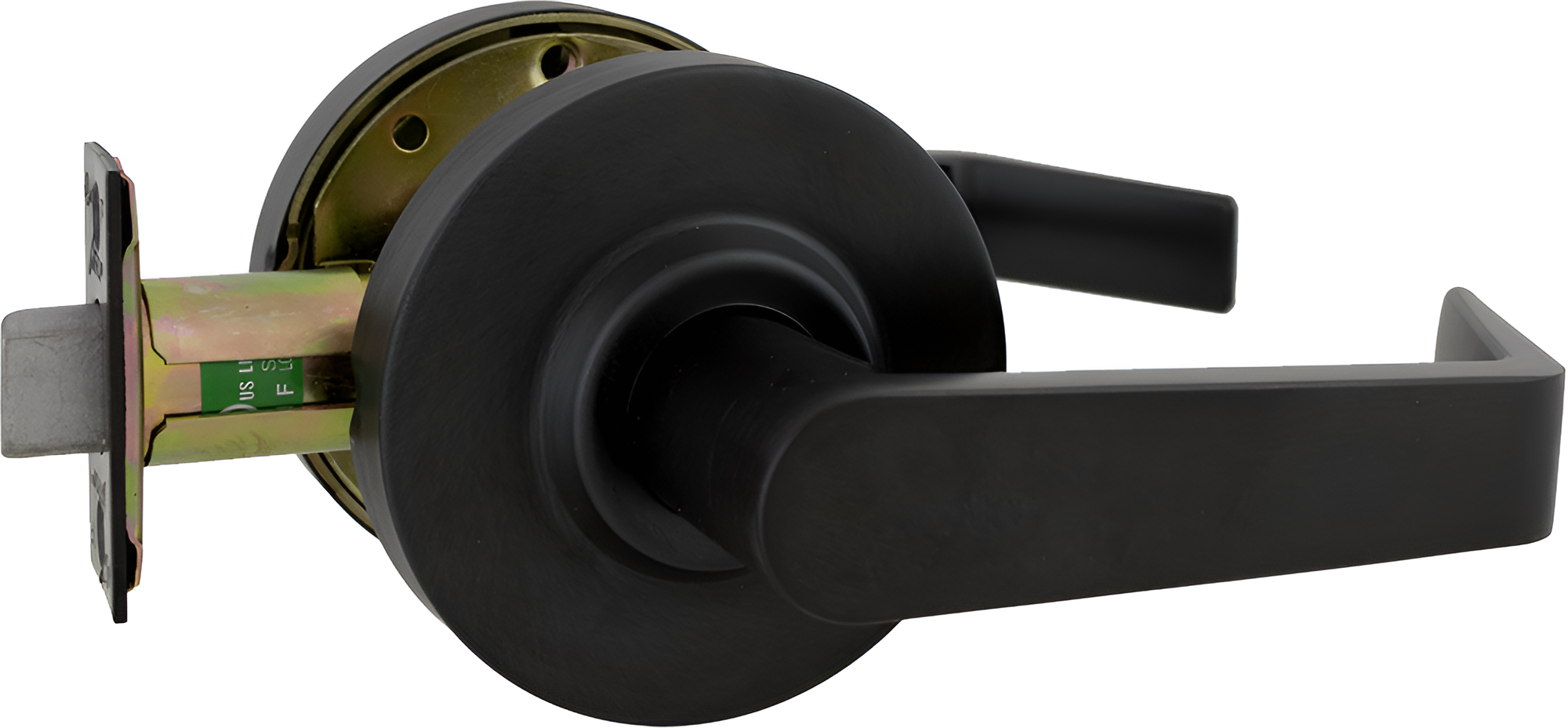

Arrow Lock QL01SR-BSP-2 3/4 BS Sierra Passage Lever, 2-3/4" Backset, Grade 1, Black Suede Powder Coat

Arrow Lock Company QL01SR-BSP-2 3/4 BS Passage Sierra Lever combines robust security with a sleek design, making it an ideal choice for commercial applications. This Grade 1 lockset features a Freewheeling Lever designed for abuse resistance, ensuring longevity even in high-traffic environments. The lockset is easy to install with a two-screw design and is backed by a ten-year mechanical warranty, offering peace of mind for building professionals and homeowners alike. Compliant with ANSI/BHMA A156.2, Series 4000 standards, this model is Underwriters Laboratories (UL) listed for use on 3-hour, A label single swinging doors, enhancing its reliability. The QL01SR accommodates standard door preparations, requiring a 2-1/8" bore and fitting door thicknesses from 1-3/8" to 1-3/4". The stainless steel latch features a 1/2" throw and is UL listed, providing a secure locking mechanism. Designed with accessibility in mind, the lever meets the requirements of the Americans with Disabilities Act (ADA), ensuring ease of use for all. Finished in an elegant Black Suede Powder Coat, the Sierra lever adds a sophisticated touch to any door. With two brass keys included, the QL01SR is a durable and stylish addition to your locking solutions.

Passage Sierra Lever, 2-3/4in Backset, Grade 1, 622/US19/BSP Black Suede Powder Coat

QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Features:

• ANSI/BHMA A156.2, Series 4000, Grade 1.
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C.
• ANSI A117.1 Accessibility Code.
• California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
• ADA/Americans with Disabilities Act: Acceptable Door Hardware: Section 4.13.9.

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking Functions.
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (121mm) in length. QL Roses are wrought brass 3-11/32" (85mm) diameter. Total projection from face of door is 2-17/32" (65mm).
• Freewheeling Lever.
• Handing: Non-handed.
• Strike: 4-7/8" ANSI (124mm).
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).
• Keys: 2 brass keys.
• Design: Sierra (SB).
• Installation: 161 prep for retrofit and secure installation.
• Warranty: Ten Year Warranty.

Function:

• QL01 Passage: Latchbolt operated by lever either side.

Accessories:

• Q73: Spring Latch: 2-3/4" Backset. 1/2" Throw.
• Q71: Dead Latch: 2-3/4" Backset. 1/2" Throw.
• 306: ANSI 115.2 Strike Standard with QL Series.

Finishes:

• 605/US3 - Bright Brass
• 613e/US10BE - Dark Oxide Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated
