Arrow Lock QL11-SR-26D-IC Grade 1 Entrance LockArrow QL11-SR-26D-IC Grade 1 Entrance Lock offers unparalleled security and durability for commercial applications. This robust cylindrical lock features an entrance function with a Sierra lever design, ensuring ease of use while maintaining a sophisticated look. Constructed to Grade 1 standards, it is ideal for high-traffic areas demanding reliability and strength. Designed for quick installation, the lock utilizes a two-screw lockset method and fits standard door preparations with a 2-1/8" bore. It accommodates door thicknesses ranging from 1-3/8" to 1-3/4", making it versatile for various entryways. The lock’s stainless steel latch boasts a 1/2" throw and is UL Listed, ensuring a guarded latchbolt across all locking functions. The QL11-SR-26D-IC is non-handed, allowing for flexible installation without worrying about door orientation. With a satin chrome finish, it provides a modern aesthetic while resisting wear over time. Additionally, this lock comes with a 10-year mechanical warranty, reinforcing its long-lasting quality. Each unit includes two brass keys, and the packaging contains six locks per case, making it an excellent choice for contractors and building professionals seeking dependable door hardware solutions.
Grade 1 Entrance Lock

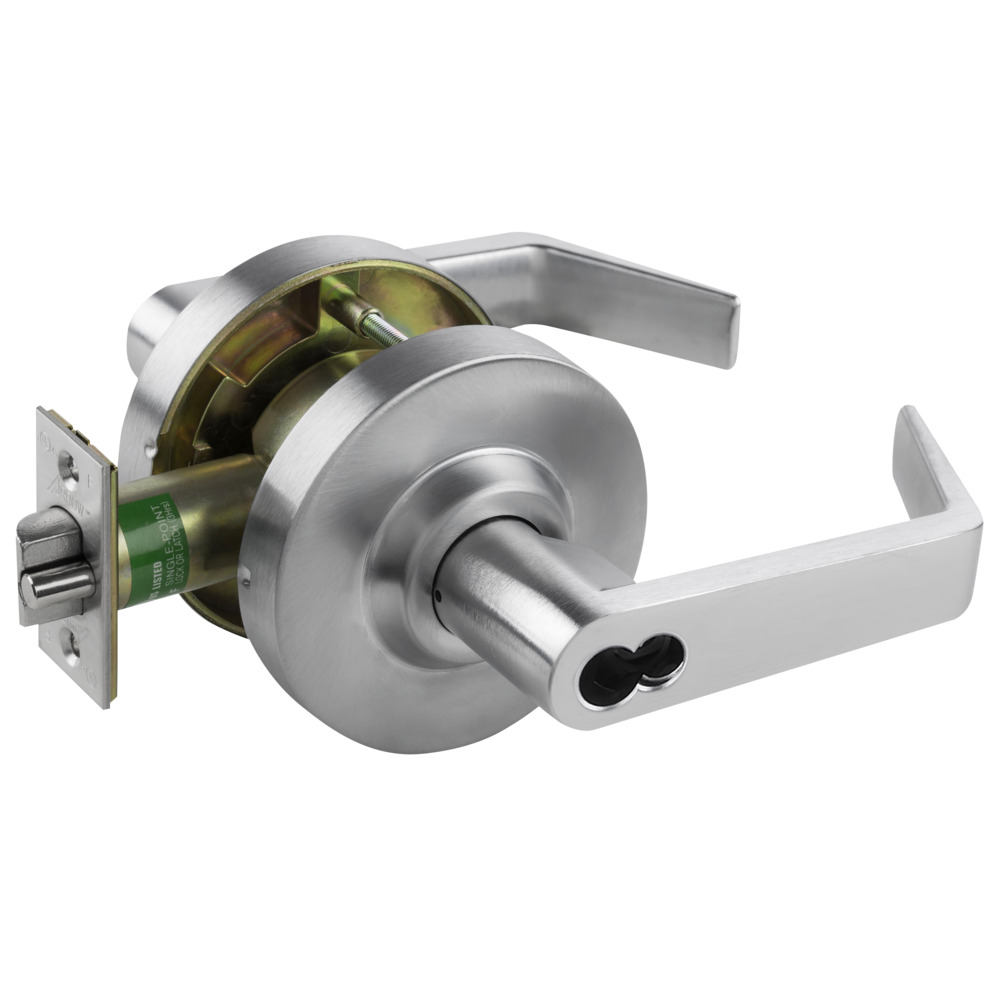

Grade 1 Cylindrical Lock, Entrance Function, SFIC Prep Less Core, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Rigid Lever Function, Accepts 6- or 7-Pin SFIC Cylinder, Satin Chrome Finish, Non-Handed
The QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
The QL Series is a robust Grade 1 cylindrical lever lock.
The QL Series offers a two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
- Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/4" (69.85mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
- Warranty – 10 Years
- Handing – Non-Handed
- Packaging – 6 per case
- Strike – 4-7/8" ANSI (123.83mm)
- Keys – 2 brass keys
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2, Series 4000, Grade 1
Ansi Function: F109 - Entry/Office
Baa Qualified: No
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: South Korea
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/8" - 1-3/4"
Dust Box: None
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 11-Entrance
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Latch Bore Diameter: 1"
Leverknob Design: SR - Sierra Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8" x 2-1/4"
Origin: South Korea
Pack Height: 4.13"
Pack Length: 8.38"
Pack Qty: 1
Pack Volume: 241.83 in³
Pack Width: 7"
Pins: 6 or 7
Product Height: 4"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-17/32"
Restrictions: None
Roseescutcheon Design: 3-11/32" Rose Diameter
Screws: Combination
Series: QL Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 306
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C
Unit of Measure: Each
