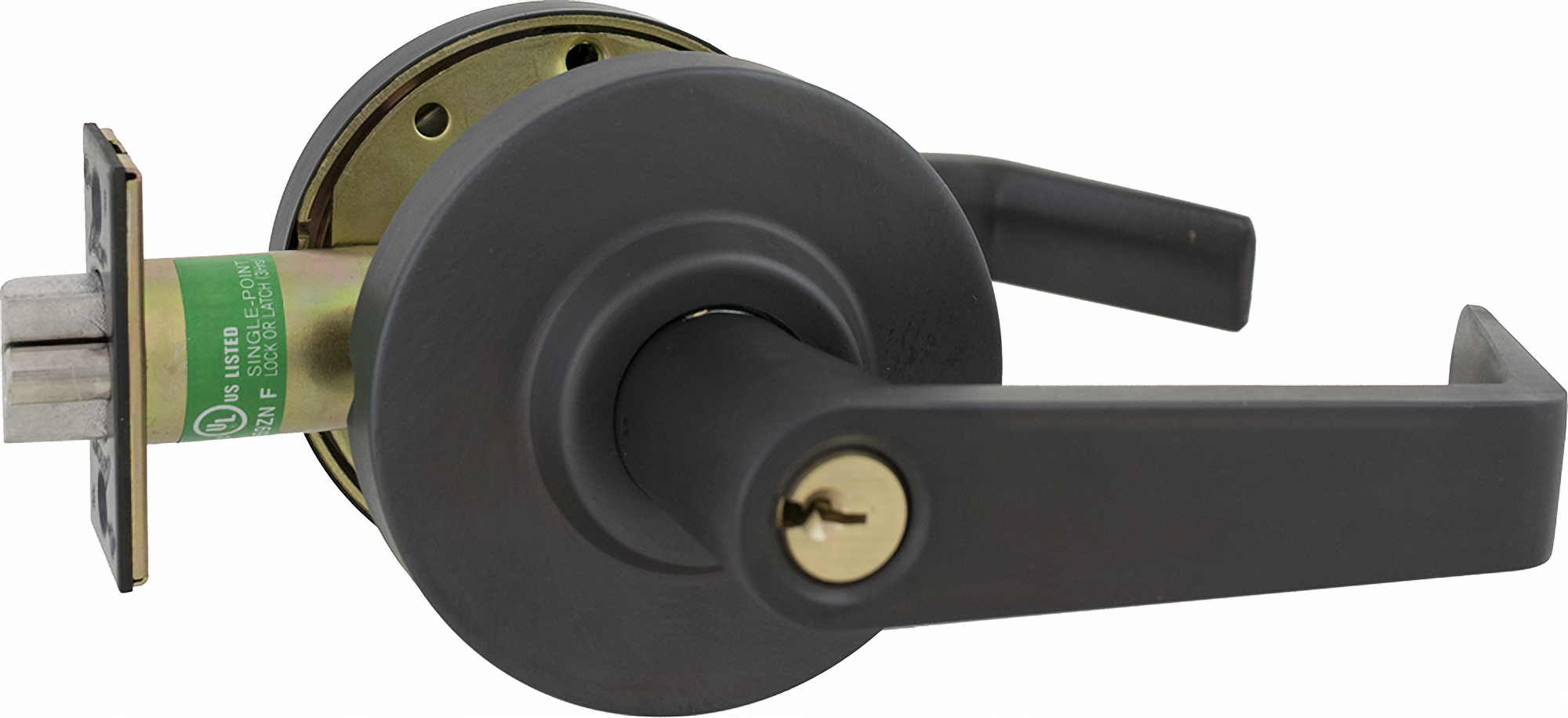

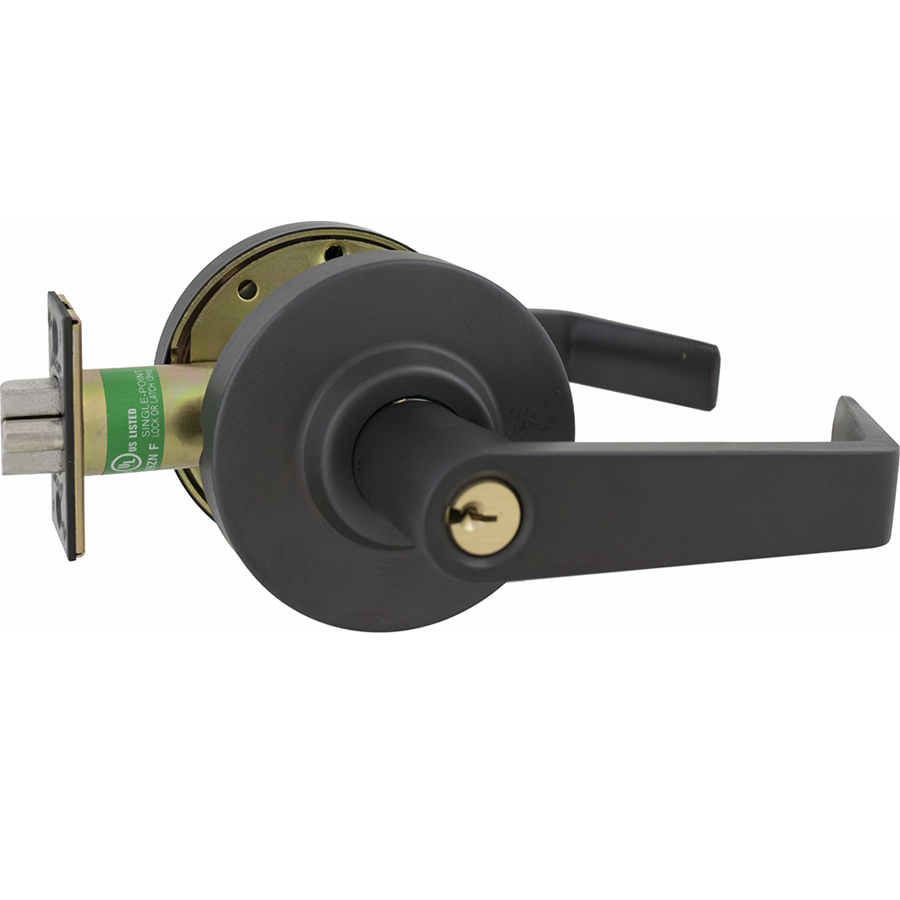

Arrow Lock QL81SR613E-CS-2 3/4 BS Sierra Lever Entry Lock, Schlage C Keyway, 2-3/4" Backset, Grade 1, Oil Rubbed Bronze

Arrow Lock Company QL81SR613E-CS-2 3/4 BS Entry Sierra Lever is a top-tier choice for commercial applications, combining durability and ease of installation in a Grade 1 ANSI/BHMA certified lockset. This lock features a sleek oil-rubbed bronze finish that complements a range of architectural styles while providing the reliability you expect from Arrow Lock. Designed for standard door preparations, the QL81 lever fits doors with a thickness of 1-3/8" to 1-3/4" and requires a 2-1/8" bore. It boasts a 2-3/4" backset and is equipped with a stainless steel latch that features a 1/2" throw, ensuring robust security. The freewheeling lever design minimizes maintenance and helps prevent vandalism, while the solid brass 6-pin cylinder with a Schlage C keyway enhances key control. With multiple function options, including entrance, privacy, and storeroom, the QL81 lever caters to diverse security needs. Additionally, the 10-year mechanical warranty offers peace of mind for long-term reliability. Whether you're upgrading existing hardware or installing new locks, the Arrow Lock Company QL81SR613E-CS-2 provides an economical yet dependable solution for any commercial setting.

Entry Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 1, 613E/US10BE Oil Rubbed Bronze

The QL series is a robust grade 1 ANSI/BHMA certified lockset that is the ideal choice for replacing or upgrading a wide variety of commercial applications where consistent quality and ease of use/installation are required at an economical price. This series features a variety of functions and multiple finishes to accommodate any application. Freewheeling levers prevent vandalism and reduce maintenance and a 10-Year mechanical warranty provides confidence and peace of mind when choosing the QL series. The QL series uses the Arrow Sierra (SR) trim design and provides an easy through-bolted installation. For a budget-friendly solution that you can rely on, look no further than the Arrow QL series.

Specifications:

• Door Preparation: Requires standard 2-1/8" (53.97mm) bore through door.
• Backset: 2-3/4" (69.85mm)
• Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2 17/32" ( 4.5mm).
• Freewheeling Lever Warranty: 10 Year Warranty
• Handing: Non-handed
• Packaging: 6 per case
• Strike: 4-7/8" ANSI (123.83mm)
• Cylinder: Solid brass 6 pin, Schlage CS keyway, SFIC, SIC (QL only), Medeco/ASSA LFIC
• Keys: 2 brass keys

Functions:

• QL01: Passage - Latchbolt operated by lever either side.
• QL72: Privacy - Latchbolt operated by lever either side except when inside turn button locks outside. Unlocked by rotating button or by using tool outside.
• QL08: 1/2 Dummy Trim - Rigid trim for one side of door only. Used as pull or to match active trim.
• QL81: Entrance - Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
• QL82: Storeroom - Outside lever always locked. Latchbolt operated by key in outside lever, or by turning inside lever
• QL87: Classroom - Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks outside lever only.
• QL97: Intruder Classroom - Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.

Finishes:

• 605/US3 - Bright brass
• 613/US10B - Dark oxide bronze, oil rubbed
• 626/US26D - Satin chromium plated

Features

• Backset: 2-3/4" (69.85mm)
• Cylinder: Solid brass 6 pin, Schlage CS keyway, SFIC, SIC (QL only), Medeco/ASSA LFIC
• Door Preparation: Requires standard 2-1/8" (53.97mm) bore through door.
• Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Packaging: 6 per case
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2 17/32" ( 4.5mm).
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Strike: 4-7/8" ANSI (123.83mm)
• Handing: Non-handed
• Freewheeling Lever Warranty: 10 Year Warranty
• Keys: 2 brass keys
• Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
