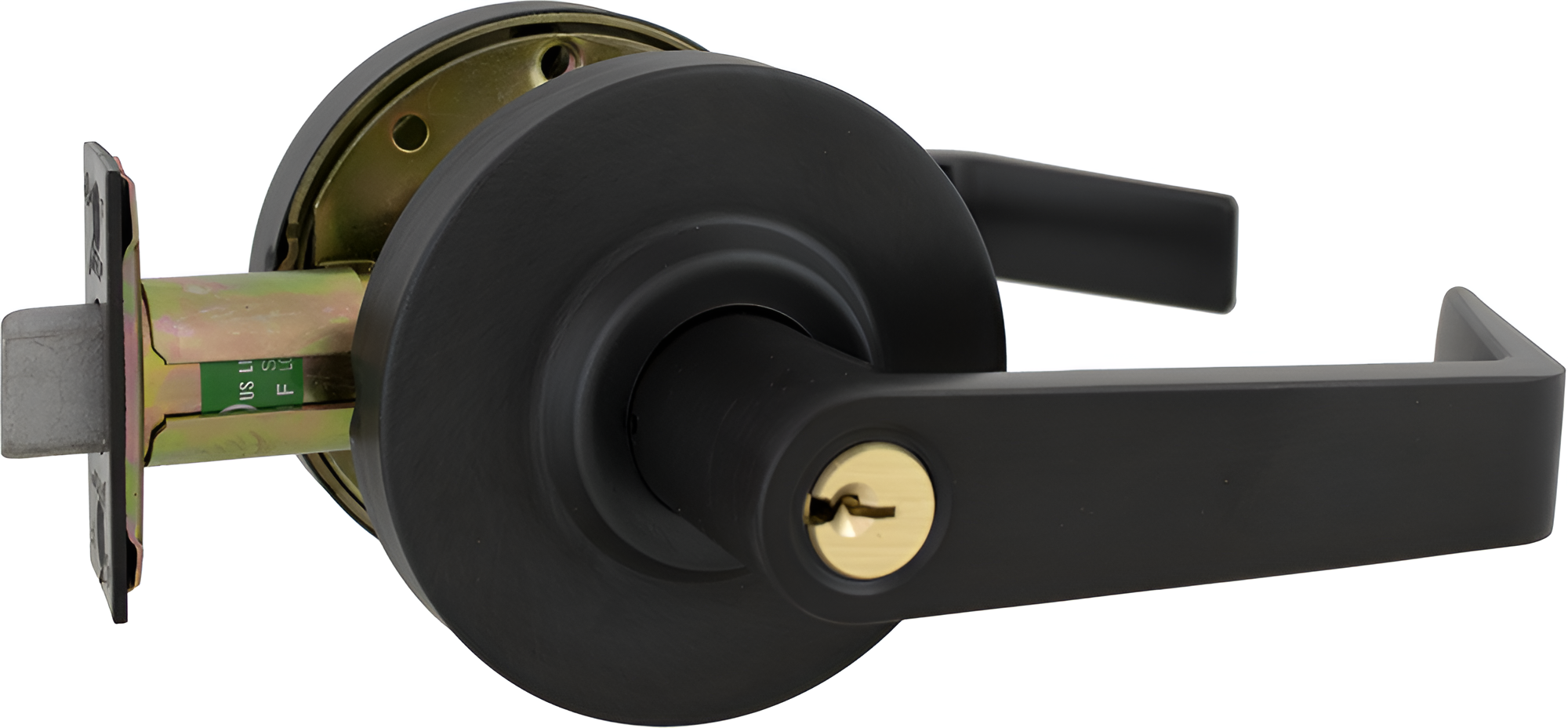

Arrow Lock QL82SR-BSP-CS-2 3/4 BS Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 1, Black Suede Finish

Arrow Lock Company QL82SR-BSP-CS-2 3/4 BS Storeroom Sierra Lever is a robust Grade 1 lockset designed for durability and security in commercial applications. Featuring a Freewheeling Lever, this lockset is specifically engineered to resist abuse, making it an ideal choice for high-traffic environments. Its quick, two-screw installation simplifies the upgrade or replacement process, ensuring minimal downtime. Conforming to ANSI/BHMA A156.2, Series 4000, Grade 1 standards, this lock is also UL and CUL listed for use on 3-hour, A label single swinging doors, providing peace of mind regarding safety and reliability. The QL82SR is designed for standard door thicknesses of 1-3/8" to 1-3/4" and requires a standard 2-1/8" bore for installation. The latch features a stainless steel 1/2" throw, adding an extra layer of security. With a sleek Black Suede Powder Coat finish and a Sierra lever design, this lockset not only performs exceptionally but also looks professional. It includes two brass keys and is non-handed, offering flexibility in installation. Backed by a ten-year mechanical warranty, the Arrow Lock QL82SR-BSP-CS-2 is a reliable choice for any storeroom door needing secure access control.

Storeroom Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 1, 622/US19/BSP Black Suede Powder Coat

QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Features:

• ANSI/BHMA A156.2, Series 4000, Grade 1.
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C.
• ANSI A117.1 Accessibility Code.
• California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
• ADA/Americans with Disabilities Act: Acceptable Door Hardware: Section 4.13.9.

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking Functions.
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (121mm) in length. QL Roses are wrought brass 3-11/32" (85mm) diameter. Total projection from face of door is 2-17/32" (65mm).
• Freewheeling Lever.
• Handing: Non-handed.
• Strike: 4-7/8" ANSI (124mm).
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).
• Keys: 2 brass keys.
• Design: Sierra (SB).
• Installation: 161 prep for retrofit and secure installation.
• Warranty: Ten Year Warranty.

Function:

• QL01 Passage: Latchbolt operated by lever either side.
• QL02 Privacy:Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch.
• QL72 Privacy: Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch
• QL81 Entrance:Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
• QL82 Storeroom: Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.
• QL87 Classroom: Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks out-side lever only.
• QL97 Intruder Classroom: Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.

Accessories:

• Q73: Spring Latch: 2-3/4" Backset. 1/2" Throw.
• Q71: Dead Latch: 2-3/4" Backset. 1/2" Throw.
• 306: ANSI 115.2 Strike Standard with QL Series.

Finishes:

• 605/US3 - Bright Brass
• 613e/US10BE - Dark Oxide Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated
