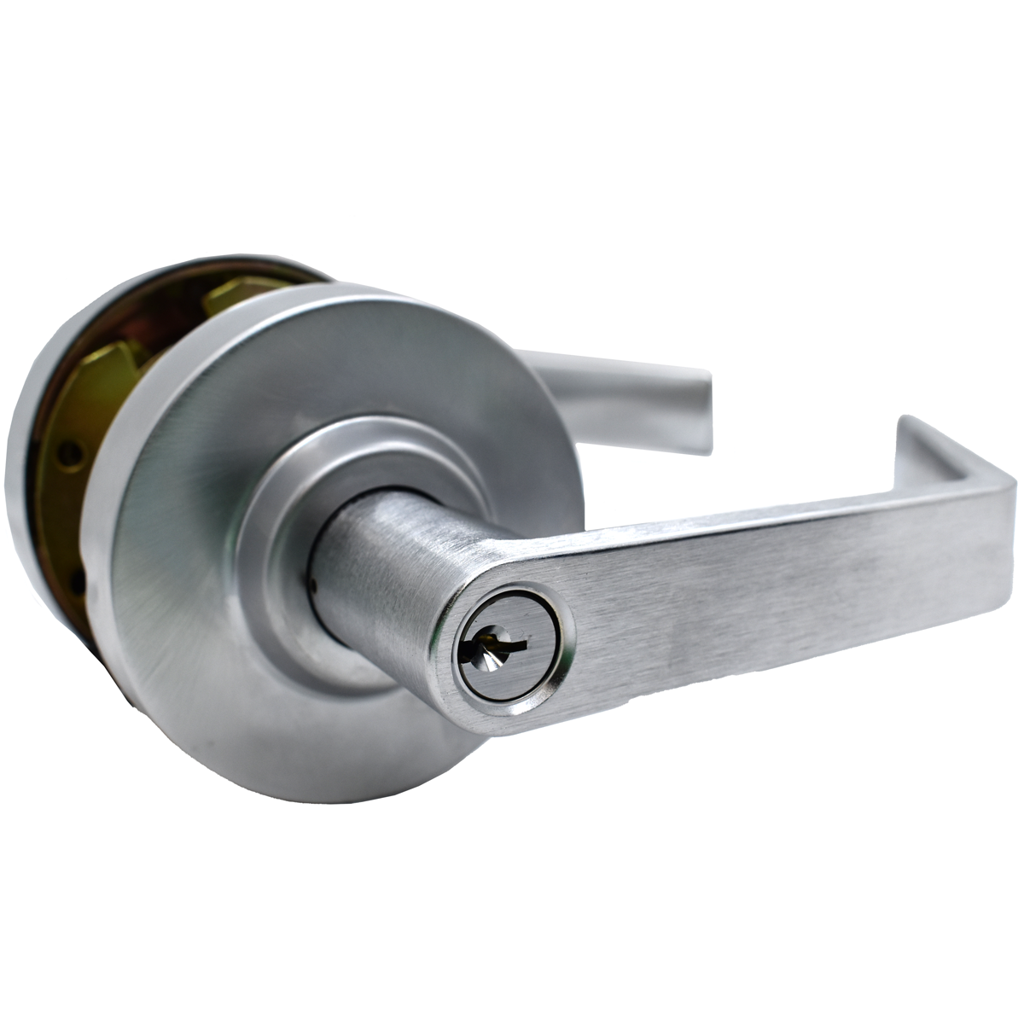

Arrow Lock QL82SR26D-CS-LE-EU 11-30 VDC Electrified FSE Fail Secure Storeroom Sierra Lever, Schlage C, Grade 1, Satin Chrome

Arrow Lock Company QL82SR26D-CS-LE-EU is a top-of-the-line, electrified fail secure lock designed for commercial applications. This Grade 1 lockset features a robust Freewheeling Lever that enhances abuse resistance, making it ideal for high-traffic environments. With a quick two-screw installation, the QL82SR saves valuable time during setup, and its 10-year mechanical warranty provides peace of mind. Certified to ANSI/BHMA A156.2, Series 4000 standards, this lockset is UL and CUL listed for use on 3-hour, A label single swinging doors, ensuring compliance with safety regulations. The satin chrome finish (626/US26D) lends a modern aesthetic while also providing durability against daily wear and tear. The QL82 storeroom function maintains security with an outside lever that remains rigid, while the latch can be operated by key or inside lever. Designed to fit standard door preparations, it accommodates doors between 1-3/8" and 1-3/4" thick, with a 2-3/4" backset. The stainless steel latch features a 1/2" throw and is UL listed for additional reliability. With its non-handed design and compatibility with Schlage C keyway cylinders, the QL82SR26D-CS-LE-EU is a versatile and dependable choice for any commercial security needs.

Electrified FSE (Fail Secure), w/Out REX, Storeroom Sierra Lever, Schlage C Keyway, Grade 1, 626/US26D Satin Chrome

QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Features:

• ANSI/BHMA A156.2, Series 4000, Grade 1.
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C.
• ANSI A117.1 Accessibility Code.
• California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
• ADA/Americans with Disabilities Act: Acceptable Door Hardware: Section 4.13.9.

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking Functions.
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (121mm) in length. QL Roses are wrought brass 3-11/32" (85mm) diameter. Total projection from face of door is 2-17/32" (65mm).
• Freewheeling Lever.
• Handing: Non-handed.
• Strike: 4-7/8" ANSI (124mm).
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).
• Keys: 2 brass keys.
• Design: Sierra (SB).
• Installation: 161 prep for retrofit and secure installation.
• Warranty: Ten Year Warranty.

Function:

• QL01 Passage: Latchbolt operated by lever either side.
• QL02 Privacy:Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch.
• QL72 Privacy: Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch
• QL81 Entrance:Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
• QL82 Storeroom: Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.
• QL87 Classroom: Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks out-side lever only.
• QL97 Intruder Classroom: Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.

Accessories:

• Q73: Spring Latch: 2-3/4" Backset. 1/2" Throw.
• Q71: Dead Latch: 2-3/4" Backset. 1/2" Throw.
• 306: ANSI 115.2 Strike Standard with QL Series.

Finishes:

• 605/US3 - Bright Brass
• 613e/US10BE - Dark Oxide Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated

Features

• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C
• ANSI A117.1 Accessibility Code
• California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
• ANSI/BHMA A156.2, Series 4000, Grade 1
