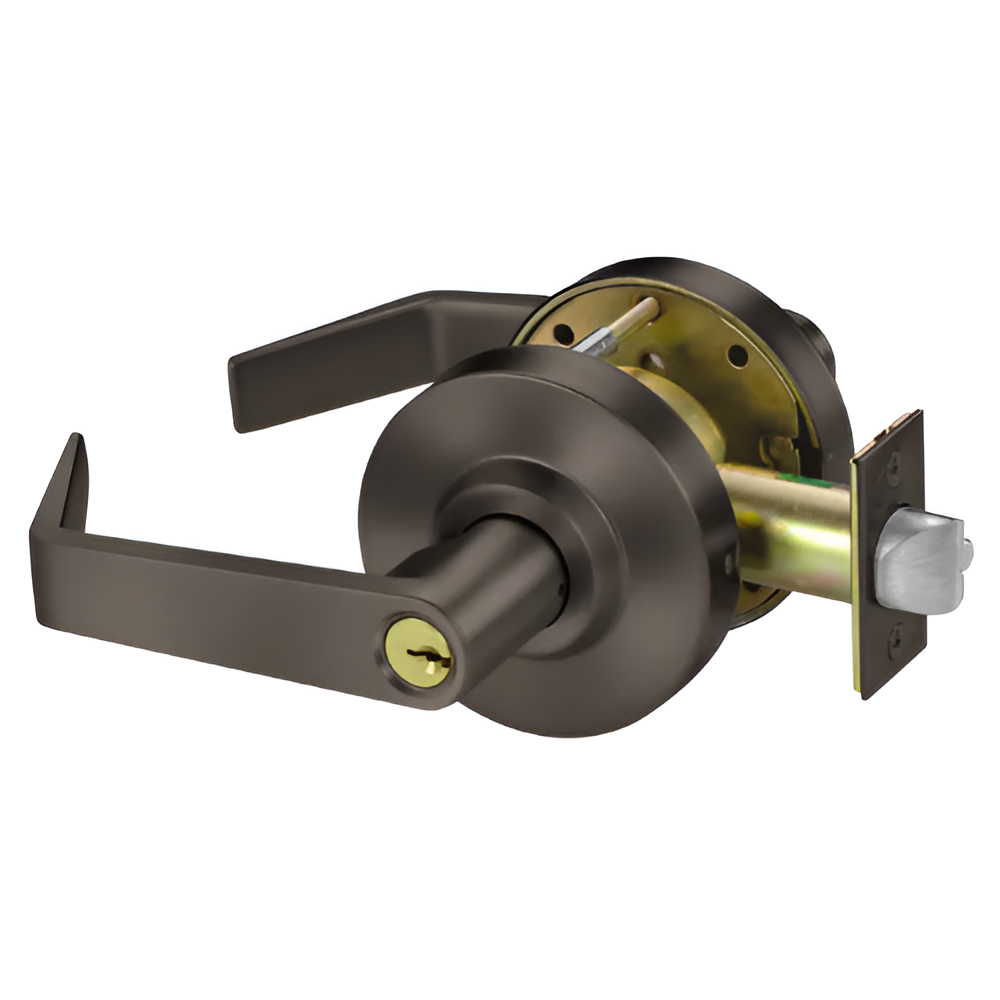

Arrow Lock QL82SR613E-SIC 2-3/4 BS Schlage Sierra Lever, IC Less Core, 2-3/4in Backset, Grade 1, Dark Bronze

Arrow Lock Company QL82SR613E-SIC 2-3/4 BS Storeroom Sierra Lever offers a robust solution for secure access in commercial settings. Engineered for durability, this Grade 1 cylindrical lockset features a freewheeling lever designed to withstand abuse, backed by a ten-year warranty. Its installation is streamlined with a four-screw setup, ensuring a quick and efficient fitting process. Designed to accommodate standard door preparations, the QL82SR is compatible with doors that are 1-3/8" to 1-3/4" thick and requires a 2-1/8" bore. The 2-3/4" backset enhances its versatility, while the stainless steel latch with a 1/2" throw provides reliable security. The lockset is non-handed, making it convenient for various applications. The QL82SR model is finished in Dark Oxidized Satin Bronze, ensuring a stylish yet professional appearance that complements any commercial environment. Its specialized functions allow for quick lockdowns, making it ideal for storerooms and closets. With ANSI/BHMA Grade 1 certification, it meets high standards for safety and security. Overall, the Arrow Lock Company QL82SR613E-SIC combines functionality, durability, and aesthetic appeal, making it a premium choice for those seeking reliable locking solutions.

Storeroom Sierra Lever, Schlage IC Less Core (FSIC), 2-3/4in Backset, Grade 1, 613E/US10BE Dark Oxidized Satin Bronze

The QL series grade 1 cylindrical lockset featuring a freewheeling lever for abuse resistance and a 10 year warranty. The QL lever features a four screw install for quick and easy installation.

Features:

• Door Preparation: Requires standard 2-1/8" (53.97mm) bore through door
• Backset: 2-3/4" (69.85mm)
• Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard
• Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset
• Safety & Security: ANSI/BHMA Grade 1 lock manufactured with high quality materials; specialized functions allow for quick and secure lockdowns
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2 17/32" ( 4.5mm)
• Abuse resistance
• Freewheeling lever
• Economical solution for ADA compliance
• Non-handed
• Cylinder: Solid brass 6 pin, Schlage CS keyway, SFIC, SIC (QL only), Medeco/ASSA LFIC

Non-Cylinder Functions:

• QL01: Passage, closet. Latchbolt operated by lever either side. ANSI No. F75
• QL02: Privacy Bath/Bedroom
• ANSI No. F76A
• Rigid lever
• Latch operated by lever either side except when outside lever is locked by pushing inside button
• Outside lever unlocked by turning inside lever, using emergency key, or closing door
• Inside lever always operates latch
• QL72: Privacy Bath/Bedroom
• ANSI No. F76A
• Latch operated by lever either side except when outside lever is locked by pushing inside button
• Outside lever unlocked by turning inside lever, using emergency key, or closing door
• Inside lever always operates latch

Single Cylinder Functions:

• QL11: Entrance or Office
• ANSI No. F109
• Rigid lever
• Latchbolt operated by lever either side except when outside lever is locked by turn-button inside
• When outside lever is locked, latchbolt operated by key outside or turning inside lever
• Inside button must be manually released
• QL12: Storeroom or Closet
• ANSI No. F86
• Rigid lever
• Outside lever always rigid
• Latchbolt operated by key in outside lever, or by turning inside lever
• QL17: Classroom
• ANSI No. F84
• Rigid lever
• Latchbolt operated by lever either side except when key outside locks outside lever
• Inside lever always free
• Key outside locks/unlocks outside lever only
• QL81: Entrance or Office
• ANSI No. F109
• Latchbolt operated by lever either side except when outside lever is locked by turn-button inside
• When outside lever is locked, latchbolt operated by key outside or turning inside lever
• Inside button must be manually released
• QL82: Storeroom or Closet
• ANSI No. F86
• Outside lever always rigid
• Latchbolt operated by key in outside lever, or by turning inside lever
• QL87: Classroom
• ANSI No. F84
• Latchbolt operated by lever either side except when key outside locks outside lever
• Inside lever always free
• Key outside locks/unlocks outside lever only

Double Cylinder Functions:

• QL33: Utility, Asylum, Institutional
• ANSI No. F87
• Rigid lever
• Deadlocking latchbolt operated by key inside or outside
• Handle inside and outside are inoperative at all times
• QL93: Utility, Asylum, Institutional
• ANSI No. F87
• Deadlocking latchbolt operated by key inside or outside
• Handle inside and outside are inoperative at all times
• QL97: Intruder Classroom
• ANSI No. F110
• Deadlocking latch bolt operated by lever from either side
• Key either inside or outside locks or unlocks outside lever
• Inside lever always operates latchbolt

Specifications:

• ANSI/BHMA Code: A156.2
• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2-3/4"
• Cylinder Format: Conventional, small format, large format
• Cylinder Pins: 6 pin
• Door Thickness (Standard): 1-3/4"
• Door Type: Hollow metal, wood
• Handing: Non-handed
• Latchbolt Throw: 1/2"
• Maximum Backset: 2-3/4"
• Minimum Backset: 2-3/4"
• Maximum Door Thickness: 1-3/4"
• Minimum Door Thickness: 1-3/8"
• Number of Keys: 2
• Strike Type: ANSI curved lip
• Warranty: 10-year limited warranty

Finishes:

• 03/605 - Bright brass, clear coated
• 10BE/613E - Dark oxidized satin bronze-equivalent
• 26D/626 - Satin chromium plated over nickel
• BSP - Black suede powder coat, sprayed
