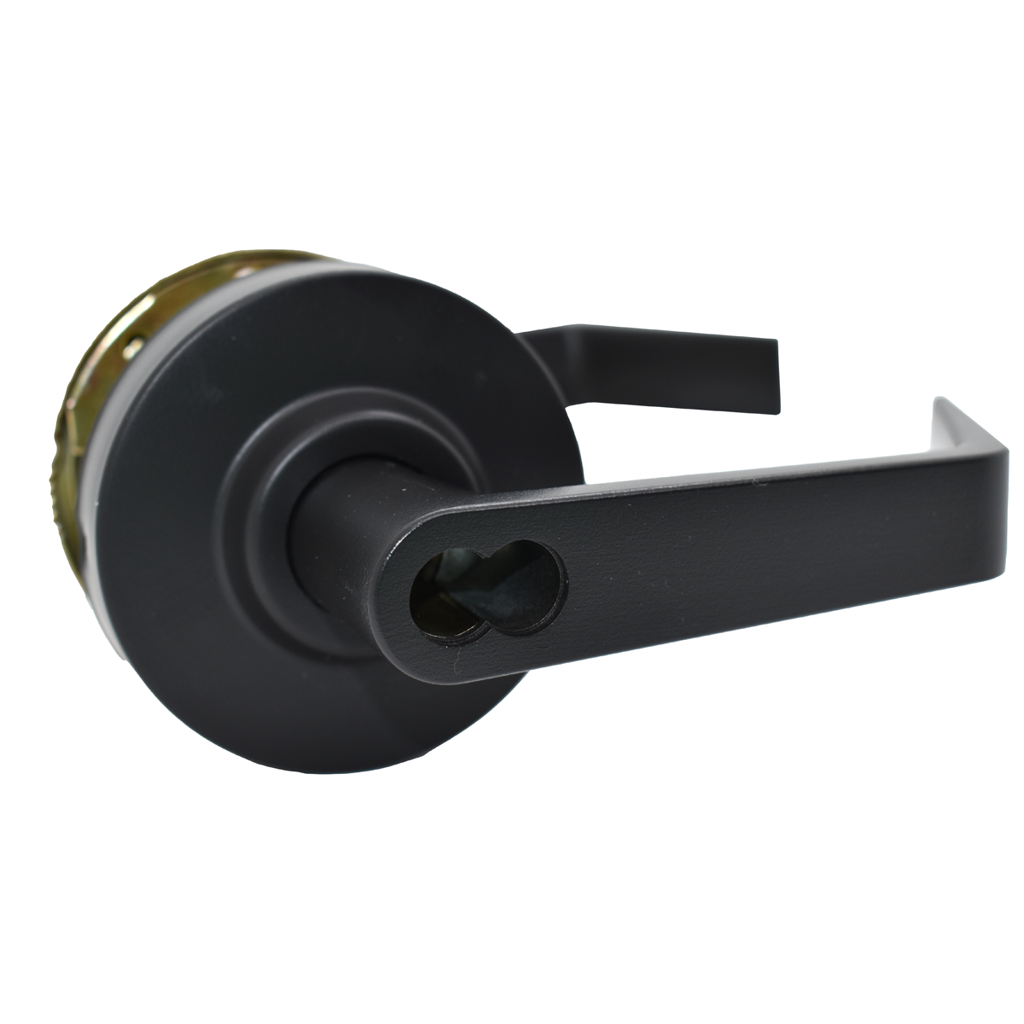

Arrow Lock QL87SR-BSP-IC-2 3/4 BS Classroom Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 1, Black Suede

Arrow Lock Company QL87SR-BSP-IC-2 3/4 BS Classroom Sierra Lever is a Grade 1 lockset designed for robust performance in commercial environments. With its freewheeling lever mechanism, this lockset offers excellent abuse resistance, ensuring longevity and reliability. Installation is a breeze thanks to the two-screw design, while the 10-year mechanical warranty provides peace of mind for building professionals and knowledgeable homeowners alike. This model is ANSI/BHMA A156.2 certified and UL/CUL listed for use on 3-hour A label single swinging doors, meeting stringent safety standards. The QL87SR accommodates standard door preparations with a 2-1/8" bore and is suitable for doors ranging from 1-3/8" to 1-3/4" thick. The stainless steel latch features a 1/2" throw and is guarded for added security. The striking black suede powder coat finish (BSP) not only enhances its aesthetic appeal but also adds an extra layer of durability. This non-handed lever is equipped with a 4-7/8" ANSI strike, ensuring compatibility with various door frames. The lockset comes with two brass keys and is designed for classroom function, allowing free access from the inside while controlling entry from the outside with a key. Upgrade your security with the Arrow Lock QL87SR-BSP-IC-2 Classroom Lever.

Classroom Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 1, 622/US19/BSP Black Suede Powder Coat

QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Features:

• ANSI/BHMA A156.2, Series 4000, Grade 1.
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C.
• ANSI A117.1 Accessibility Code.
• California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
• ADA/Americans with Disabilities Act: Acceptable Door Hardware: Section 4.13.9.

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking Functions.
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (121mm) in length. QL Roses are wrought brass 3-11/32" (85mm) diameter. Total projection from face of door is 2-17/32" (65mm).
• Freewheeling Lever.
• Handing: Non-handed.
• Strike: 4-7/8" ANSI (124mm).
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).
• Keys: 2 brass keys.
• Design: Sierra (SB).
• Installation: 161 prep for retrofit and secure installation.
• Warranty: Ten Year Warranty.

Function:

• QL01 Passage: Latchbolt operated by lever either side.
• QL02 Privacy:Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch.
• QL72 Privacy: Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch
• QL81 Entrance:Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
• QL82 Storeroom: Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.
• QL87 Classroom: Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks out-side lever only.
• QL97 Intruder Classroom: Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.

Accessories:

• Q73: Spring Latch: 2-3/4" Backset. 1/2" Throw.
• Q71: Dead Latch: 2-3/4" Backset. 1/2" Throw.
• 306: ANSI 115.2 Strike Standard with QL Series.

Finishes:

• 605/US3 - Bright Brass
• 613e/US10BE - Dark Oxide Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated
