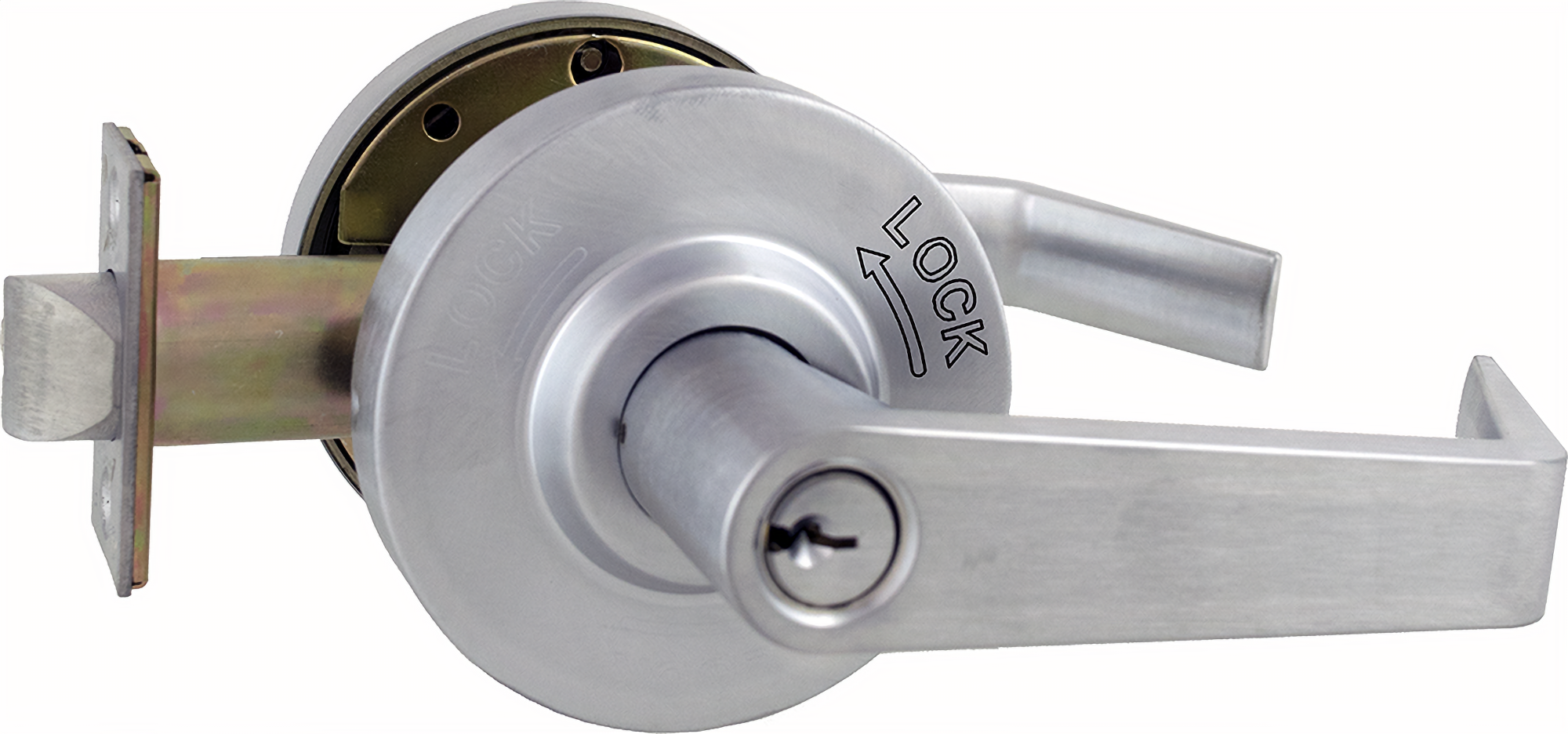

Arrow Lock QL97SR26D-CS-2 3/4 BS Classroom Security Sierra, Schlage C Keyway, Grade 1, Satin Chrome, 2-3/4in

Arrow Lock Company QL97SR26D-CS-2 3/4 BS Classroom Security lever lockset is engineered for high-performance security in commercial settings. This Grade 1 lockset features a robust Freewheeling Lever design, providing exceptional resistance against abuse and wear. With a 10-year mechanical warranty, it offers peace of mind alongside its durable construction. Designed for easy installation, the QL97SR lockset requires only a standard 2-1/8" bore and is compatible with doors measuring 1-3/8" to 1-3/4" thick. Its 2-3/4" backset accommodates a variety of applications, making it versatile for most classroom environments. The stainless steel latchbolt ensures reliable operation and security, while the satin chrome finish (626/US26D) adds a sleek, modern touch. This lockset is UL and CUL listed for use on 3-hour rated single swinging doors and complies with the ANSI A117.1 Accessibility Code, ensuring it meets safety standards for all users. The non-handed design allows for flexible installation, and the solid brass, 6-pin cylinder provides keyed different functionality. Ideal for classroom settings, the QL97 features a deadlocking latch bolt, allowing for key access from both sides while maintaining free access from the inside. Upgrade your security with the Arrow Lock Company QL97SR26D-CS-2 lockset, combining durability, functionality, and style.

Classroom Security Sierra, Schlage C Keyway, 2-3/4in Backset, Grade 1, 626/US26D Satin Chrome

QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Features:

• ANSI/BHMA A156.2, Series 4000, Grade 1.
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C.
• ANSI A117.1 Accessibility Code.
• California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
• ADA/Americans with Disabilities Act: Acceptable Door Hardware: Section 4.13.9.

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking Functions.
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (121mm) in length. QL Roses are wrought brass 3-11/32" (85mm) diameter. Total projection from face of door is 2-17/32" (65mm).
• Freewheeling Lever.
• Handing: Non-handed.
• Strike: 4-7/8" ANSI (124mm).
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).
• Keys: 2 brass keys.
• Design: Sierra (SB).
• Installation: 161 prep for retrofit and secure installation.
• Warranty: Ten Year Warranty.

Function:

• QL01 Passage: Latchbolt operated by lever either side.
• QL02 Privacy:Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch.
• QL72 Privacy: Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch
• QL81 Entrance:Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
• QL82 Storeroom: Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.
• QL87 Classroom: Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks out-side lever only.
• QL97 Intruder Classroom: Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.

Accessories:

• Q73: Spring Latch: 2-3/4" Backset. 1/2" Throw.
• Q71: Dead Latch: 2-3/4" Backset. 1/2" Throw.
• 306: ANSI 115.2 Strike Standard with QL Series.

Finishes:

• 605/US3 - Bright Brass
• 613e/US10BE - Dark Oxide Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated

Resources

• Cut Sheet
