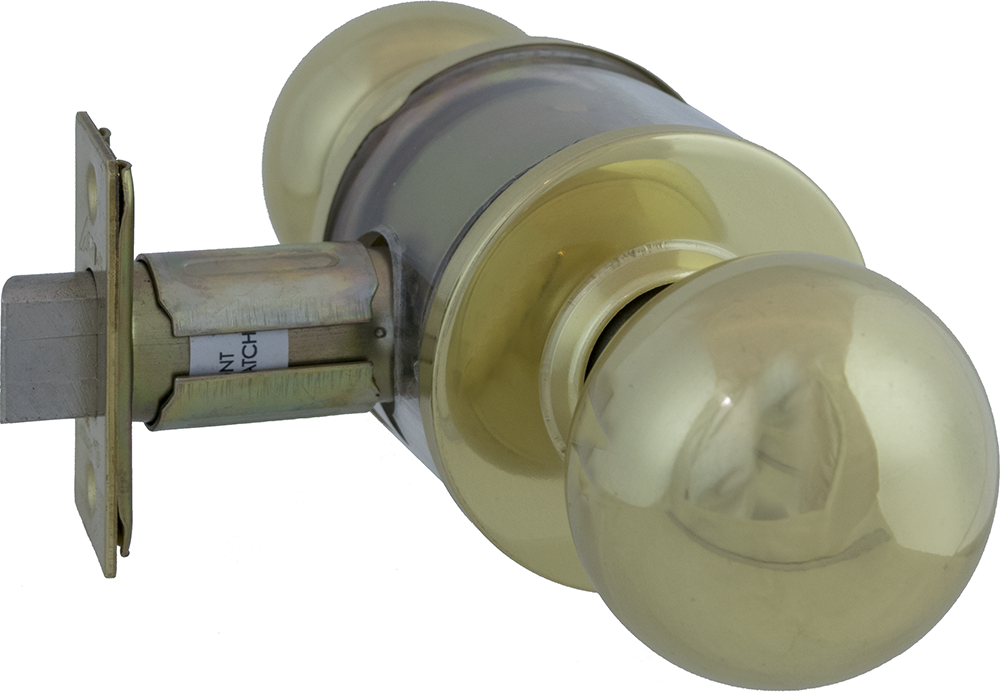

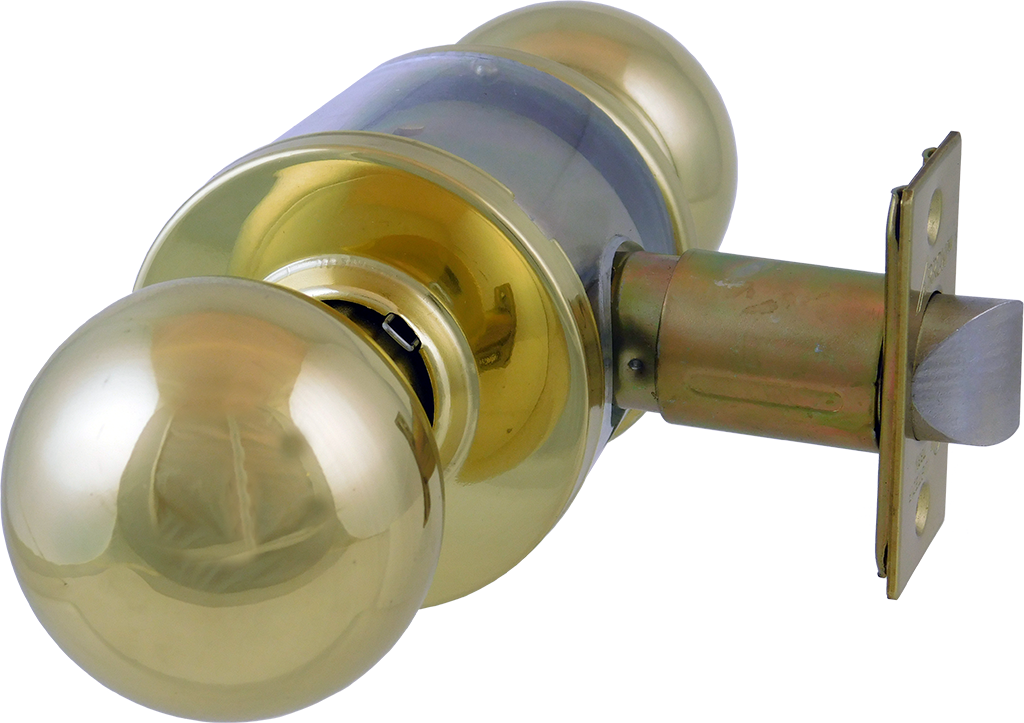

Arrow Lock RK01BD03-2 3/4 BS Passage Ball Knob, 2-3/4in Backset, Grade 2, 605/US3 Bright Brass

Arrow Lock Company RK01BD03-2 3/4 BS Passage Ball Knob is an ideal choice for both multi-family housing and light commercial applications, delivering an economical yet robust locking solution. Designed with a 2-3/4 inch backset, this Grade 2 cylindrical lockset is constructed from cold-rolled steel, featuring a zinc dichromate finish that ensures resistance to corrosion. This versatile lockset accommodates door thicknesses ranging from 1-3/8 inches to 1-3/4 inches and requires a standard 1-1/8 inch bore for installation. The latch features a 1/2 inch throw and is UL Listed, adding an extra layer of security with its guarded latchbolt. The RK01BD03-2 includes a 4-7/8 inch ANSI strike and offers a non-handed design for easy installation. With a solid brass 6-pin cylinder, it accepts interchangeable cores that are compatible with various brands, allowing for flexible key management. Each lockset comes with two brass keys, ensuring easy access while maintaining security. This model meets the requirements of ANSI, A156.2, Series 4000, Grade 2, and is UL Listed for use on 3-hour, A label single swinging doors, making it a reliable choice for your locking needs. Enhance your security with the Arrow Lock Company RK01BD03-2, where quality meets value.

Passage Ball Knob, 2-3/4in Backset, Grade 2, 605/US3 Bright Brass

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Features:

• Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.
• Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch: 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking Functions
• Latch Front:*
• 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
• 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim:
• RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm). RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length.
• RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder:
• Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional.
• Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core.
• Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.
• Keys: 2 brass keys
• Handing: Non-handed
• Certification: The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.

Series Functions:

• RK01 Passage
• RK02 Privacy
• RK08 Half Dummy Trim
• RK11 Entrance
• RK12 Storeroom
• RK17 Classroom

Finishes:

• US3
• US4
• US10
• US10B
• US32
• US32D
