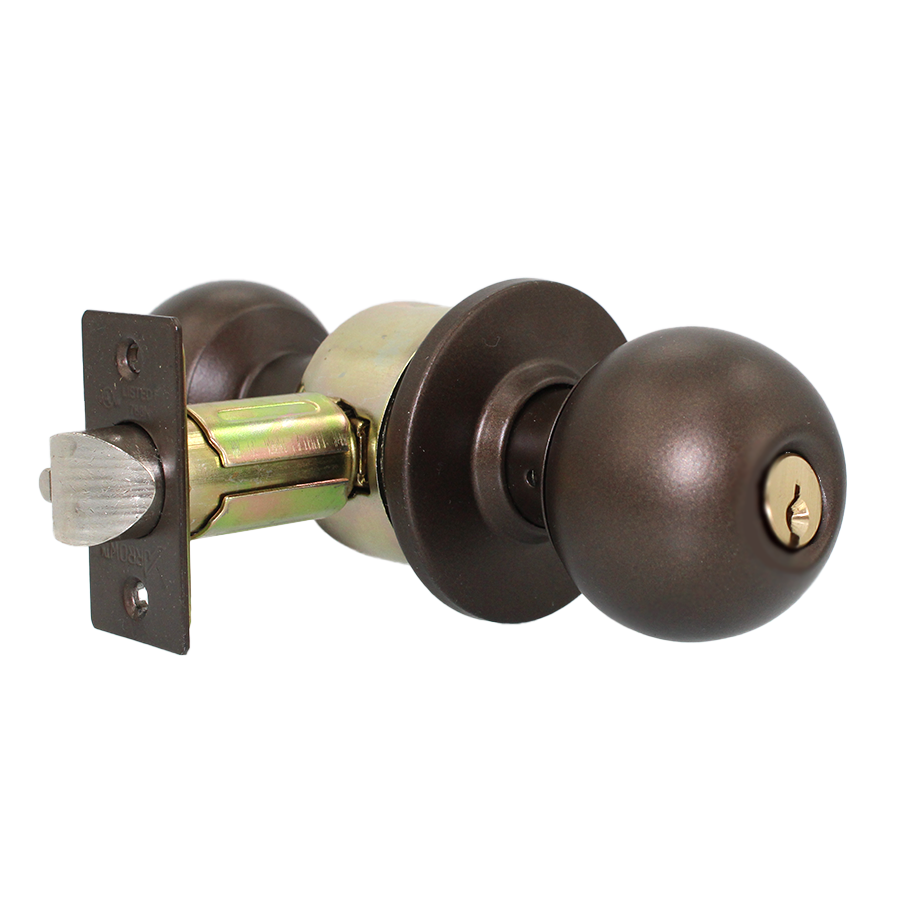

Arrow Lock RK11BD613E-CS-2 3/4 BS Schlage Entry Ball Knob, C Keyway, 2-3/4" Backset, Oil Rubbed Bronze

Arrow Lock Company RK11BD613E-CS-2 3/4 BS Entry Ball Knob offers a robust and economical locking solution ideal for multi-family housing and light commercial applications. Designed with a Schlage C keyway, this cylindrical lockset features a 2-3/4 inch backset, ensuring compatibility with a variety of door types. Constructed from cold rolled steel and finished with a zinc dichromate coating, the RK11BD is built for durability and corrosion resistance. It fits doors ranging from 1-3/8 inches to 1-3/4 inches thick and requires a standard 2-1/8 inch bore. The latch mechanism boasts a 1/2 inch throw and is UL Listed for superior security. With non-handed functionality, it simplifies installation on either left or right-handed doors. The exposed trim is available in either brass or stainless steel, with decorative roses measuring 2-1/2 inches in diameter. The RK11BD also includes a 4-7/8 inch ANSI strike plate to enhance its security features. Backed by a 5-year limited warranty, this lockset can easily integrate into new or existing master key systems, making it a versatile choice for your security needs.

Entry Ball Knob, Schlage C Keyway, 2-3/4in Backset, 613E/US10BE Oil Rubbed Bronze

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Features:

• Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (54mm) bore through door.
• Backset: 2-3/8" (60mm) or 2-3/4" (70mm).
• Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
• Latch: Brass 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking functions.
• Latch Front: 1" x 2-1/4" (25mm x 57mm) for 2-3/8" backset (60mm) or 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
• Exposed Trim: Brass or stainless steel. Roses are 2-1/2" (64mm) diameter. Total projection from face of door is 2-3/4" (70mm).
• Strike: 4-7/8" ANSI (124mm), 2-3/4" (70mm) T strike, or 2-1/4" (57mm) full lip strike.
• Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small format interchangeable.
• Handing: Non-handed.
• Thru-bolts: Removable thru-bolts standard on RL Series.
• Economical value for a variety of applications.
• Easily keys into new or existing Arrow or competitive master key systems.

Specifications:

• ANSI/BHMA Code: A156.2
• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2 19/50"
• Cylinder Format: Conventional, Small Format
• Cylinder Pins: 6 pin
• Door Type: Hollow Metal, Wood
• Number of Keys: 2
• Warranty: 5-year limited warranty

Functions:

• Non-Cylinder RK01: Passage, Closet
• ANSI No. F75
• Latchbolt operated by knob either side
• Non-Cylinder RK02: Privacy Bath/Bedroom
• ANSI No. F76A
• Latch operated by knob either side except when outside knob is locked by pushing inside button
• Outside knob unlocked by turning inside knob, using emergency key, or closing door
• Inside knob always operates latch
• Non-Cylinder RK08: Single Dummy Trim
• ANSI No. N/A
• Rigid trim for one side of door only
• Used as pull or to match active trim
• Single Cylinder RK11: Entrance or Office
• ANSI No. F109
• Latchbolt operated by knob either side except when outside knob is locked by turn-button inside
• When outside knob is locked, latchbolt operated by key outside or turning inside knob
• Inside button must be manually released
• Single Cylinder RK12: Storeroom or Closet
• ANSI No. F86
• Outside knob always rigid
• Latchbolt operated by key in outside knob, or by turning inside knob
• Single Cylinder RK17: Classroom
• ANSI No. F84
• Latchbolt operated by knob either side except when key outside locks outside knob
• Inside knob always free
• Key outside locks/unlocks outside knob only

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 613/US10B - Dark Oxide Bronze, Oil Rubbed
• 629/US32 - Bright Stainless Stee
• 630/US32D - Satin Stainless Steel
