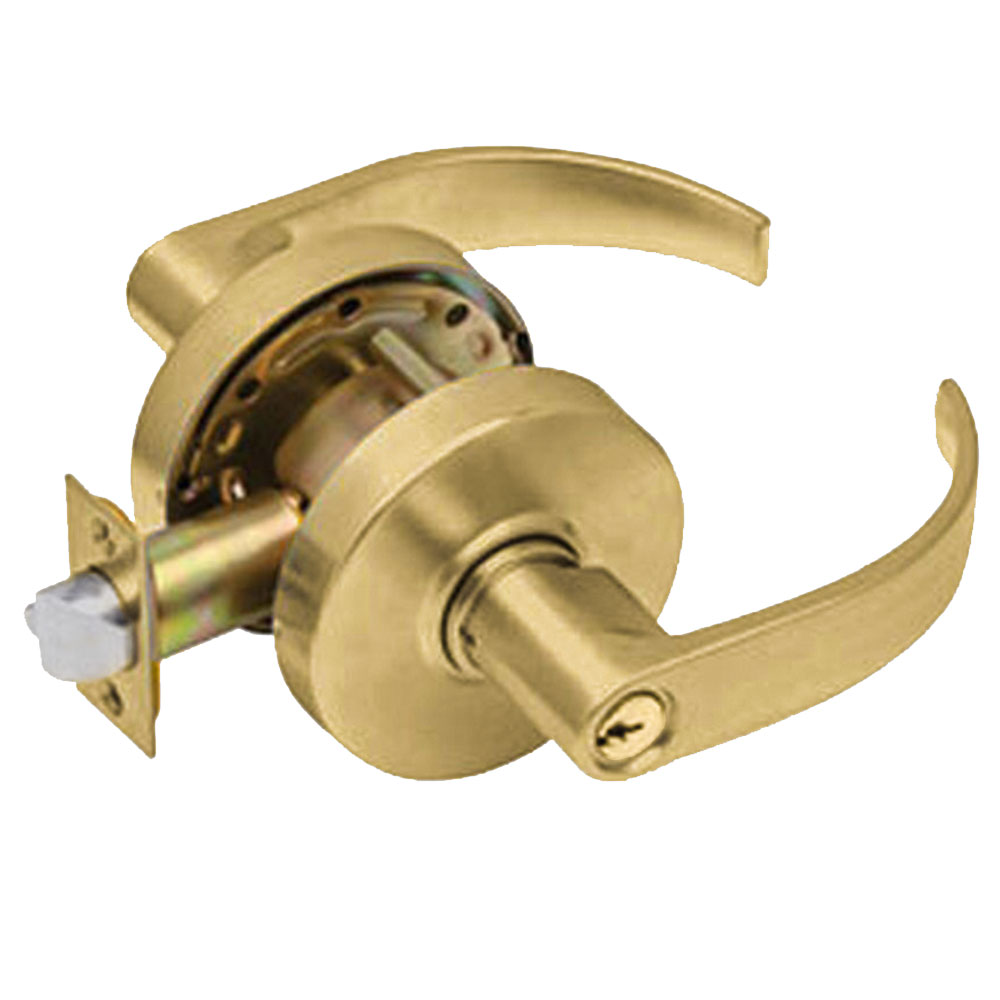

Arrow Lock RL11-BRR-04 Grade 2 Entrance Lock

Arrow RL11-BRR-04 Grade 2 Entrance Lock offers a reliable and stylish solution for your locking needs. This turn-pushbutton cylindrical lock features a Broadway lever design and is finished in satin brass for a classic look that complements various settings. Engineered for durability, the lock is constructed from cold rolled steel with a zinc dichromate finish, ensuring resistance to corrosion. Designed to fit standard door thicknesses of 1-3/8" to 1-3/4", the RL Series accommodates both 2-3/8" and 2-3/4" backsets, making it versatile for different applications, especially in multi-family housing and light commercial environments. The 1/2" throw brass latch is UL listed and features a guarded latchbolt for enhanced security. With removable through bolts for easy installation and maintenance, this lockset simplifies your workflow. The solid brass 6-pin cylinder comes standard with Arrow's "A" keyway, while two brass keys are included for convenience. Backed by a five-year mechanical warranty, the RL11-BRR-04 ensures peace of mind for both professionals and homeowners alike. Whether you're upgrading existing hardware or outfitting a new build, the Arrow RL11-BRR-04 Grade 2 Entrance Lock is a smart choice that combines functionality with aesthetic appeal.

Grade 2 Entrance Lock

Grade 2 Turn-Pushbutton Entrance Cylindrical Lock, Broadway Lever, Conventional Cylinder, Satin Brass Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty
