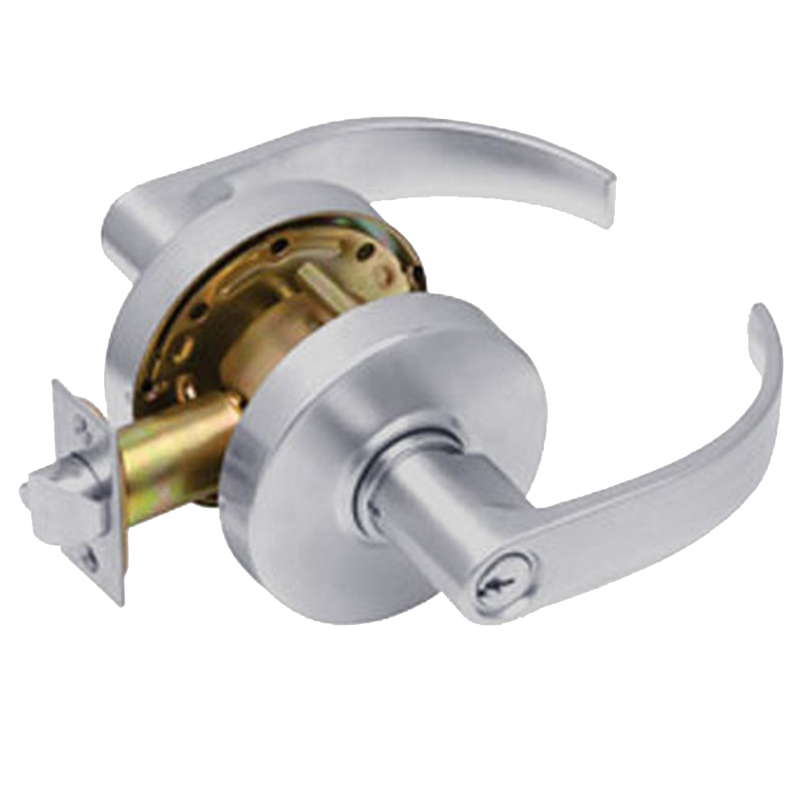

Arrow Lock RL11-BRR-26D Grade 2 Entrance Lock

Arrow RL11-BRR-26D Grade 2 Entrance Lock combines security and style with its robust design and functional features. This Grade 2 cylindrical lockset is equipped with a turn-pushbutton mechanism and a Broadway lever, making it an excellent choice for both multi-family housing and light commercial applications. The lock is constructed from cold-rolled steel with a corrosion-resistant zinc dichromate finish, ensuring durability over time. Designed for doors with a thickness of 1-3/8" to 1-3/4", the RL11-BRR-26D is versatile in installation, fitting standard 2-1/8" bore sizes. The brass latch features a 1/2" throw and is UL listed, further enhancing its reliability. With non-handed functionality, it can be installed on either side of the door, and the removable through bolts simplify installation and maintenance. In addition to its practical construction, this lockset offers a solid brass 6-pin cylinder with the standard Arrow "A" keyway, and it comes with two brass keys. The RL Series is backed by a five-year mechanical warranty, ensuring peace of mind for users. With its stylish satin chrome finish and sturdy design, the Arrow RL11-BRR-26D is the ideal solution for securing entrances while complementing your property's aesthetic.

Grade 2 Entrance Lock

Grade 2 Turn-Pushbutton Entrance Cylindrical Lock, Broadway Lever, Conventional Cylinder, Satin Chrome Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty
