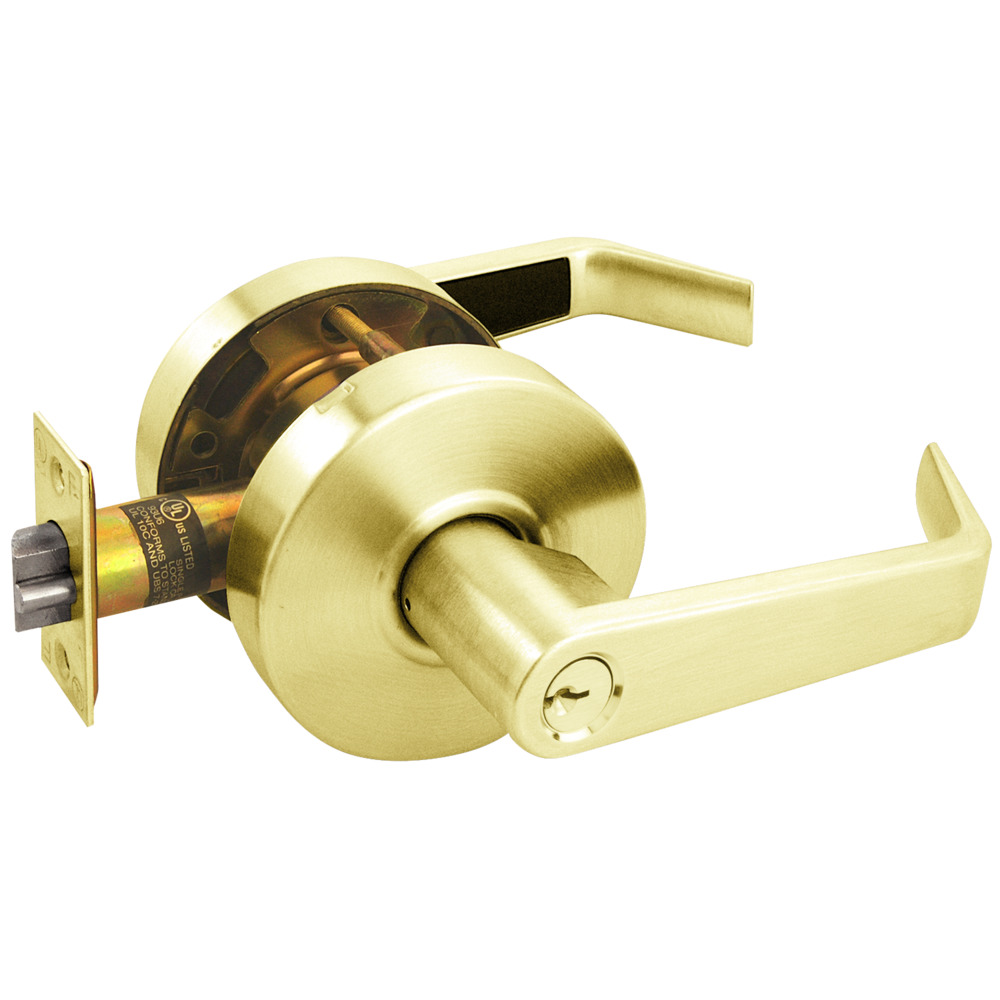

Arrow Lock RL11-SR-03 Grade 2 Entrance Lever Handle

Arrow RL11-SR-03 Grade 2 Entrance Lever offers a robust and reliable solution for your access control needs. Designed with versatility in mind, this Grade 2 turn-pushbutton entrance cylindrical lock features the elegant Sierra lever, making it an excellent choice for both multi-family housing and light commercial applications. Constructed from cold-rolled steel with a corrosion-resistant zinc dichromate finish, the RL series ensures durability and longevity. It accommodates standard door thicknesses ranging from 1-3/8" to 1-3/4" and is available with either a 2-3/8" or 2-3/4" backset, making installation straightforward. The lock is equipped with a solid brass, UL-listed 1/2" throw latchbolt, providing enhanced security for your premises. With removable through bolts and a variety of design options, the RL11-SR-03 combines functionality with aesthetic appeal. The pressure-cast zinc levers and wrought brass roses not only enhance the lock's visual appeal but also ensure ease of use. Additionally, it features a solid brass 6-pin conventional cylinder with Arrow's "A" keyway, allowing for flexibility in key compatibility. Backed by a five-year mechanical warranty, this entrance lever is a smart investment for any property.

Grade 2 Entrance Lever

Grade 2 Turn-Pushbutton Entrance Cylindrical Lock, Sierra Lever, Conventional Cylinder, Bright Brass Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty

Resources

• Arrow RL Series Catalog
• RK & RL Series Template
• RL Series Grade 2 Cylindrical Lever Locks Cut Sheet
• RL Series Instructions
• Video: How to Install a Commercial Lever
