Arrow Lock RL11-SR-04-IC Grade 2 Entrance Lever Lock

Arrow Lock RL11-SR-04-IC Grade 2 Entrance Lever offers a robust solution for both multi-family housing and light commercial applications. This Grade 2 Turn-Pushbutton cylindrical lock features the elegant Sierra lever design and is finished in a sophisticated satin brass. The lock's non-handed configuration allows for versatile installation, fitting standard door thicknesses of 1-3/8" to 1-3/4". Constructed from cold-rolled steel with a corrosion-resistant zinc dichromate finish, the RL11-SR-04-IC ensures durability and longevity. It accommodates a standard 2-1/8" bore and offers a choice of backsets at 2-3/8" or 2-3/4". The UL-listed brass latch with a 1/2" throw guarantees secure locking, while the removable through bolts simplify installation and maintenance. With a solid brass 6-pin cylinder featuring the Arrow "A" keyway, this lock provides reliable access control. It includes two brass keys and is packaged conveniently with ten units per case, making it an economical choice for contractors. Backed by a five-year mechanical warranty, the Arrow RL11-SR-04-IC combines practical functionality with a stylish design, ensuring security without compromising aesthetics.

Grade 2 Entrance Lever

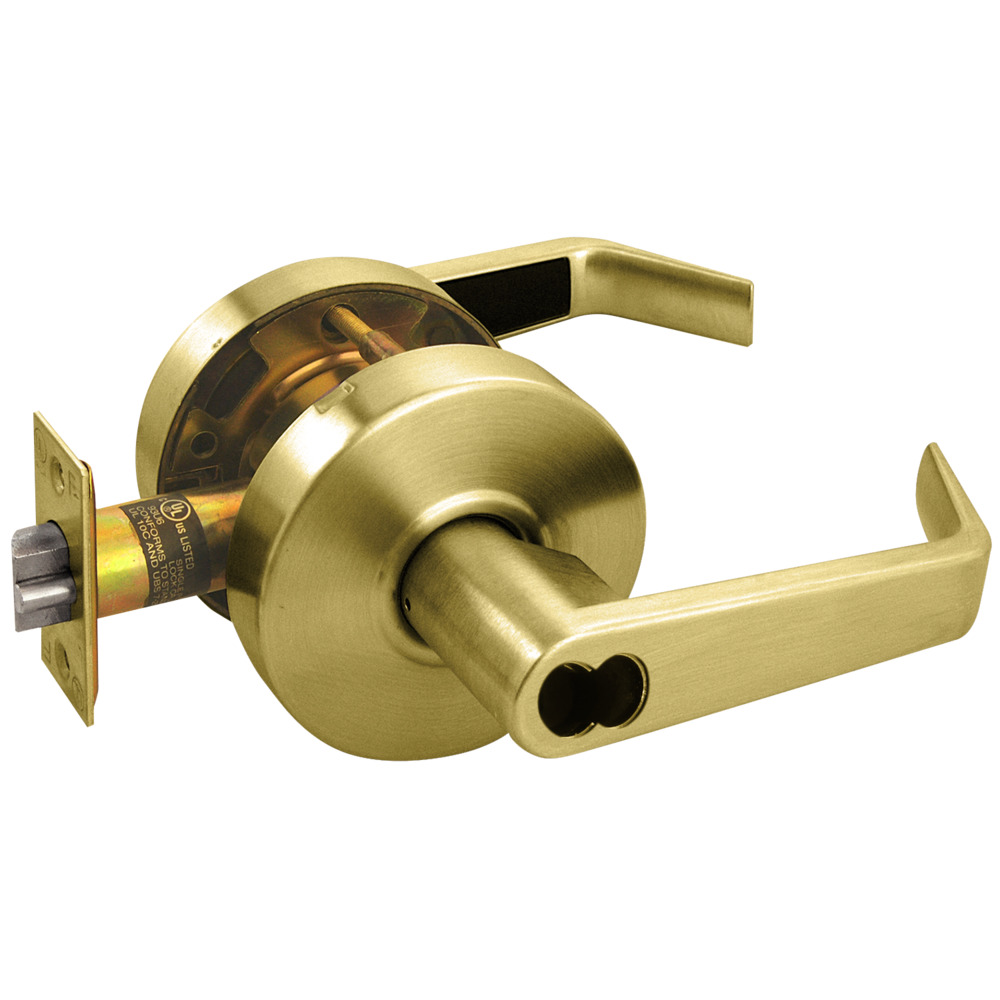

Grade 2 Turn-Pushbutton Entrance Cylindrical Lock, Sierra Lever, SFIC Less Core, Satin Brass Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty
