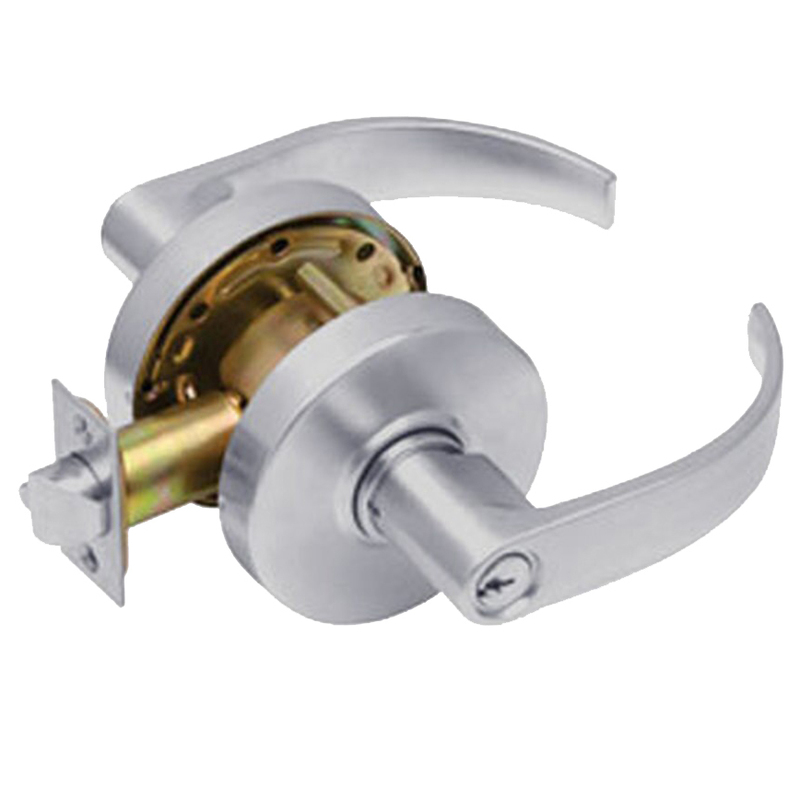

Arrow Lock RL12-BRR-26D Grade 2 Storeroom Lock

Arrow RL12-BRR-26D Grade 2 Storeroom Lock combines functionality and style, making it an ideal choice for commercial and multi-family residential applications. Featuring a Broadway lever design and a sleek satin chrome finish, this Grade 2 cylindrical lock not only enhances the aesthetic appeal of your doors but also offers reliable security. Designed for versatility, the RL Series includes removable through bolts for easy installation and maintenance. It accommodates standard door thicknesses from 1-3/8 inches to 1-3/4 inches, with a backset option of 2-3/8 inches or 2-3/4 inches. The solid brass latch boasts a 1/2-inch throw and features a UL-listed guarded latchbolt, ensuring robust performance across all locking functions. This non-handed lock is equipped with a conventional cylinder and comes with two brass keys, providing convenience without compromising security. The lock's exposed trim consists of pressure cast zinc levers and wrought brass roses, ensuring durability while maintaining a sophisticated look. With a fire rating of 3 hours and compliance with ANSI A156.2 Series 4000 standards, the Arrow RL12-BRR-26D offers peace of mind in safety and reliability, backed by a five-year mechanical warranty. Elevate your door security with this practical and stylish locking solution.

Grade 2 Storeroom Lock

Grade 2 Storeroom Cylindrical Lock, Broadway Lever, Conventional Cylinder, Satin Chrome Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty
