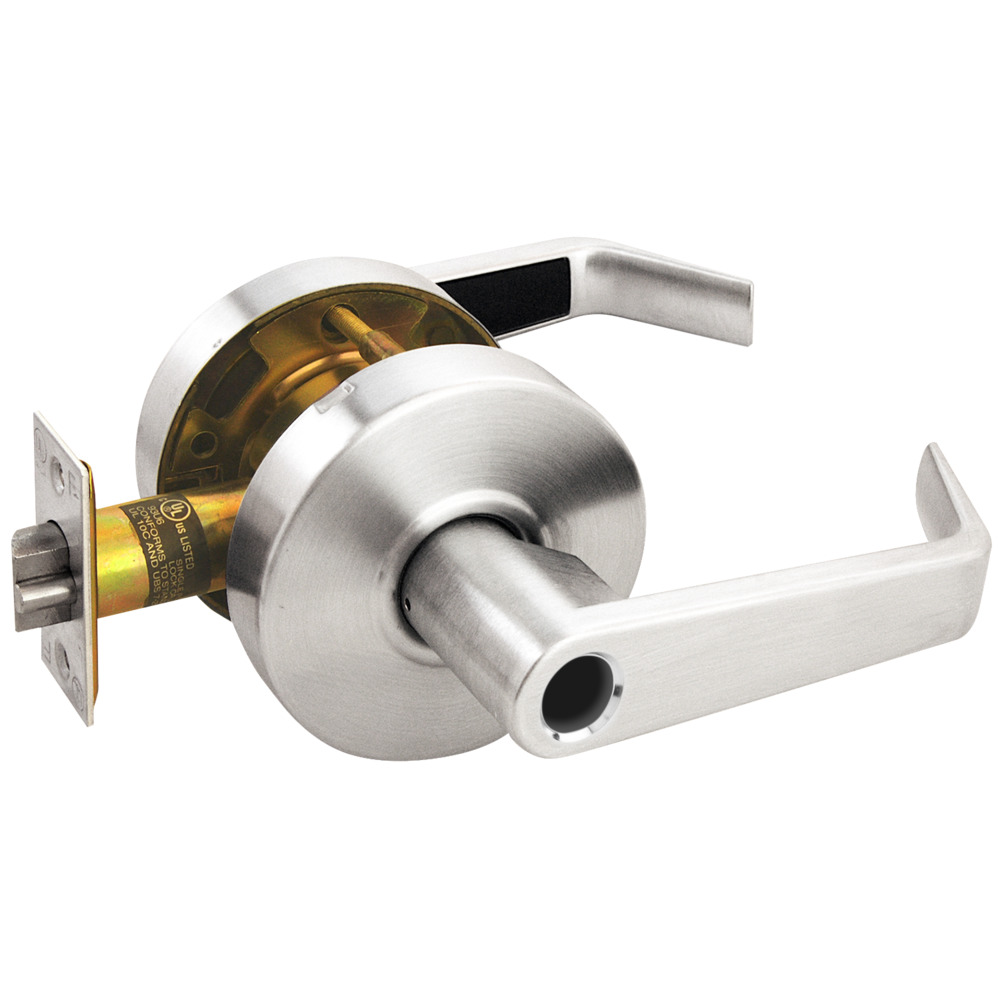

Arrow Lock RL12-SR-26-LC Grade 2 Storeroom Lever Lock

Arrow RL12-SR-26-LC Grade 2 Storeroom Lever offers a reliable and secure locking solution tailored for both multi-family housing and light commercial applications. Designed with a Sierra lever and finished in bright chrome, this Grade 2 cylindrical lock features a conventional less cylinder setup, making it versatile for various security needs. Constructed from cold-rolled steel with a zinc dichromate finish, the RL12-SR-26-LC ensures durability and corrosion resistance. It fits standard door thicknesses of 1-3/8" to 1-3/4", and its adjustable backset options of 2-3/8" or 2-3/4" provide added flexibility during installation. The 1/2" throw brass latch is UL Listed and features a guarded latchbolt for enhanced security. This non-handed lockset includes removable through bolts, simplifying installation and maintenance. The pressure cast zinc lever measures 4-3/4" in length, while the 3-3/8" diameter wrought brass rose adds an elegant touch. With a standard solid brass 6-pin cylinder, the Arrow RL12-SR-26-LC comes with two brass keys, ensuring ease of use and access. Backed by a five-year mechanical warranty, this lockset is built to stand the test of time, making it a smart choice for your next project.

Grade 2 Storeroom Lever

Grade 2 Storeroom Cylindrical Lock, Sierra Lever, Conventional Less Cylinder, Bright Chrome Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty
