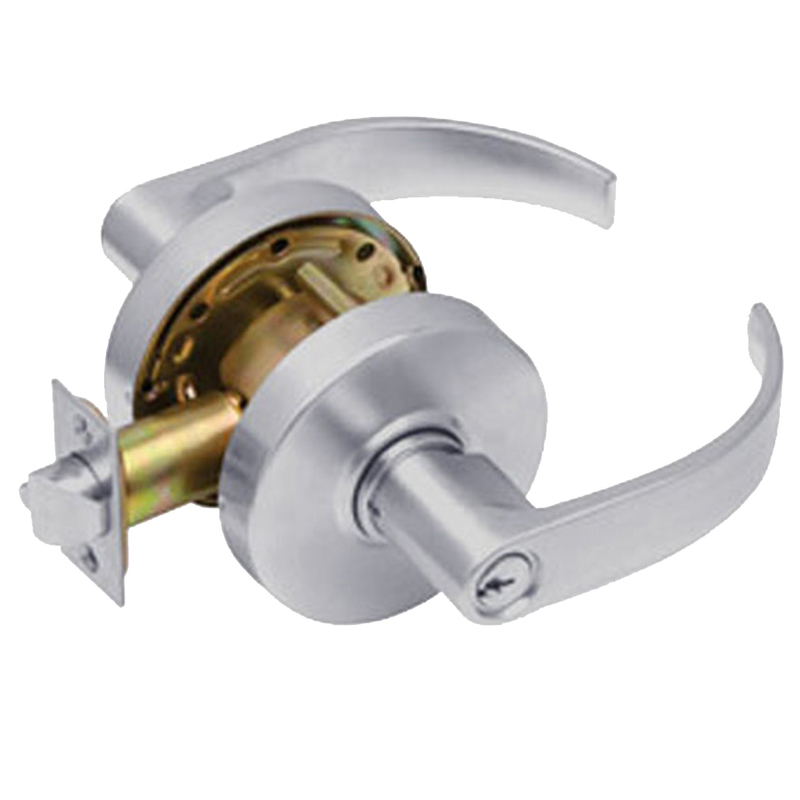

Arrow Lock RL17-BRR-26D Grade 2 Classroom Lock

Arrow RL17-BRR-26D Grade 2 Classroom Lock offers a reliable and versatile locking solution tailored for both multi-family housing and light commercial applications. This cylindrical lock features a Broadway lever design and a durable satin chrome finish, ensuring a blend of style and functionality. Constructed from cold-rolled steel with a zinc dichromate finish, the RL17-BRR-26D provides excellent corrosion resistance, making it ideal for various environments. It fits standard door thicknesses of 1-3/8" to 1-3/4" and is available with a backset of either 2-3/8" or 2-3/4". The solid brass latch features a 1/2" throw and is UL listed for added security. The lock is designed for ease of installation, featuring removable through bolts and a non-handed configuration, making it suitable for any door orientation. With a 6-pin solid brass cylinder and Arrow's "A" keyway, it ensures reliable access control. Additionally, the lock is backed by a five-year mechanical warranty, giving you peace of mind. Whether you're upgrading security or installing new hardware, the Arrow RL17-BRR-26D Grade 2 Classroom Lock is an economical choice that promises durability and performance.

Grade 2 Classroom Lock

Grade 2 Classroom Cylindrical Lock, Broadway Lever, Conventional Cylinder, Satin Chrome Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty
