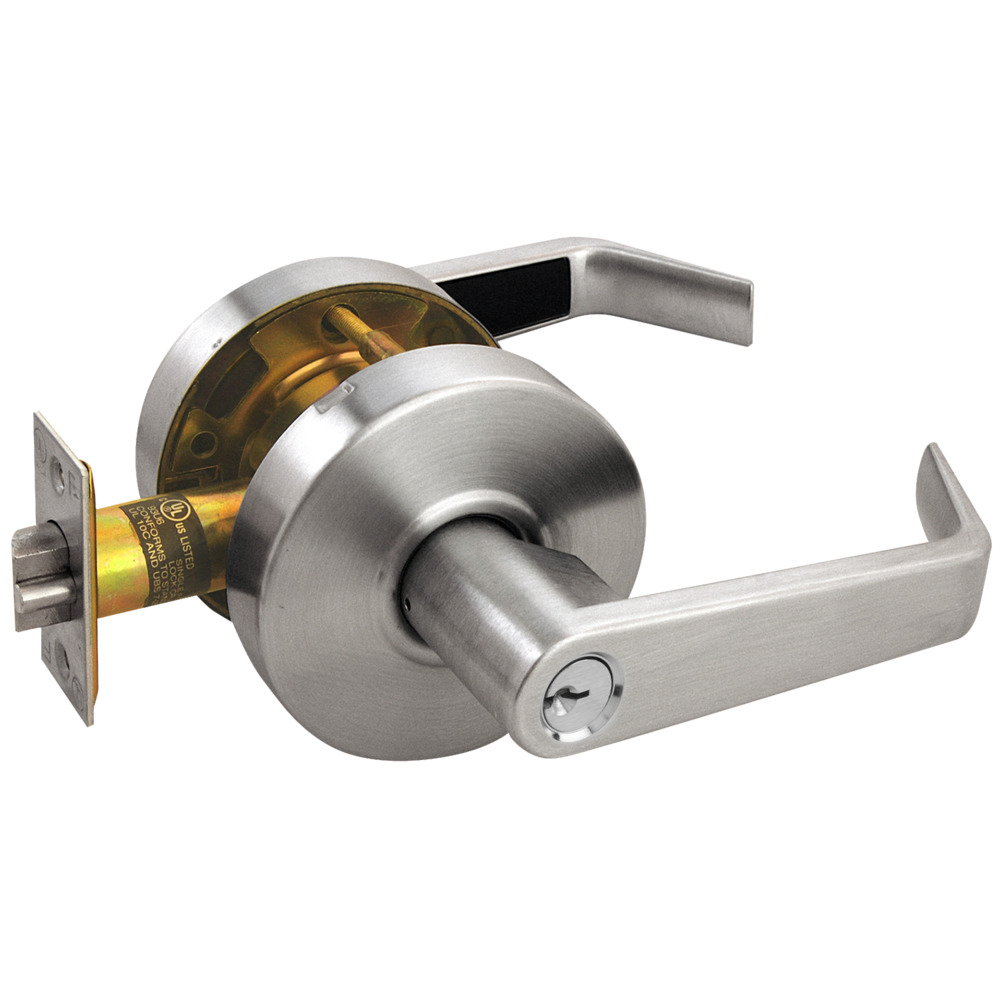

Arrow Lock RL17-SR-26D-CS Grade 2 Classroom Lever Lock

Arrow RL17-SR-26D-CS Grade 2 Classroom Lever is an ideal choice for both multi-family housing and light commercial applications. This Grade 2 cylindrical lock features the elegant Sierra lever design, ensuring a perfect blend of style and functionality. With a durable satin chrome finish, it not only enhances the aesthetics of any door but also offers corrosion resistance, thanks to its cold-rolled steel construction with a zinc dichromate finish. The RL Series is designed for ease of installation and versatility, accommodating doors with a thickness of 1-3/8" to 1-3/4". Featuring a conventional cylinder with a Schlage C keyway, this lockset includes a solid brass 6-pin cylinder and a UL listed, guarded latchbolt for added security. The lockset supports removable through bolts and is non-handed, making it suitable for various door configurations. With a backset of either 2-3/8" or 2-3/4", and an ANSI strike measuring 4-7/8", the RL17-SR-26D-CS is engineered for reliability. It comes with two brass keys and a five-year mechanical warranty, ensuring peace of mind. Elevate your door security with this economical and stylish lockset from Arrow.

Grade 2 Classroom Lever

Grade 2 Classroom Cylindrical Lock, Sierra Lever, Conventional Cylinder Schlage C Keyway, Satin Chrome Finish, Non-handed

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

The RL Series offers removable through bolts and a wide variety of design.

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

• Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
• Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
• Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
• Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
• Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
• Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
• Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
• Keys – 2 brass keys Handing – Non-handed
• Thru-bolts – Removable thru-bolts standard on RL Series
• Packaging – 10 per case
• Warranty – Five Year Mechanical Warranty
