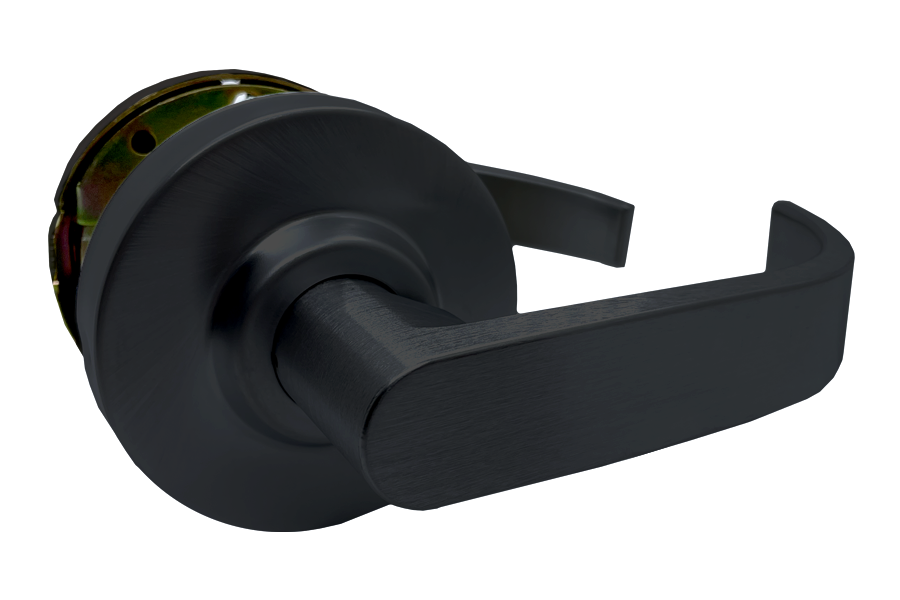

Arrow Lock RLX01BRR-BSP-2 3/4 BS Broadway Passage Lever, 2-3/4" Backset, Grade 2, Black Suede Powder Coat

Arrow Lock Company RLX01BRR-BSP-2 3/4 BS Passage Broadway Lever offers a reliable solution for enhancing security in commercial settings. This robust Grade 2 lockset features a freewheeling lever operation designed to withstand significant wear and tear, making it an ideal choice for high-traffic areas. The RLX Series is a professional replacement product, equipped with removable through bolts and available in a variety of designs and finishes to suit your specific needs. Designed to accommodate door thicknesses from 1-3/8" to 1-3/4" (factory set for 1-3/4"), this lockset is compatible with an ANSI 1-1/4" x 4-7/8" strike for seamless installation. It boasts a 2-3/4" backset latch and comes with a standard 6-pin solid brass cylinder, complete with two nickel-plated brass keys. The RLX01BRR-BSP-2 is non-handed, allowing for versatile application on either side of the door. With a 10-year warranty backing its durability, this lockset not only meets BHMA A156.2, Series 4000, Grade 2, and UL listed certification standards, but it also features an attractive black suede powder coat finish, adding a touch of elegance to any entrance. Upgrade your security with confidence using the Arrow Lock Company RLX01BRR-BSP-2.

Passage Broadway Lever, 2-3/4in Backset, Grade 2, 622/US19/BSP Black Suede Powder Coat

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
