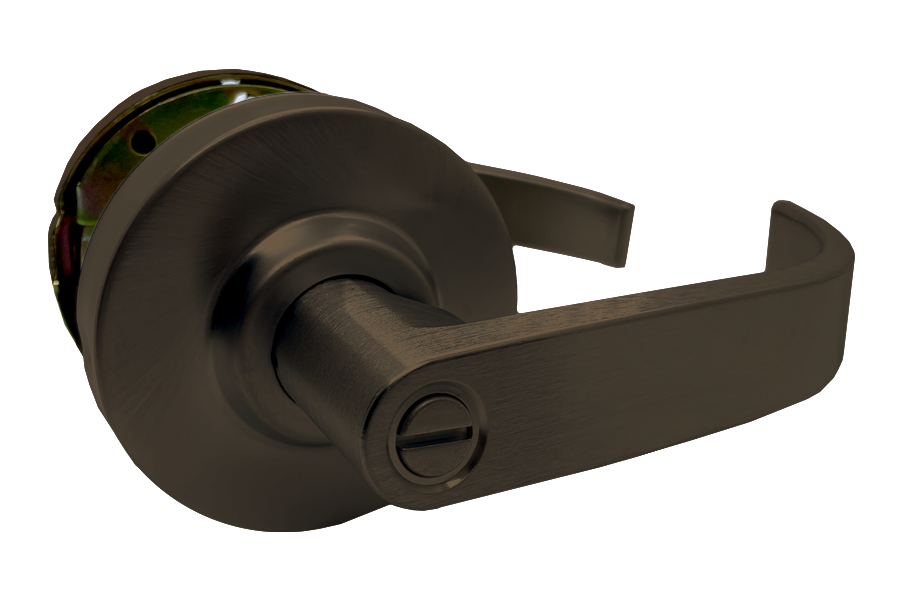

Arrow Lock RLX02BRR613E-2 3/4 BS Broadway Privacy Lever, 2-3/4in Backset, Grade 2, Oil Rubbed Bronze

Arrow Lock Company RLX02BRR613E-2 3/4 BS Privacy Rigid Broadway Lever is a robust and reliable lockset designed for commercial applications. Crafted to meet BHMA A156.2, Series 4000, Grade 2, and UL Listed standards, this lockset ensures security without compromising on style. The dark oxide satin bronze finish not only enhances its aesthetic appeal but also provides durability against wear and tear. Featuring a freewheeling lever action, the RLX02BRR offers an added layer of resistance to abuse, making it an excellent choice for high-traffic areas. This lock is versatile, fitting door thicknesses ranging from 1-3/8" to 1-3/4", and is factory set for 1-3/4". The 2-3/4" backset latch and ANSI strike of 1-1/4" x 4-7/8" ensure a secure fit and function. Equipped with a standard 6-pin solid brass cylinder and two nickel-plated keys, it promises reliable access control. The non-handed design simplifies installation, while the 10-year warranty assures peace of mind. With a case quantity of six and an average weight of 26 lbs, the RLX02BRR is perfect for professionals looking to upgrade or replace existing locksets. Choose Arrow Lock for security solutions that combine performance and elegance.

Privacy Rigid Broadway Lever, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
