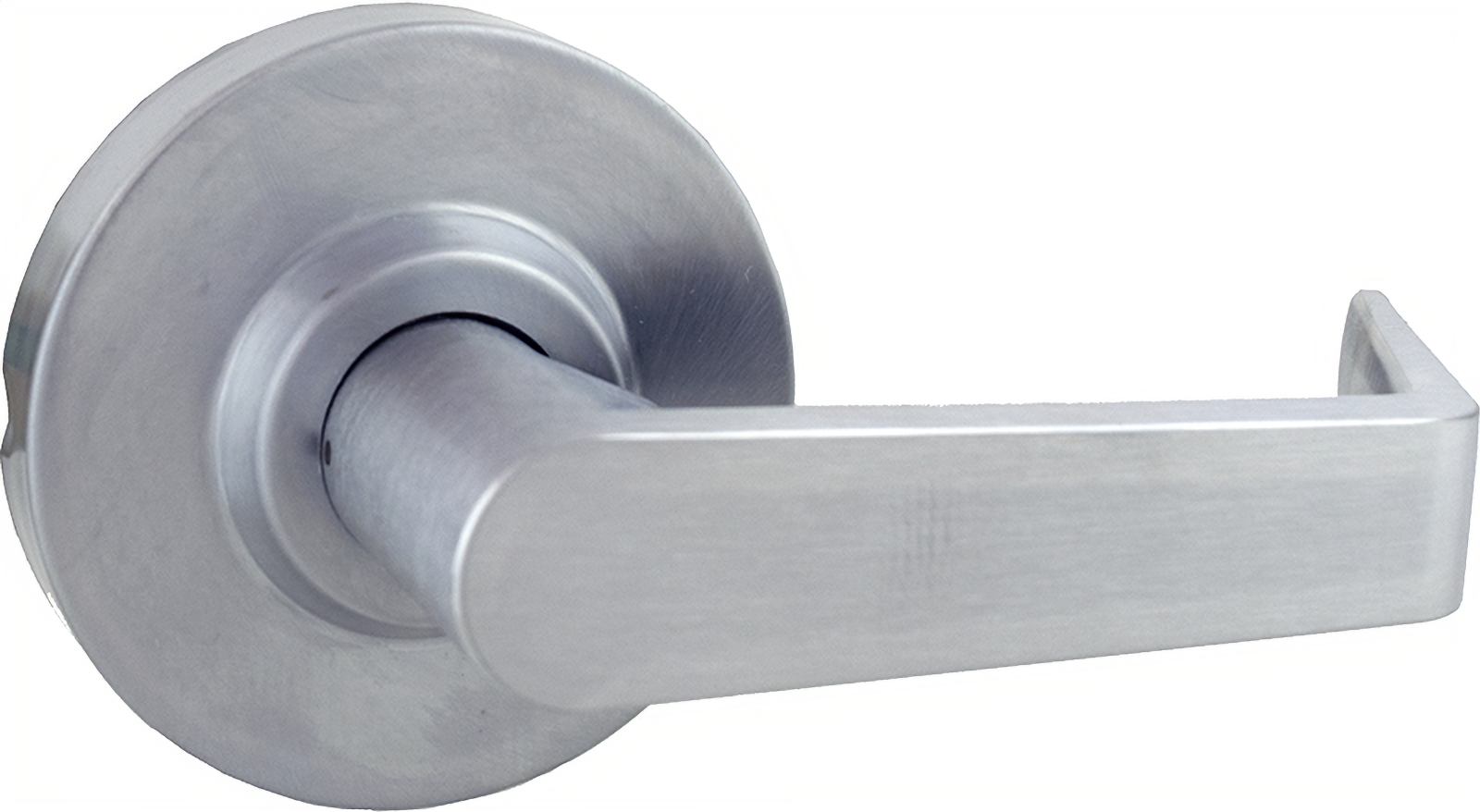

Arrow Lock RLX08SR-26D Single Dummy Trim Sierra, Grade 2, 626/US26D Satin Chrome

Arrow Lock Company RLX08SR-26D Single Dummy Trim Sierra in Satin Chrome offers an exceptional blend of style and durability for commercial applications. This Grade 2 lockset features a freewheeling lever action, enhancing its resistance to wear and abuse, making it an ideal choice for high-traffic environments. Designed to fit door thicknesses ranging from 1-3/8" to 1-3/4", the RLX08SR-26D is factory set for 1-3/4" doors, ensuring a secure and precise fit. The ANSI 1-1/4" x 4-7/8" strike and 2-3/4" backset latch enhance its reliability. Its non-handed design allows for easy installation on either left or right-handed doors, providing flexibility in various settings. This model features a solid brass 6-pin cylinder, complete with two nickel-plated brass keys, ensuring robust security. The RLX Series also boasts UL Listing and BHMA A156.2 certification, assuring users of its quality and performance standards. Available in a sophisticated satin chrome finish (26D), the RLX08SR-26D not only serves as a practical solution but also adds a polished look to any door. With a ten-year warranty, you can trust in its longevity and durability for years to come. Ideal for those looking to upgrade their security hardware, the Arrow Lock Company RLX08SR-26D is a reliable choice for professional-grade applications.

Single Dummy Trim Sierra, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
