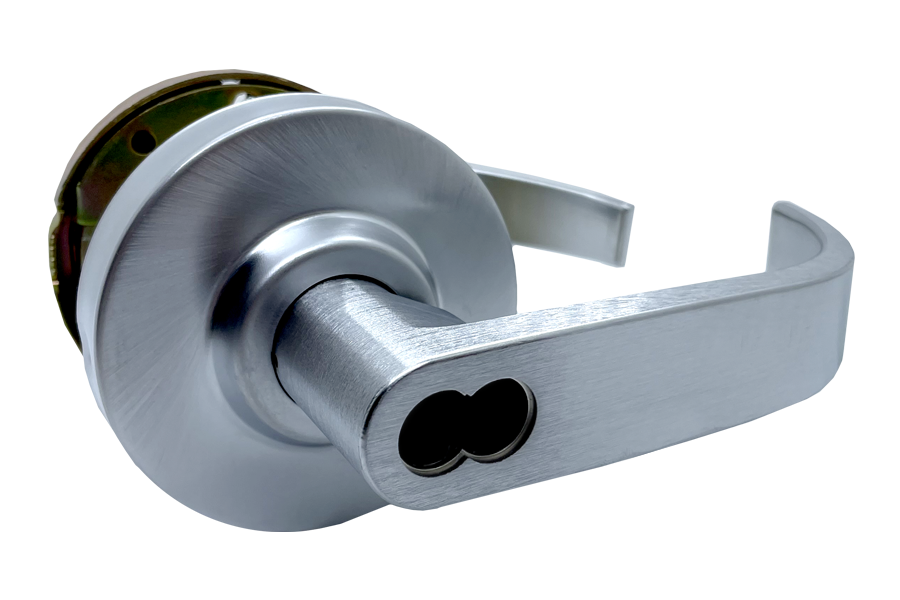

Arrow Lock RLX11BRR26D-IC-2 3/4 BS Broadway Lever Entry, SFIC Less Core, 2-3/4" Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX11BRR26D-IC-2 3/4 BS Entry Rigid Broadway Lever offers a robust solution for commercial applications, combining style and functionality. This Grade 2 lockset features a freewheeling lever action, which enhances resistance to abuse, making it ideal for high-traffic areas. The RLX series is designed for easy installation and replacement, with removable through bolts and a variety of finishes and functions available. Engineered to fit door thicknesses from 1-3/8" to 1-3/4", the RLX11BRR is factory set for 1-3/4" doors, ensuring a perfect fit for most standard installations. It comes equipped with a 2-3/4" backset latch and a standard 6-pin solid brass cylinder, accompanied by two nickel-plated brass keys. The lockset is also IC prep available, providing flexibility for various security needs. Certified by BHMA A156.2, Series 4000, and UL Listed, this lockset assures quality and reliability. It is non-handed, allowing for versatility in installation. With a 10-year warranty, the Arrow Lock Company RLX11BRR26D-IC-2 is the perfect choice for those seeking a durable, stylish, and functional locking solution for their commercial spaces.

Entry Rigid Broadway Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
