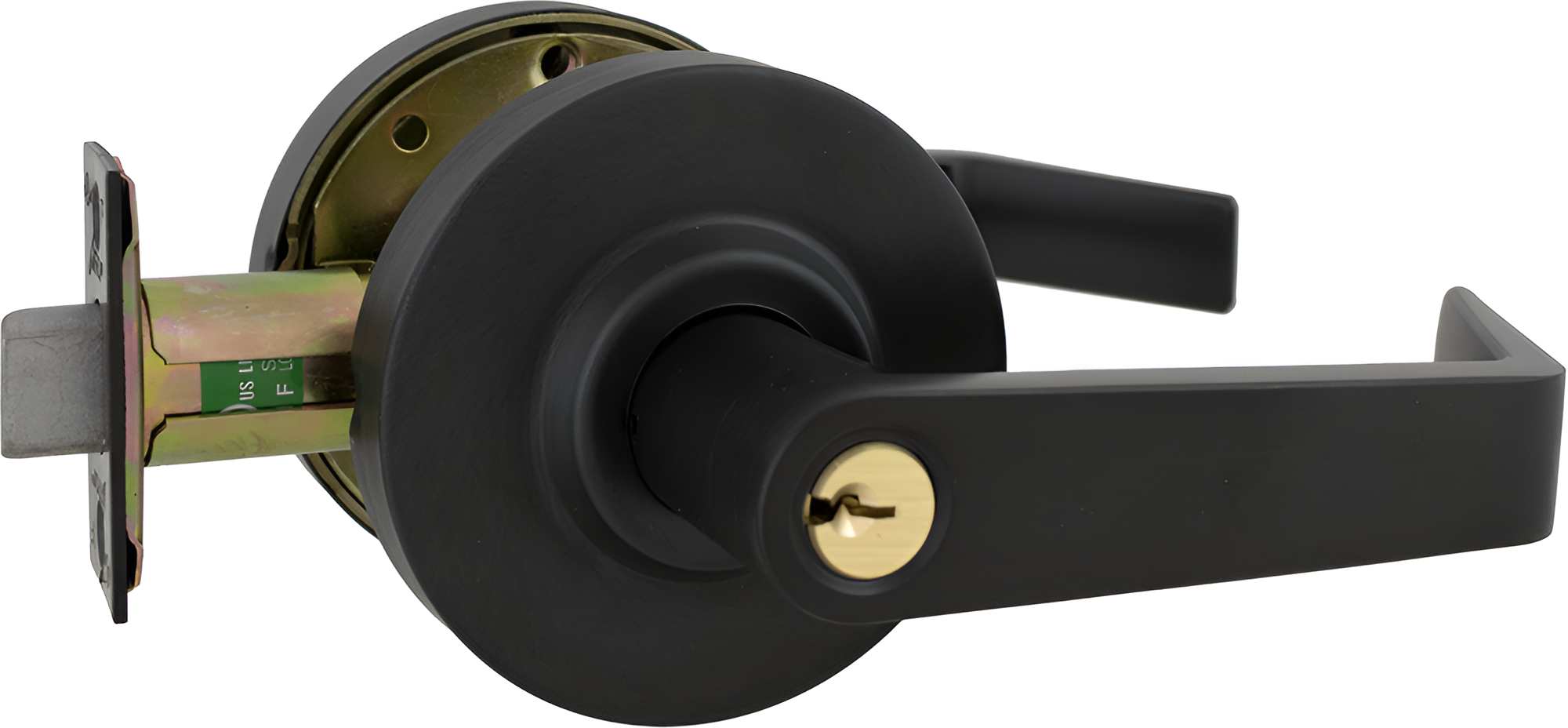

Arrow Lock RLX11SR-BSP-CS-2 3/4 BS Sierra Lever Entry Lock, Schlage C Keyway, 2-3/4" Backset, Grade 2, Black Suede

Arrow Lock Company RLX11SR-BSP-CS-2 3/4 BS Entry Rigid Sierra Lever combines durability and style, making it an ideal choice for commercial applications. This Grade 2 lockset features a freewheeling lever action, enhancing its resistance to wear and tear in high-traffic environments. Constructed with a robust design, it meets the rigorous standards set by BHMA A156.2, Series 4000, and is UL Listed for added assurance. Designed to fit door thicknesses ranging from 1-3/8" to 1-3/4", the RLX11SR is factory set for 1-3/4" doors, ensuring versatility for various installations. The latch boasts a 2-3/4" backset and a 1-1/8" front, optimizing functionality without compromising security. Additionally, it features a solid brass, 6-pin cylinder with two nickel-plated keys, with an option for interchangeable core preparation. Finished in a sophisticated Black Suede Powder Coat, this lockset not only provides a sleek look but also increases its resistance to corrosion and wear. The non-handed design simplifies installation, while the 10-year warranty provides peace of mind. Perfect for building professionals and discerning homeowners, the Arrow Lock RLX series is a reliable choice for those seeking quality security solutions.

Entry Rigid Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 622/US19/BSP Black Suede Powder Coat

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
