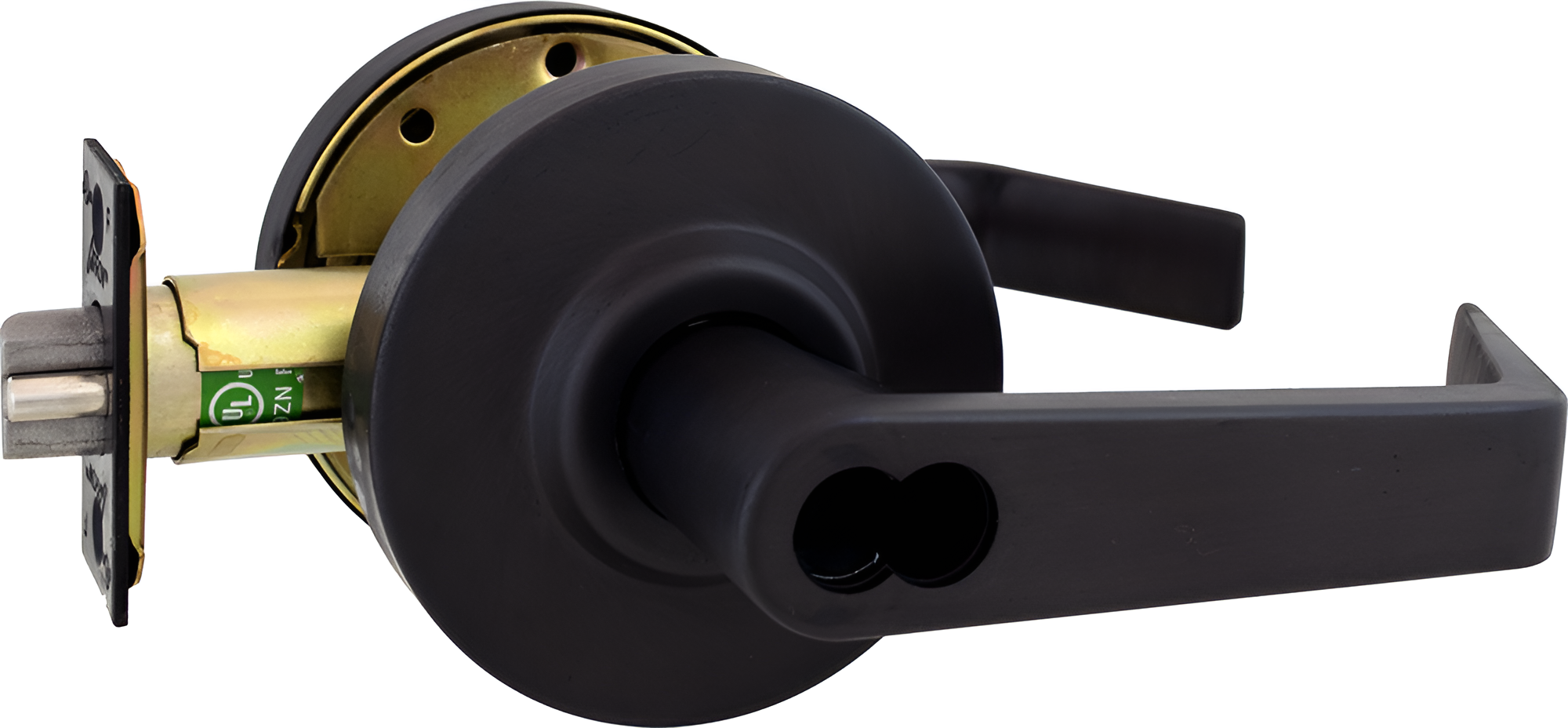

Arrow Lock RLX11SR-BSP-IC-2 3/4 BS Sierra Lever Entry Lock, SFIC Less Core, 2-3/4in Backset, Grade 2, Black Suede

Arrow Lock Company RLX11SR-BSP-IC-2 3/4 BS Entry Rigid Sierra Lever combines security and style, making it an ideal choice for commercial applications. This robust Grade 2 lockset features a freewheeling lever action that enhances durability and resistance to abuse, ensuring reliable performance in high-traffic areas. Designed to accommodate door thicknesses from 1-3/8" to 1-3/4", with a factory setting for 1-3/4", this versatile lockset is suitable for various installations. The 2-3/4" backset latch and ANSI 1-1/4" x 4-7/8" strike provide seamless integration into existing door hardware. The RLX11SR is equipped with a standard 6-pin cylinder made from solid brass and comes with two nickel-plated brass keys; an interchangeable core (IC) preparation is also available. With a sleek black suede powder coat finish, this model not only meets BHMA A156.2, Series 4000 Grade 2 certification but also adds a sophisticated touch to any door. Non-handed for easy installation, the RLX11SR-BSP-IC-2 offers a 10-year warranty, ensuring peace of mind for building professionals and homeowners alike. Its removable through bolts and variety of trims make it a perfect solution for upgrading or replacing existing locksets, enhancing both security and aesthetic appeal.

Entry Rigid Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 622/US19/BSP Black Suede Powder Coat

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
