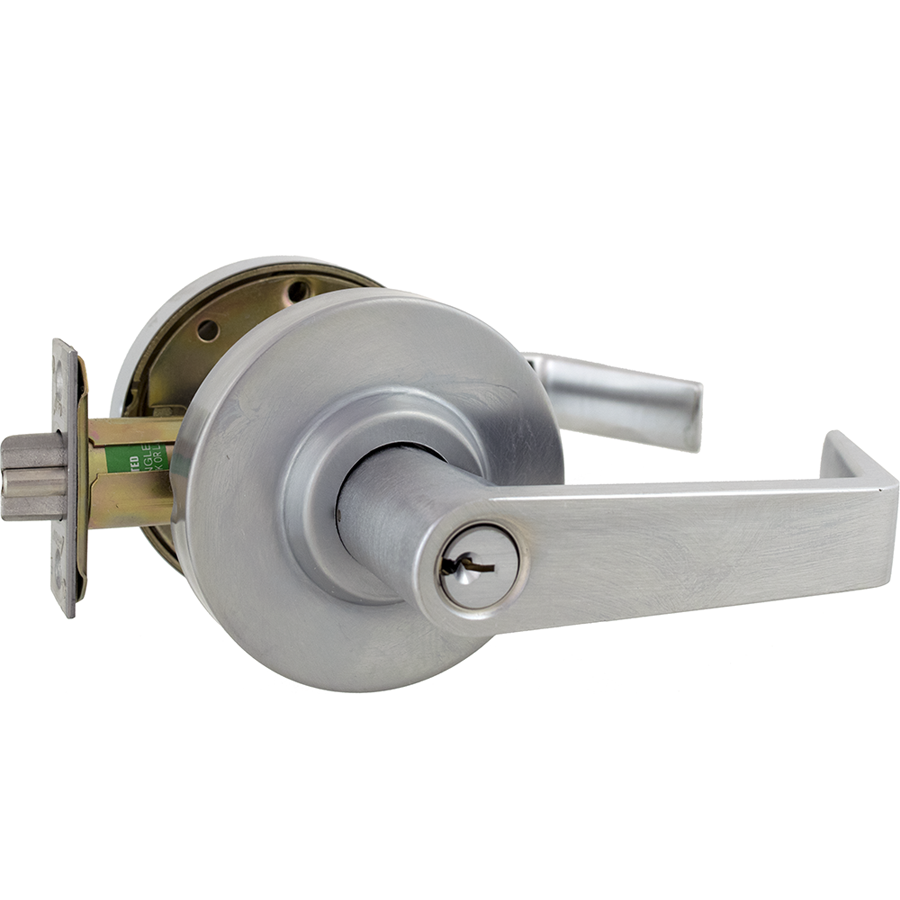

Arrow Lock RLX11SR26D-CS 2 3/8 BS Entry Rigid Sierra Lever, 2-3/8in Backset, Grade 2, 626/US26D Satin Chrome

Arrow Lock Company RLX11SR26D-CS 2 3/8 BS Entry Rigid Sierra Lever is a robust and reliable choice for commercial applications requiring enhanced security and durability. This Grade 2 lockset features a freewheeling lever action, designed to withstand heavy use while maintaining smooth operation. Its non-handed design allows for flexible installation on various door orientations, making it an ideal solution for any entrance. Constructed to meet BHMA A156.2, Series 4000 standards, the RLX Series provides UL-listed security assurance. It accommodates door thicknesses ranging from 1-3/8" to 1-3/4" and is factory set for 1-3/4". The 2-3/8" backset and ANSI-standard strike size (1-1/4" x 4-7/8") further enhance its adaptability for different commercial doors. Equipped with a 6-pin solid brass cylinder, the RLX11SR26D-CS comes with two nickel-plated brass keys, and an interchangeable core preparation is available. The lockset is finished in a sleek Satin Chromium Plated (626/US26D), ensuring a modern aesthetic that complements any entryway. Backed by a 10-year warranty and packaged six per case, the Arrow Lock RLX11SR26D-CS is not just a lock; it’s a commitment to security and quality for your commercial spaces.

Entry Rigid Sierra Lever, 2-3/8in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"

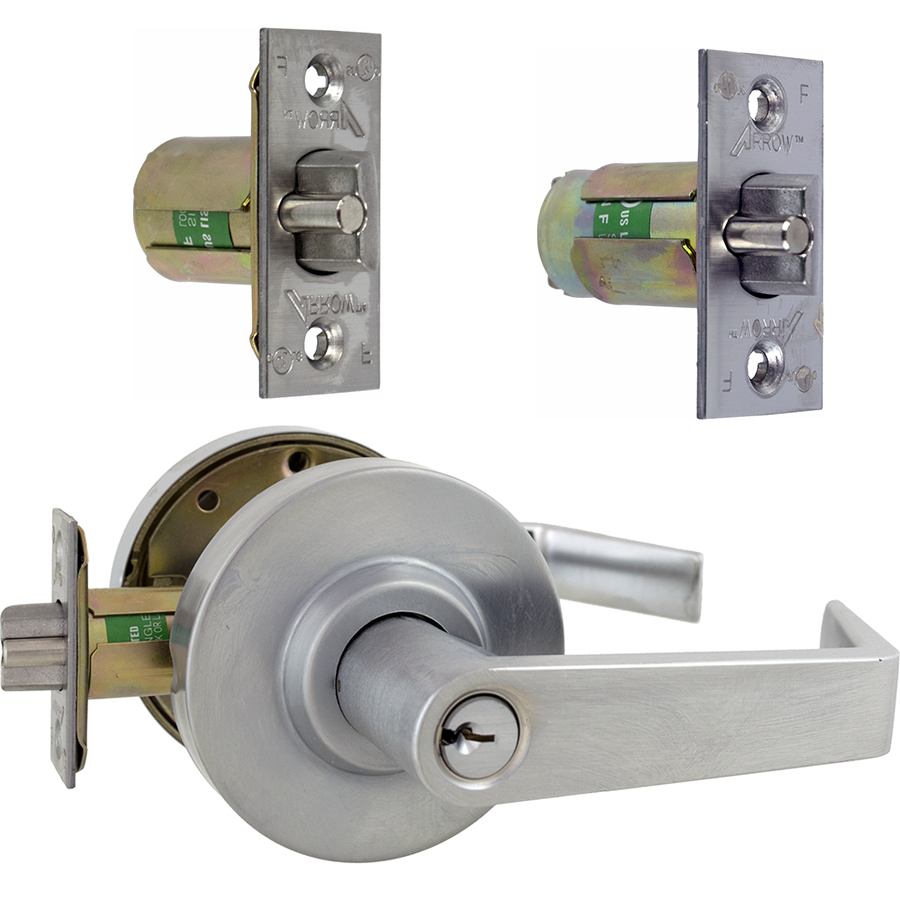

• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
