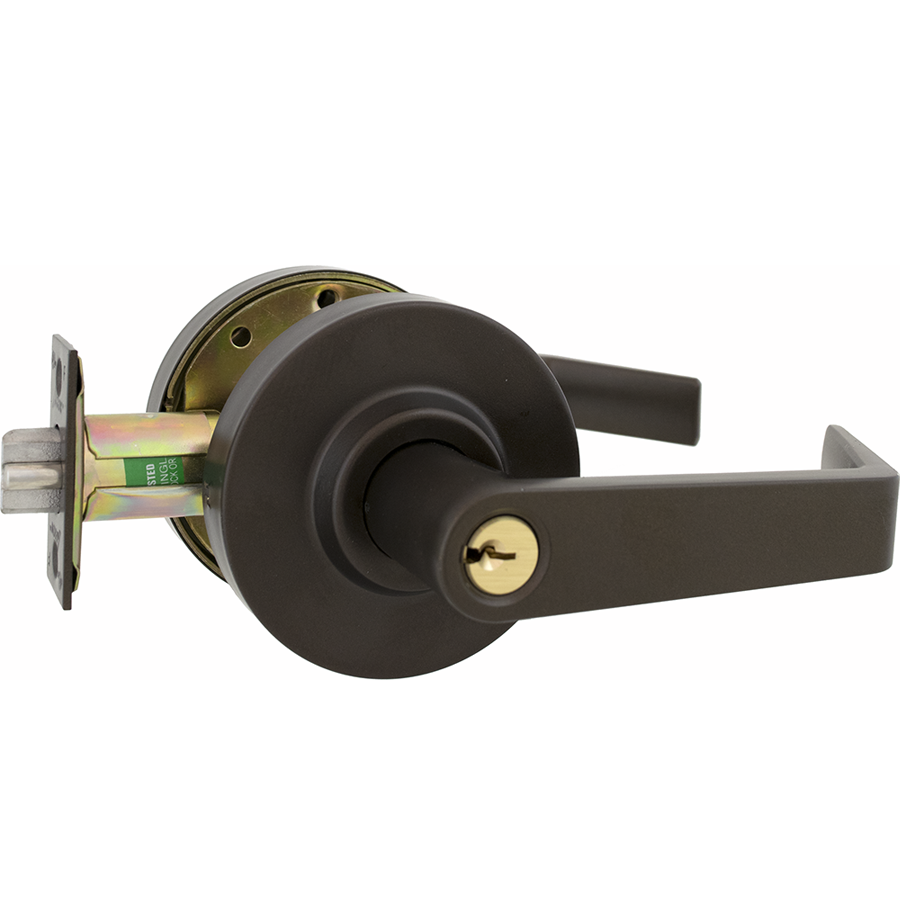

Arrow Lock RLX11SR613E-CS-2 3/4 BS Sierra Lever Entry Lock, Schlage C Keyway, 2-3/4in Backset, Oil Rubbed Bronze

Arrow Lock Company RLX11SR613E-CS-2 3/4 BS Entry Rigid Sierra Lever is a durable and stylish solution for your security needs. This Grade 2 lockset features a robust construction with a freewheeling lever operation, providing enhanced resistance to wear and tear, making it ideal for commercial applications. Designed to fit door thicknesses between 1-3/8" and 1-3/4", the RLX11SR is factory set for 1-3/4" thick doors. It comes with a 2-3/4" backset and includes a 6-pin solid brass cylinder along with two nickel-plated brass keys, ensuring reliable access control. The non-handed design simplifies installation, allowing for versatility in various configurations. The lockset is UL Listed and certified under BHMA A156.2, Series 4000, Grade 2, ensuring compliance with stringent quality and safety standards. With an oil-rubbed bronze finish, this lock not only provides security but also adds a touch of elegance to any entryway. Installation is hassle-free thanks to removable through bolts and an ANSI strike plate measuring 1-1/4" x 4-7/8". Backed by a 10-year warranty, the Arrow Lock Company RLX11SR613E-CS-2 delivers reliable performance and peace of mind for years to come.

Entry Rigid Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
