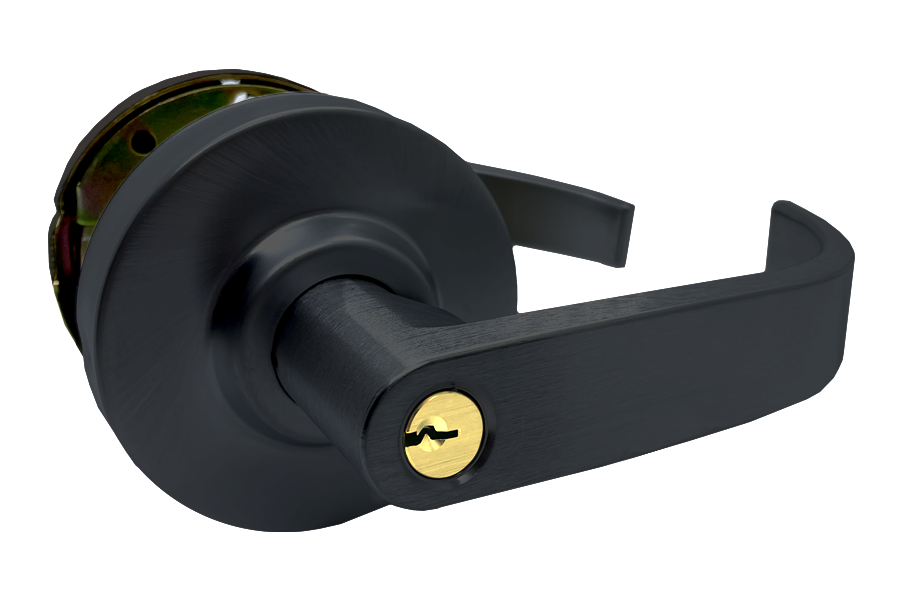

Arrow Lock RLX12BRR-BSP-CS-2 3/4 BS Schlage Broadway Lever, C Keyway, 2-3/4in Backset, Grade 2, Black Suede

Arrow Lock Company RLX12BRR-BSP-CS-2 3/4 BS Storeroom Rigid Broadway Lever is engineered for durability and versatility in commercial settings. This Grade 2 lockset features a freewheeling lever action, enhancing its resistance to abuse, making it ideal for high-traffic areas. Designed with a Schlage C keyway, the RLX12BRR is compatible with various locking systems, ensuring ease of access while maintaining robust security. This model accommodates door thicknesses from 1-3/8" to 1-3/4" and comes factory set for 1-3/4". It features a 2-3/4" backset latch, with a standard 6-pin solid brass cylinder that includes two nickel-plated brass keys. The RLX12BRR-BSP-CS-2 is non-handed, simplifying installation and use. Finished in a sophisticated black suede powder coat (622/US19/BSP), this lockset not only meets BHMA A156.2, Series 4000, Grade 2, and UL certification standards but also adds an elegant touch to any entryway. With the added reassurance of a 10-year warranty, building professionals and knowledgeable homeowners can confidently select the Arrow Lock Company RLX12BRR for their security needs. Available in a case quantity of six, this lockset combines form and function, making it a smart choice for any commercial application.

Storeroom Rigid Broadway Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 622/US19/BSP Black Suede Powder Coat

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
