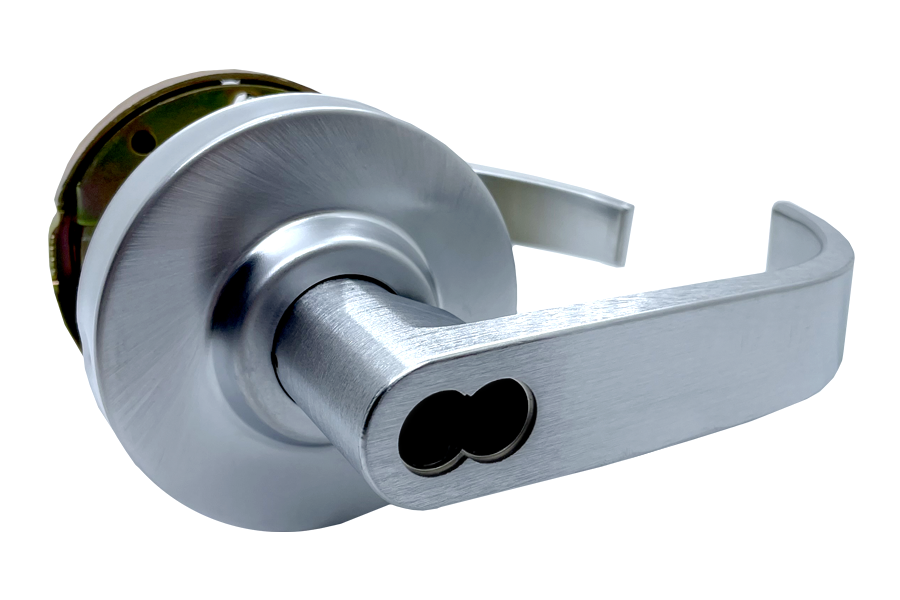

Arrow Lock RLX17BRR26D-IC-2 3/4 BS Broadway Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX17BRR26D-IC-2 3/4 BS Classroom Rigid Broadway Lever is a premium choice for commercial applications, designed with durability and functionality in mind. This Grade 2 lockset features a freewheeling lever operation, providing enhanced resistance to wear and abuse, making it ideal for high-traffic environments. Engineered to accommodate doors with a thickness of 1-3/8" to 1-3/4" (factory set for 1-3/4"), the RLX17BRR is adaptable and versatile. It includes a 2-3/4" backset latch, ensuring a secure fit, and meets stringent certification standards, including BHMA A156.2, Series 4000, and UL Listing. The IC prep option allows for easy integration into existing security systems, providing flexibility for future upgrades. With a robust satin chrome finish (626/US26D), this lock not only enhances security but also adds an aesthetic appeal to any door. The non-handed design allows for simple installation without the need to choose between left or right-hand doors. Backed by a 10-year warranty, the RLX17BRR is a reliable investment for any commercial setting. Whether you're replacing outdated hardware or upgrading your security measures, the Arrow Lock Company RLX17BRR26D-IC-2 lever lockset offers the perfect blend of strength, style, and functionality.

Classroom Rigid Broadway Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
