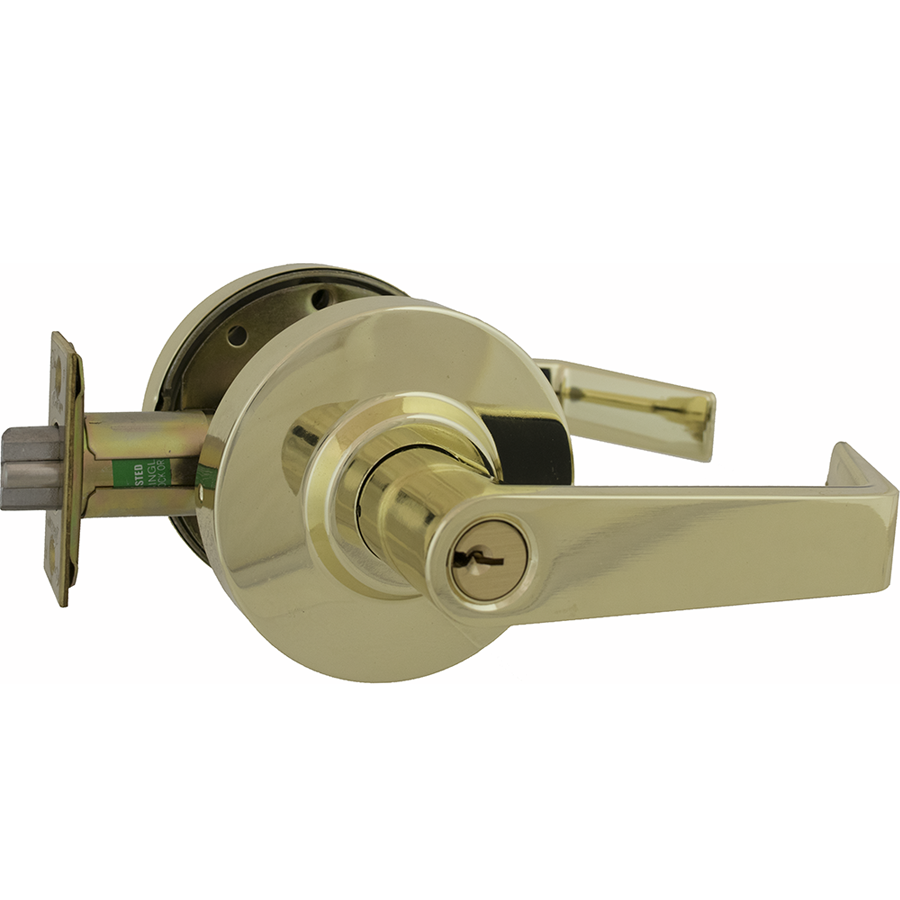

Arrow Lock RLX17SR03-CS-2 3/4 BS Sierra Lever Classroom Lock, Schlage C Keyway, 2-3/4in Backset, Grade 2, Brass

Arrow Lock Company RLX17SR03-CS-2 3/4 BS Classroom Rigid Sierra Lever combines durability and functionality in a Grade 2 lockset perfect for commercial applications. This lockset features a freewheeling lever operation, enhancing resistance to abuse, making it an ideal choice for high-traffic areas. With a Schlage C keyway and a 2-3/4" backset, it ensures secure access while accommodating door thicknesses from 1-3/8" to 1-3/4". Engineered for ease of installation, the RLX17SR03-CS-2 includes removable through bolts and a standard 6-pin solid brass cylinder, complemented by two nickel-plated brass keys. This non-handed lock allows for flexible application on various doors, while the ANSI strike ensures compatibility with industry standards. The bright brass finish (03/605/US3) adds an elegant touch to any environment, enhancing aesthetics alongside security. Certified under BHMA A156.2, Series 4000, and UL Listed, this lockset promises reliability and peace of mind. With a 10-year warranty, the RLX17SR03-CS-2 is a smart investment for those seeking robust and stylish locking solutions. Whether upgrading existing locks or installing new ones, this product delivers exceptional performance and security.

Classroom Rigid Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 605/US3 Bright Brass

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
