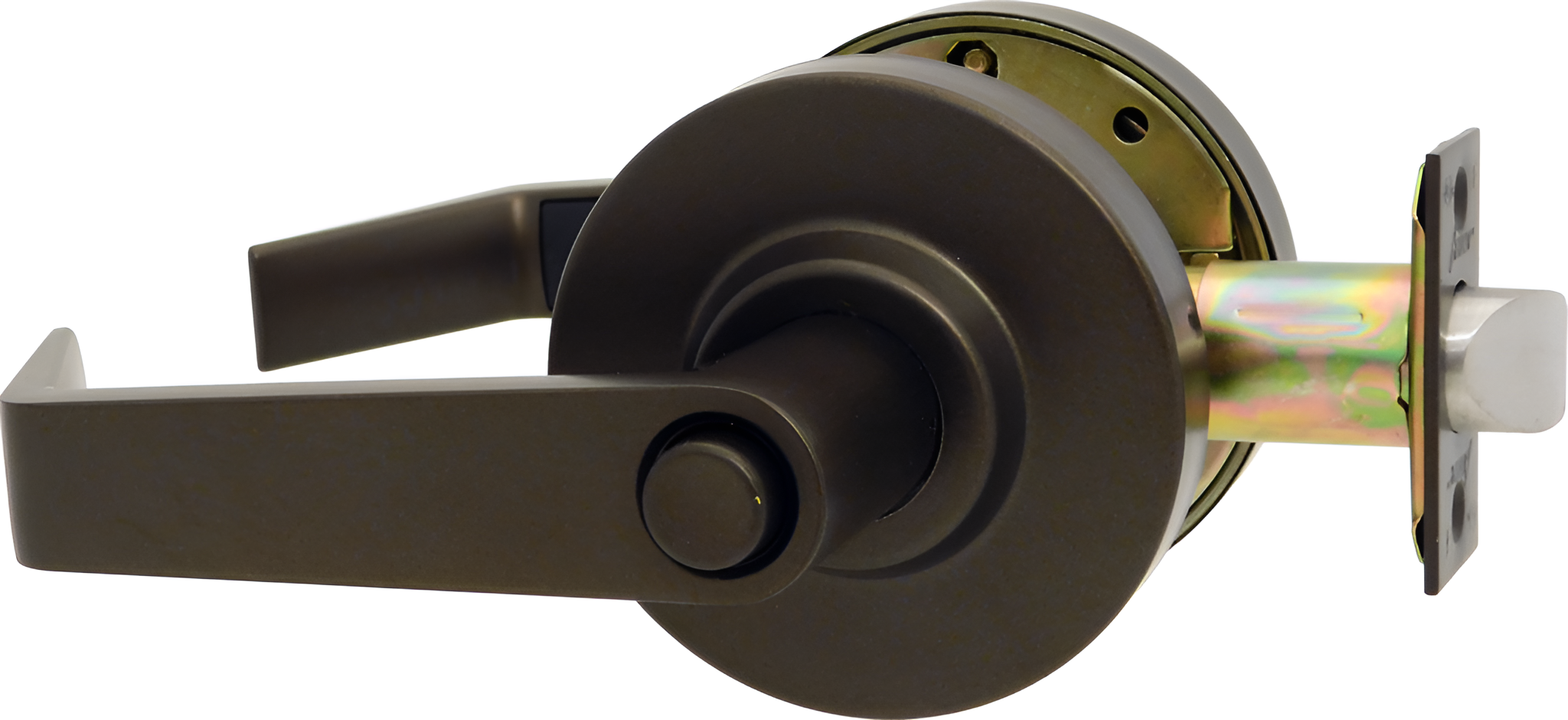

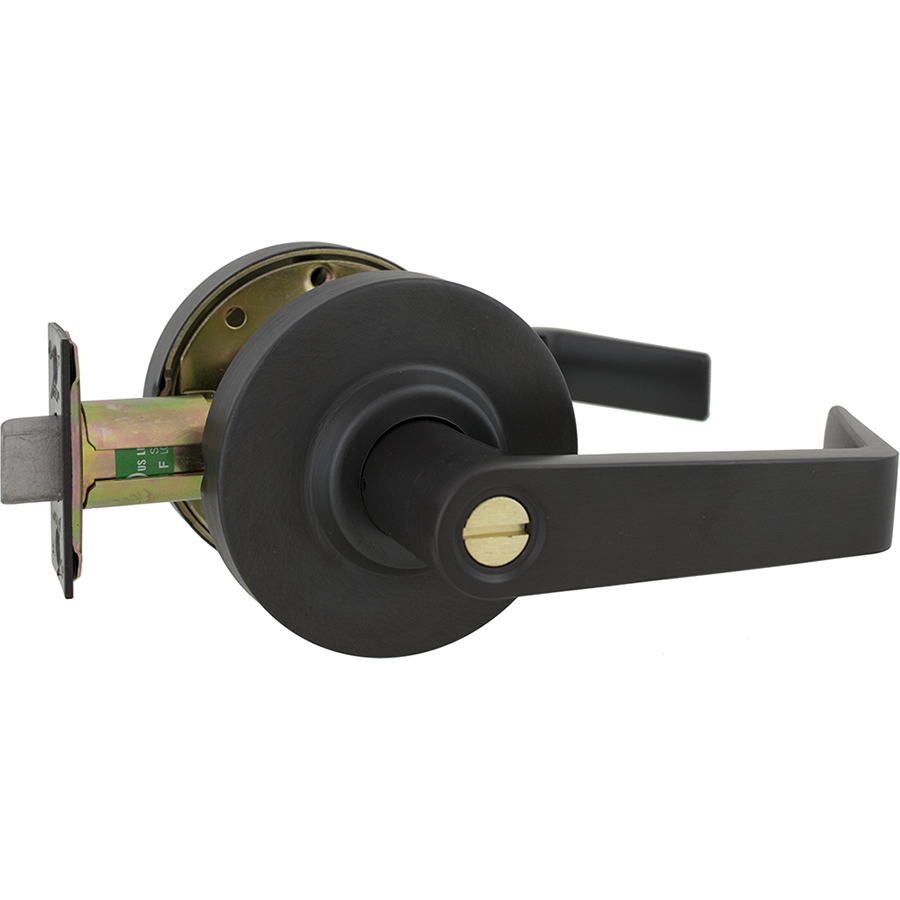

Arrow Lock RLX72SR613E-2 3/8 BS Privacy Clutched Sierra Lever, 2-3/8" Backset, Grade 2, Oil Rubbed Bronze

Arrow Lock Company RLX72SR613E-2 3/8 BS KIT is a premium privacy lockset designed for both functionality and durability. This Grade 2 cylindrical lockset features a stylish Sierra lever, engineered with a freewheeling lever action that enhances resistance to abuse, making it ideal for high-traffic commercial environments. The RLX Series is recognized for its robustness, with certification from BHMA A156.2, Series 4000, and UL Listed for safety and quality assurance. Designed to accommodate door thicknesses ranging from 1-3/8 inches to 1-3/4 inches, this lockset is factory set for 1-3/4 inches, ensuring a perfect fit for various applications. Its 2-3/8-inch backset and ANSI strike size of 1-1/4 inches x 4-7/8 inches facilitate easy installation. The lock is equipped with a standard 6-pin solid brass cylinder, featuring nickel-plated brass keys, ensuring reliable security. With a sleek oil-rubbed bronze finish, the RLX72SR613E-2 not only provides privacy but also adds an aesthetic appeal to any door. This non-handed design simplifies installation and adjustment, making it a versatile choice for professionals and knowledgeable homeowners alike. Backed by a 10-year warranty, this lockset is a dependable solution for your security needs.

KIT - Privacy Clutched Sierra Lever, 2-3/8in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
