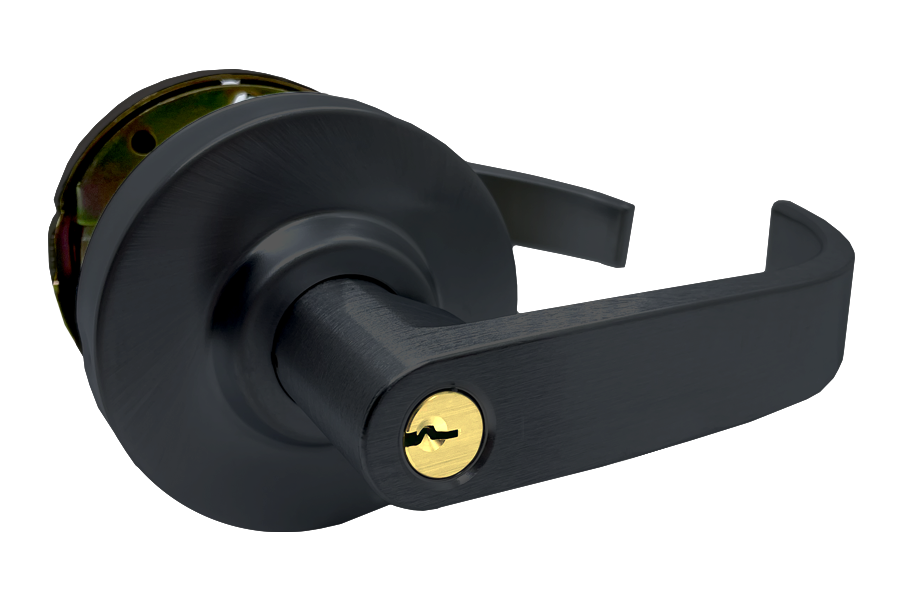

Arrow Lock RLX81BRR-BSP-CS-2 3/4 BS Schlage Entry Clutched Broadway Lever, C Keyway, 2-3/4in Backset, Black Suede

Arrow Lock Company RLX81BRR-BSP-CS-2 3/4 BS Entry Clutched Broadway Lever combines durability and functionality, making it an ideal choice for commercial settings. This Grade 2 lockset features a freewheeling lever action that enhances resistance to wear and abuse, ensuring long-lasting performance. The RLX Series is designed as a professional replacement product, complete with removable through bolts, accommodating various designs, finishes, and functions. Engineered for versatility, the RLX81BRR is factory set for doors measuring 1-3/4 inches thick but fits doors ranging from 1-3/8 inches to 1-3/4 inches. It comes with a sturdy ANSI strike measuring 1-1/4 inches by 4-7/8 inches, a 2-3/4 inch backset latch, and a solid brass 6-pin cylinder, supplied with two nickel-plated brass keys. The non-handed design simplifies installation, allowing for seamless integration into any environment. Coated in a modern Black Suede Powder Coat finish, this lockset not only offers aesthetic appeal but also resists corrosion. Certified to BHMA A156.2, Series 4000, and UL Listed, it comes with a 10-year warranty, underscoring its quality and reliability. Ideal for offices, storerooms, or classrooms, the RLX81BRR is a robust solution for your security needs.

Entry Clutched Broadway Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 622/US19/BSP Black Suede Powder Coat

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
