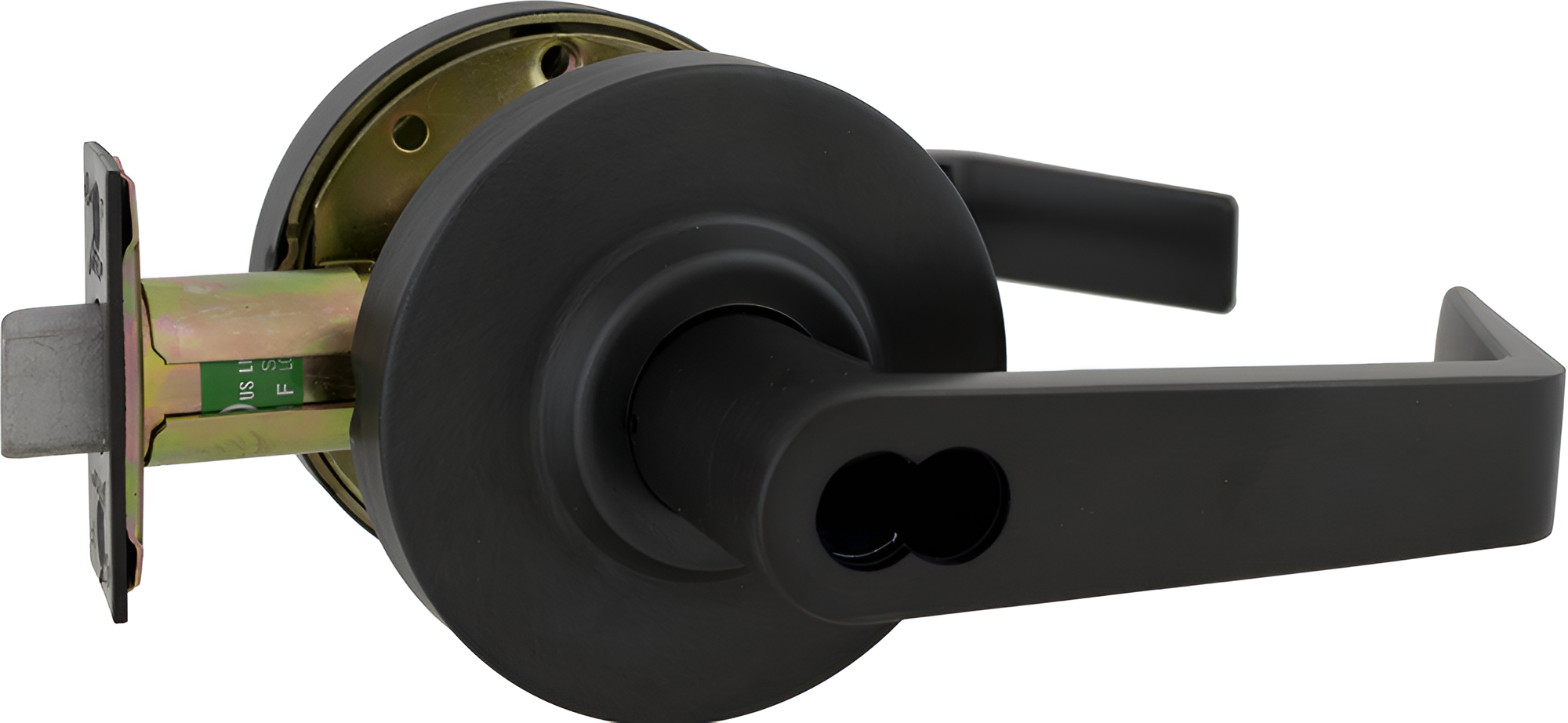

Arrow Lock RLX81SR-BSP-IC-2 3/4 BS Sierra Lever Entry Lock, SFIC Less Core, 2-3/4in Backset, Grade 2, Black Suede

Arrow Lock Company RLX81SR-BSP-IC-2 3/4 BS Entry Clutched Sierra Lever offers a robust solution for commercial security needs. This Grade 2 lockset is designed for enhanced durability, featuring freewheeling lever action that resists abuse, making it an excellent choice for high-traffic areas. The RLX Series is engineered with removable through bolts, allowing for easy installation and maintenance. Designed to accommodate door thicknesses from 1-3/8" to 1-3/4", this lockset is factory set for 1-3/4" doors. It includes a 2-3/4" backset latch and an ANSI 1-1/4" x 4-7/8" strike for reliable performance. The standard cylinder features a 6-pin solid brass construction and comes with two nickel-plated brass keys, with an interchangeable core (IC) prep available for added flexibility. Finished in a sleek Black Suede Powder Coat, the RLX81SR not only enhances security but also complements the aesthetics of your building. This non-handed lockset simplifies installation, while its 10-year warranty offers peace of mind. Ideal for office and entry applications, the RLX81SR stands as a trusted choice for professionals seeking quality and reliability in security hardware.

Entry Clutched Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 622/US19/BSP Black Suede Powder Coat

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
