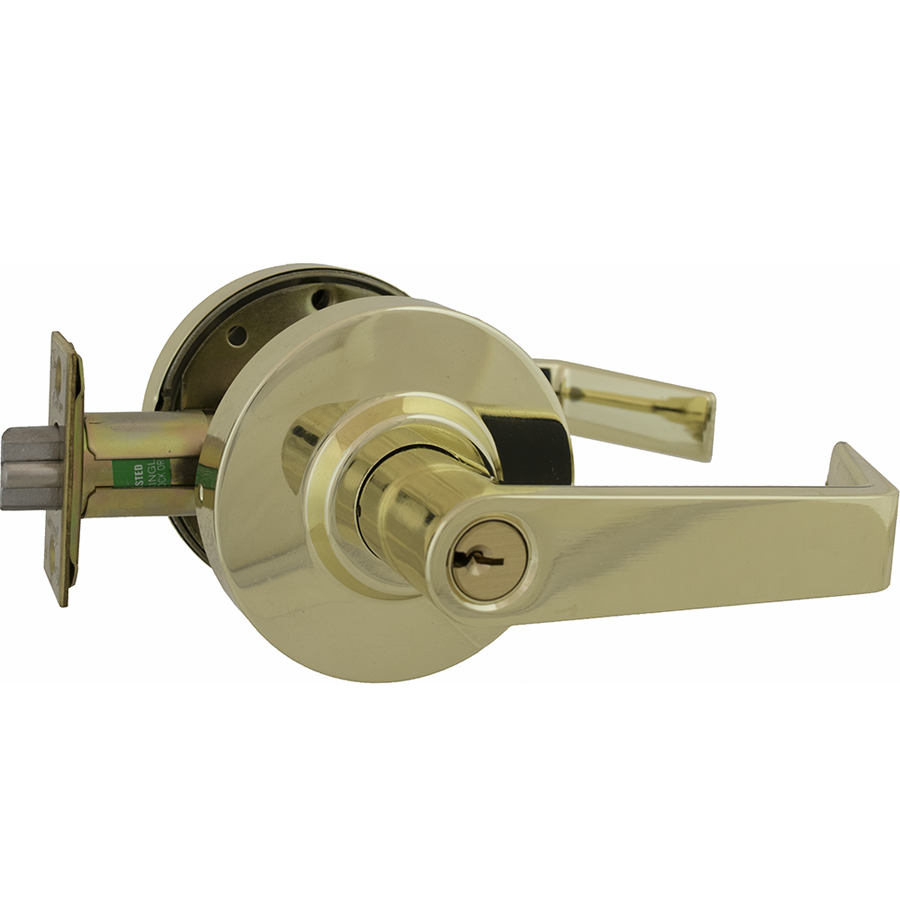

Arrow Lock RLX81SR03-CS-2 3/4 BS Sierra Lever Entry Lock, Schlage C Keyway, 2-3/4in Backset, Grade 2, Bright Brass

Arrow Lock Company RLX81SR03-CS-2 3/4 BS Entry Clutched Sierra Lever combines durability and elegance, making it an ideal choice for commercial applications. This Grade 2 lockset features a freewheeling lever operation designed to resist wear and tear, ensuring reliable performance over time. The lockset is certified to BHMA A156.2, Series 4000, and is UL Listed, providing peace of mind regarding its quality and security standards. Designed for doors with a thickness ranging from 1-3/8" to 1-3/4", the RLX81SR03-CS-2 is factory set for 1-3/4" doors. It includes a 2-3/4" backset latch and a standard 6-pin solid brass cylinder, complete with two nickel-plated brass keys. The non-handed design allows for easy installation, making it suitable for various door configurations. With a striking bright brass finish (605/US3), this lockset not only enhances security but also adds a touch of sophistication to any entryway. The RLX Series is equipped with removable through bolts for straightforward maintenance and customization. Backed by a 10-year warranty, the Arrow Lock Company RLX81SR03-CS-2 guarantees a reliable and stylish locking solution for your business or office space.

Entry Clutched Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 605/US3 Bright Brass

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
