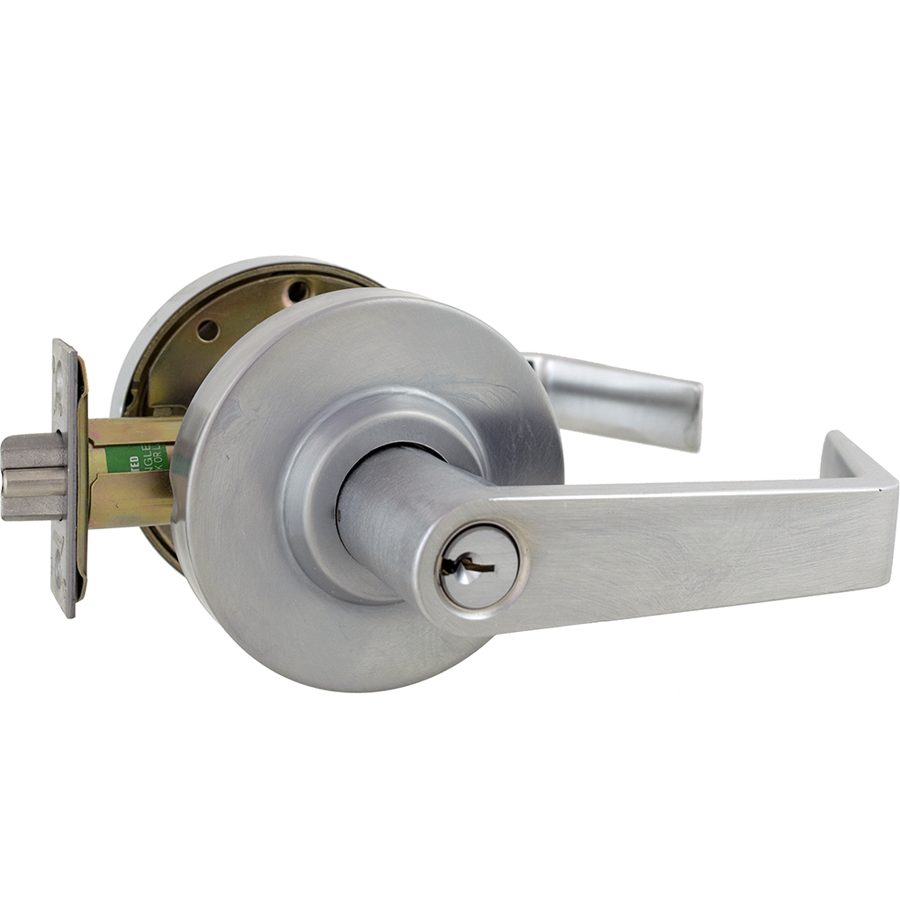

Arrow Lock RLX81SR26D-CS-2 3/4 BS Sierra Lever Entry Lock, Schlage C Keyway, 2-3/4" Backset, Satin Chrome

Arrow Lock Company RLX81SR26D-CS-2 3/4 BS Entry Clutched Sierra Lever combines durability and functionality in one robust Grade 2 lockset. Designed for commercial applications, this lockset features a freewheeling lever action that enhances resistance to wear and tear, ensuring long-lasting performance. The RLX series is an ideal choice for those looking to replace or upgrade existing locksets without compromising on quality. This entry lockset fits door thicknesses ranging from 1-3/8" to 1-3/4", with a factory setting for 1-3/4". Its 2-3/4" backset and ANSI 1-1/4" x 4-7/8" strike make it adaptable to various door configurations. The solid brass, 6-pin cylinder is standard, providing two nickel-plated brass keys for security, with options for interchangeable core preparation. The RLX81SR features a non-handed design, simplifying installation and adaptability. The lockset is finished in a sleek satin chrome (626/US26D), enhancing both aesthetics and durability. Certified to BHMA A156.2, Series 4000, and UL Listed, it guarantees reliability and safety. With a generous 10-year warranty, the Arrow Lock RLX81SR26D-CS-2 is a dependable choice for any building professional or knowledgeable homeowner seeking quality security hardware.

Entry Clutched Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
