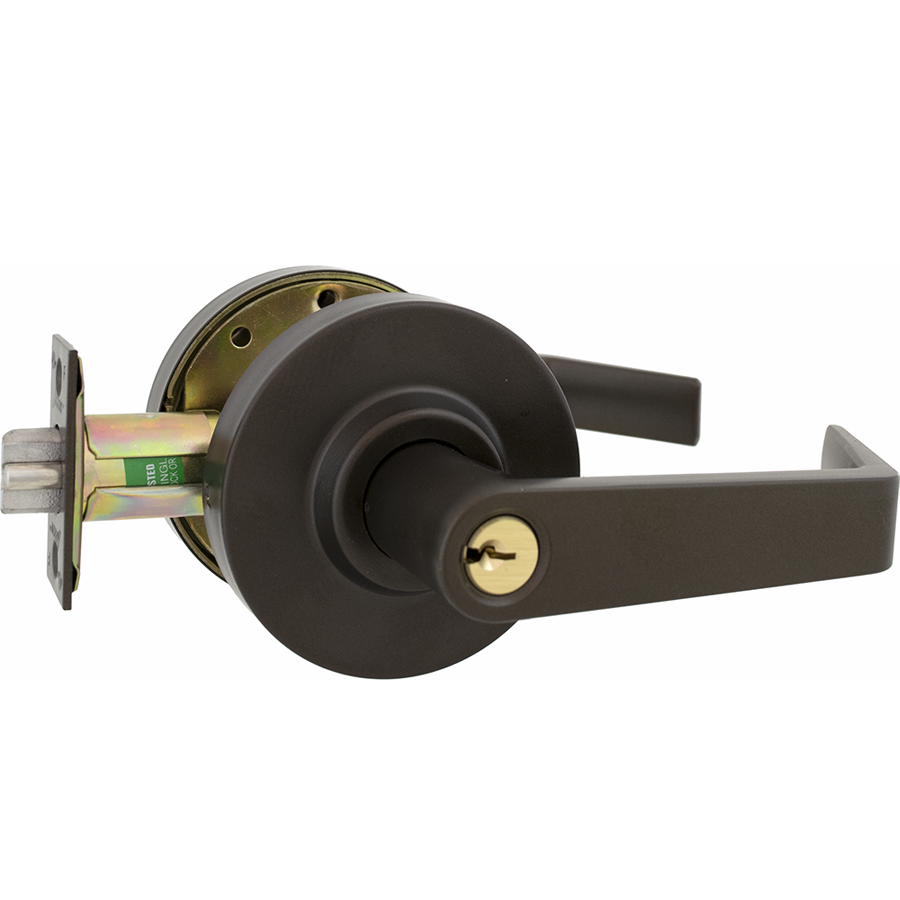

Arrow Lock RLX81SR613E-CS-2 3/4 BS Sierra Lever Entry Lock, Schlage C Keyway, 2-3/4" Backset, Oil Rubbed Bronze

Arrow Lock Company RLX81SR613E-CS-2 3/4 BS Entry Clutched Sierra Lever is a robust solution designed for commercial applications, offering a Grade 2 lockset with exceptional durability. This model features a freewheeling lever action that enhances resistance to abuse, making it ideal for high-traffic areas. The RLX Series is designed for easy installation and replacement, utilizing removable through bolts for straightforward setup. With its Schlage C keyway, this entrance/office lever accommodates a 2-3/4" backset and fits door thicknesses ranging from 1-3/8" to 1-3/4", providing versatility in various building applications. The RLX81SR is UL Listed and certified to BHMA A156.2, Series 4000, ensuring superior quality and security. Finished in a striking 613E/US10BE Oil Rubbed Bronze, this lever not only enhances the aesthetic of any door but also provides reliable performance with its solid brass, 6-pin cylinder and includes two nickel-plated brass keys. The non-handed design simplifies installation, making it adaptable to different door configurations. Backed by a 10-year warranty, the Arrow Lock Company RLX81SR lever is a dependable choice for those seeking a balance of style, functionality, and security in their locking hardware.

Entry Clutched Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
