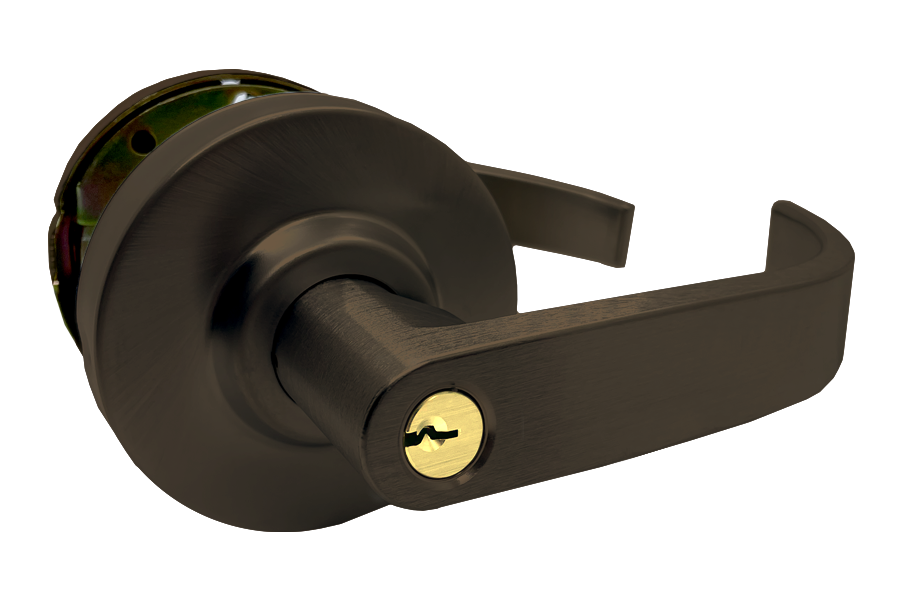

Arrow Lock RLX82BRR613E-CS-2 3/4 BS Schlage Broadway Lever, Clutched, C Keyway, 2-3/4in Backset, Oil Rubbed Bronze

Arrow Lock Company RLX82BRR613E-CS-2 3/4 BS Storeroom Clutched Broadway Lever combines durability and functionality, making it an excellent choice for commercial applications. This Grade 2 lockset features a freewheeling lever operation designed to withstand heavy use, enhancing both abuse resistance and longevity. With its oil-rubbed bronze finish (613E/US10BE), this lock not only provides security but also adds an aesthetic appeal to any environment. Designed to fit doors with thicknesses ranging from 1-3/8" to 1-3/4", the RLX82 is factory set for 1-3/4" doors, ensuring versatility across a variety of installations. The lockset is equipped with a 2-3/4" backset and includes a standard 6-pin solid brass cylinder, accompanied by two nickel-plated brass keys. Its non-handed design simplifies installation in various door configurations. Certified by BHMA A156.2, Series 4000 and UL Listed, the RLX82 meets industry standards for security and durability. With a warranty of 10 years, this lockset promises reliable performance over time. Each case contains six units, making it a practical choice for contractors and building professionals looking to enhance security in storerooms and other secure areas.

Storeroom Clutched Broadway Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
