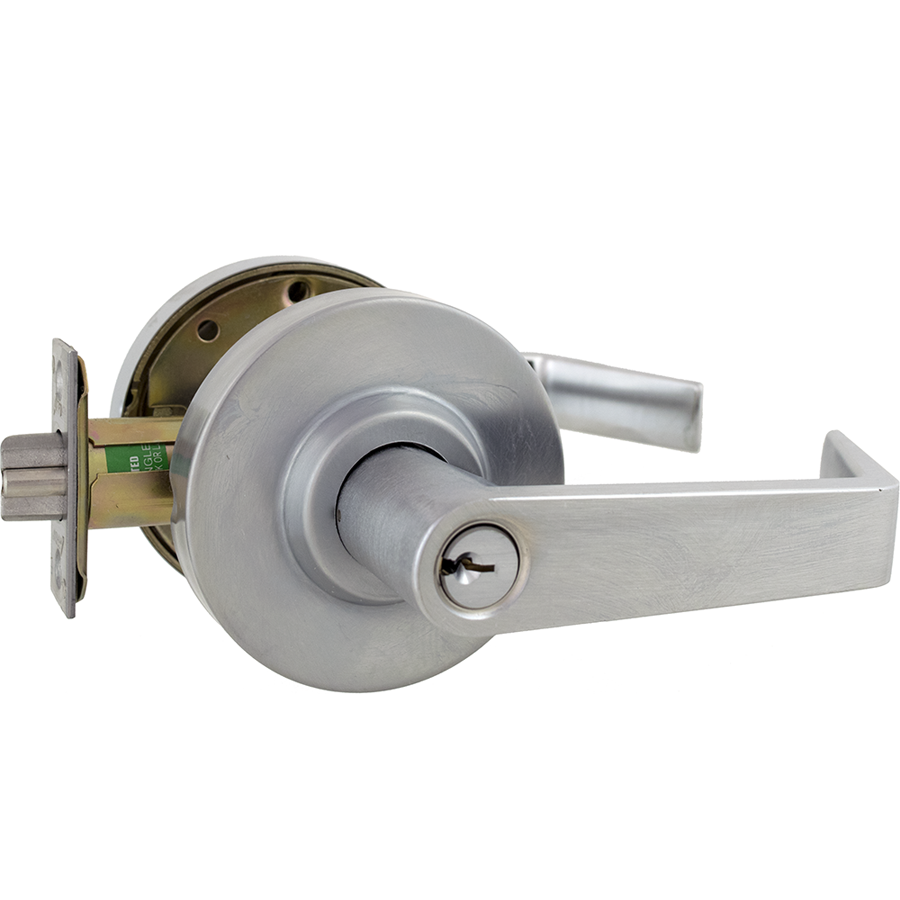

Arrow Lock RLX82SR26D-CS-2 3/4 BS Sierra Lever Storeroom Lock, Schlage C Keyway, 2-3/4in Backset, Satin Chrome

Arrow Lock Company RLX82SR26D-CS-2 3/4 BS Storeroom Clutched Sierra Lever combines durability and functionality, making it an ideal choice for commercial applications. This Grade 2 lockset features a freewheeling lever action that enhances resistance to wear and tear, ensuring long-lasting performance in high-traffic environments. Designed to fit door thicknesses from 1-3/8" to 1-3/4", this lock is factory set for 1-3/4" doors, providing versatility for various installations. Equipped with a 2-3/4" backset and constructed with a solid brass, 6-pin cylinder, the RLX82SR26D-CS-2 comes with two nickel-plated brass keys for added security. The satin chrome finish (626/US26D) not only adds an elegant touch but also contributes to its robust nature. This lock is non-handed, simplifying installation and compatibility with different door setups. Certified to BHMA A156.2, Series 4000, and UL listed, this lock meets stringent industry standards, ensuring reliability and safety. Each case contains six units, with an average weight of 26 lbs per case, and is backed by a 10-year warranty. Upgrade your security with the Arrow Lock Company RLX82SR26D-CS-2, a dependable and stylish solution for storeroom access control.

Storeroom Clutched Sierra Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
