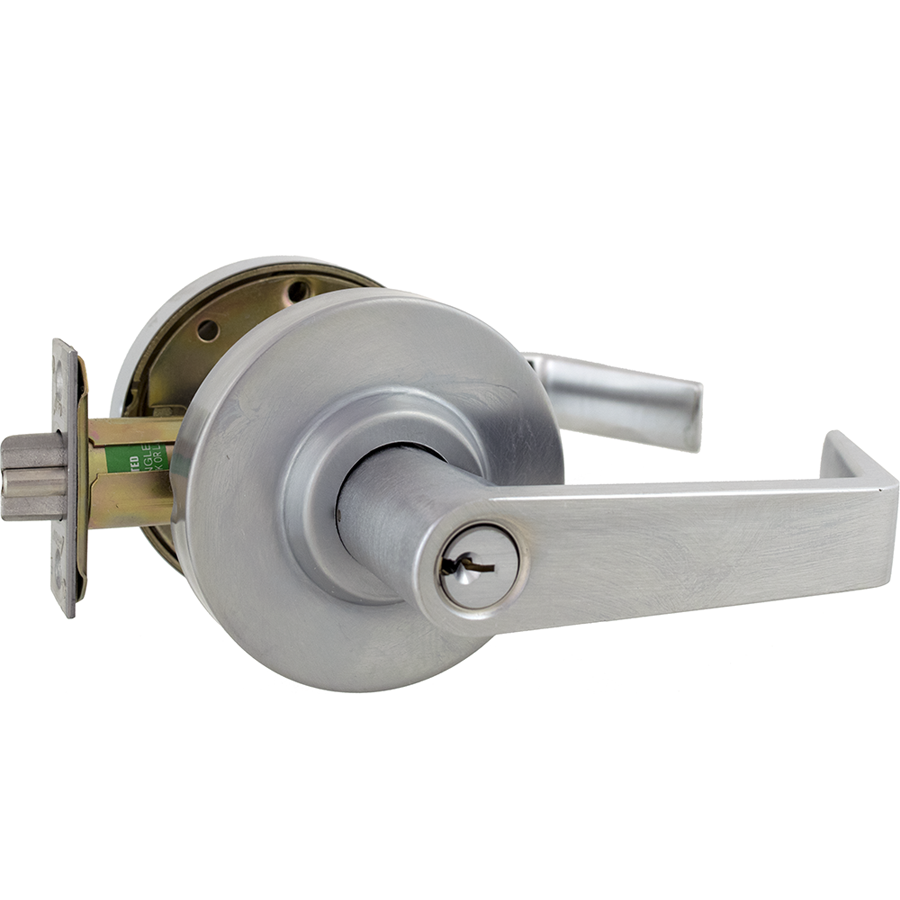

Arrow Lock RLX82SR26D-CS 2 3/8 BS Sierra Lever Storeroom Lock, Schlage C Keyway, 2-3/8in Backset, Satin Chrome

Arrow Lock Company RLX82SR26D-CS 2 3/8 BS Storeroom Clutched Sierra Lever offers a robust solution for securing storerooms in commercial environments. This Grade 2 lockset is designed for durability, featuring a freewheeling lever action that enhances resistance to wear and tear, making it ideal for high-traffic areas. Certified by BHMA A156.2, Series 4000, and UL Listed, the RLX Series ensures reliability and security. The RLX82SR26D-CS is compatible with doors ranging from 1-3/8" to 1-3/4" in thickness, and it is factory set for 1-3/4". It incorporates a 2-3/4" backset with a 1-1/8" front and features a 6-pin solid brass cylinder, offering two nickel-plated brass keys. Its non-handed design simplifies installation, making it a versatile choice for various door types. With a striking satin chrome finish (626/US26D), this lockset not only meets functional requirements but also complements your architectural aesthetics. Each unit is packaged six per case, with an average case weight of 26 lbs, and backed by a 10-year warranty. Upgrade your security with the Arrow Lock Company RLX82SR26D-CS, a perfect blend of strength, design, and practicality for your storeroom needs.

Storeroom Clutched Sierra Lever, Schlage C Keyway, 2-3/8in Backset, Grade 2, 626/US26D Satin Chrome

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
