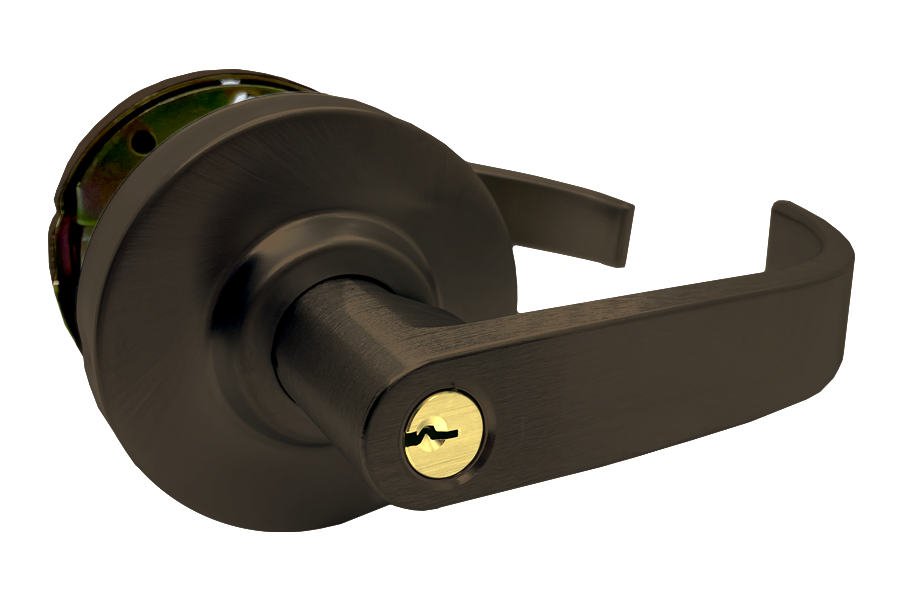

Arrow Lock RLX87BRR613E-CS-2 3/4 BS Schlage Classroom Clutched Broadway Lever, C Keyway, 2-3/4in Backset, Oil Rubbed Bronze

Arrow Lock Company RLX87BRR613E-CS-2 3/4 BS Classroom Clutched Broadway Lever is a robust Grade 2 lockset designed to withstand the rigors of commercial environments. With its freewheeling lever action, this lockset provides enhanced resistance to abuse, ensuring durability in high-traffic areas. The RLX series is an excellent choice for replacing or upgrading existing locksets, featuring removable through bolts for easier installation. This model is compatible with doors ranging from 1-3/8" to 1-3/4" in thickness and is factory set for 1-3/4" doors. The strike measures ANSI 1-1/4" x 4-7/8", while the latch comes with a 2-3/4" backset and a 1-1/8" front. The lock utilizes a standard 6-pin solid brass cylinder and includes two nickel-plated brass keys, with the option for interchangeable core preparation. The RLX87BRR613E-CS-2 features a dark oxide satin bronze finish (613E/US10BE), providing an elegant look that complements various architectural styles. It is non-handed and can be installed on both left and right-handed doors. Backed by a 10-year warranty, this lockset ensures reliable performance and peace of mind. Ideal for classroom settings, the RLX series is a trusted solution for security professionals and building managers alike.

Classroom Clutched Broadway Lever, Schlage C Keyway, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch: 2-3/4" backset, 1-1/8" front
• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing: Non-Handed.
• Case Quantity: 6 per case.
• Average Case Weight: 26 lbs.
• Warranty: 10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A: Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 - Bright Brass
• 613E/US10BE - Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D - Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4"
• Latch: 2-3/4" backset, 1-1/8" front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4" x 4-7/8"
