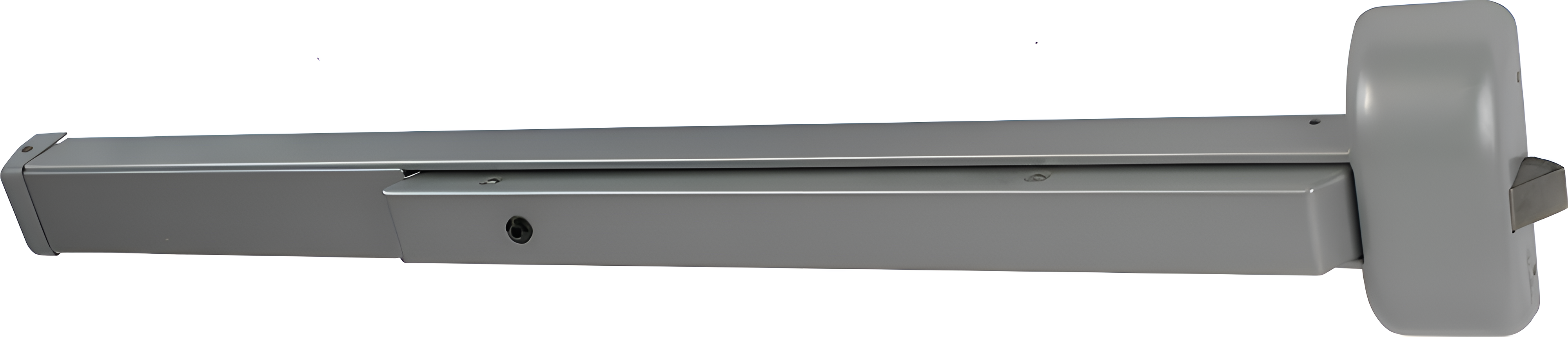

Arrow Lock S1250-AL-36 Rim Exit Device, Less Trim, Hex Dogging, 36in, Grade 1, 689/AL Painted Aluminum

Arrow Lock Company S1250-AL-36 Rim Exit Device offers a robust and cost-effective solution for ensuring safe egress in commercial and residential settings. This exit device is BHMA Certified Grade 1, making it an excellent choice for those seeking reliability and compliance with safety standards. Designed to meet ADA requirements, the S1250-AL-36 facilitates easy access for all users. Constructed from durable non-ferrous alloy with metal end caps, this exit device is suitable for 1-3/4" thick wood or hollow metal doors. It features a reversible handing, allowing for flexible installation. The device is equipped with a hex key dogging mechanism, ensuring secure operation while maintaining accessibility. With a 3/4" throw stainless steel latchbolt and a rail assembly made of sturdy steel, the S1250-AL-36 guarantees lasting performance. It accommodates doors up to 36" wide and can be adjusted for narrower applications. Compliance with safety codes such as NFPA 101 and NFPA 80 ensures that you are investing in a product that meets the highest industry standards. Available in a satin aluminum finish, the Arrow Lock Company S1250-AL-36 Rim Exit Device is an essential component for any building looking to enhance security and safety without compromising on style or functionality.

Rim Exit Device, Less Trim, Hex Dogging, 36in, Grade 1, 689/AL Painted Aluminum

The S1250 Series Rim Exit Device offers a reliable and dependable solution at a price you can afford. This exit device is BHMA Certified Grade 1 and is ADA compliant.

Certification:

• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
• Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix ""F"" before part number.
• ANSI A117.1 Accessibility Code.
• Fire Exit Hardware for wood doors, listed up to 1-1/2 hour, B label doors.
• All exit devices comply with life safety code NFPA 101.
• All fire rated devices comply with fire door and window code NFPA80.

Specifications:

• Chassis & Cover: Non-ferrous alloy
• End caps: Metal
• Doors:
• 1-3/4" (44.45mm) thick wood or hollow metal
• 4-1/2" (114.3mm) minimum stile
• 4-5/8" for fire-labeled devices
• Handing: Reversible
• Dogging: Allen-type key standard, cylinder available.
• Top/Bottom Bolts/Latchbolt: 3/4" (19.05 mm) throw, stainless steel
• Through bolts: Order separately
• Rail Assembly: Steel
• Rail Size: Furnished standard for doors up to 36", can be cut down to accommodate 32" doors. Alternate rail sizes available for narrow or wide doors

Finishes:

• AL/689 - Aluminum
• BRZ/690 - Dark Bronze
• LBZ/691 - Light Bronze

Features

• ANSI A117.1 Accessibility Code.
• All fire rated devices comply with fire door and window code NFPA80.
• Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
• All exit devices comply with life safety code NFPA 101.
• Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix ""F"" before part number.
• ANSI/BHMA A156.3, Grade 1
• Fire Exit Hardware for wood doors, listed up to 1-1/2 hour, B label doors.
