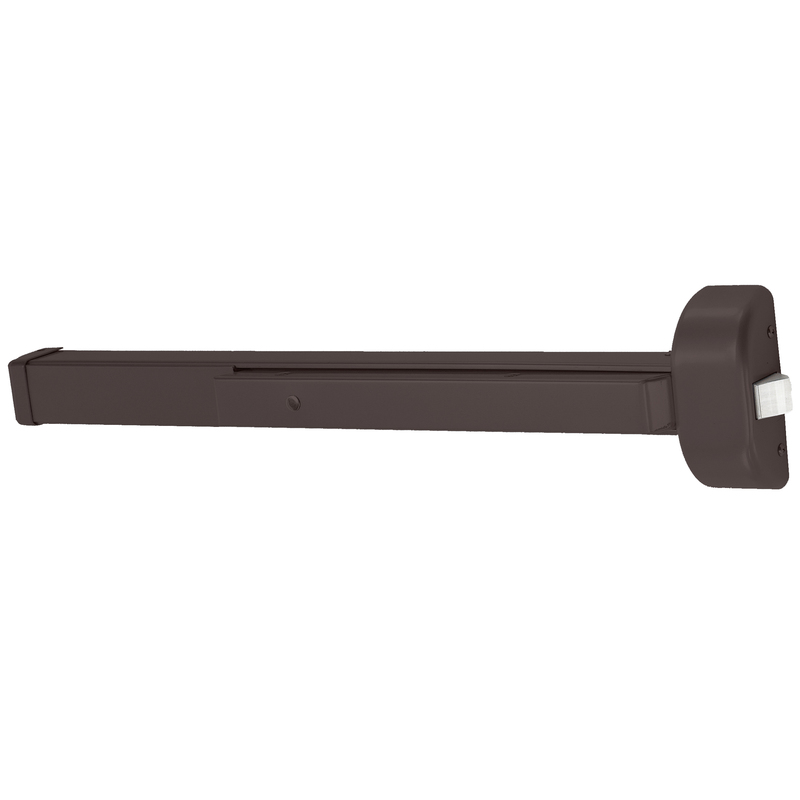

Arrow Lock S1250G BRZ Rim Exit Device

Arrow S1250G BRZ Rim Exit Device is a Grade 1 solution designed for durability and reliability, making it an ideal choice for commercial applications. This wide stile pushpad device accommodates doors ranging from 36" to 48" in width, with a universal function that suits a variety of installation needs. Crafted from a non-ferrous alloy chassis and featuring robust metal end caps, it ensures long-lasting performance even in high-traffic environments. The S1250G is non-handed, allowing for flexibility during installation. Its hex key dogging feature simplifies operation, and the 3/4" stainless steel throw provides added security. Designed for 1-3/4" thick hollow metal doors with a minimum stile of 4-1/2", this exit device meets ANSI/BHMA A156.3, Grade 1 standards and is UL and CUL listed for panic safety. Available in a striking dark bronze finish, the S1250G not only enhances aesthetic appeal but also complies with accessibility codes and fire exit hardware regulations. Whether it's for commercial or institutional use, this exit device delivers peace of mind while ensuring swift egress in emergencies. Choose the Arrow S1250G for a dependable exit solution that combines functionality and style.

Rim Exit Device

Grade 1 Rim Exit Device, Wide Stile Pushpad Device, 36" - 48" Wide Door, Universal Function, Less Trim, Hex Key Dogging, Dark Bronze Painted Finish, Non-Handed

The Arrow S1250 Rim Exit Device offers a reliable and dependable solution at a price you can afford.

Chassis & Cover: Non-ferrous alloy

End caps: Metal

Doors:

• 1-3/4" (44.45 mm) thick
• hollow metal
• 4-1/2" (114.3 mm) minimum stile

Handling: Non-handed

Dogging: Allen-type key standard, cylinder available.

Top/Bottom Bolts/Latchbolt: 3/4" (19.05 mm) throw, stainless steel

Throughbolts: Order separately

Rail Assembly: Steel

Rail Size:

• Furnished standard for 32-1/4" to 36" door widths.
• Specify "-24" for 24" to 32" door widths.
• Specify "-48" for 36-1/4" to 48" door widths.

Finishes: AL, BRZ, LBZ (sprayed finishes)

• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
• Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix "F" before part number.
• ANSI A117.1 Accessibility Code
• Fire Exit Hardware for wood doors, listed up to 1-1/2 hour, B label doors
• All exit devices comply with life safety code NFPA 101.
• All fire rated devices comply with fire door and window code NFPA80

Resources

• S1150 Series / S1250 Series Cut Sheet
