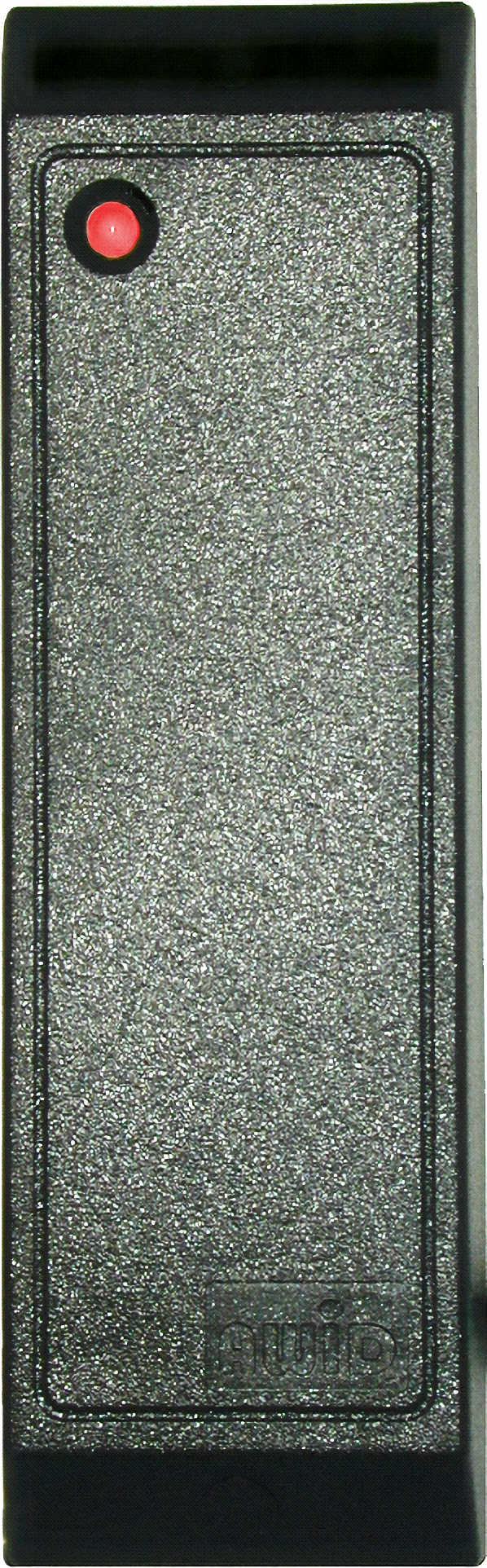

AWID MM-6800-GR-MP Prox Reader Mullion Wiegand RS232

AWID MM-6800-GR-MP Prox Reader Mullion Wiegand RS232 is engineered for seamless integration into access control systems, particularly in space-restricted environments. This proximity reader offers an impressive read range of 6 to 8 inches, ensuring swift and reliable access for users. Designed specifically for mullion mount applications, the MM-6800 excels in both indoor and outdoor settings, with its robust metal-compensated housing minimizing read range loss when installed on metal surfaces. Equipped with simultaneous Wiegand and RS-232 compatibility, this reader is versatile enough to support various access control configurations. The device measures a compact 6" x 1.75" x 1", making it unobtrusive while still delivering high performance. Its electronics are potted with epoxy compound, providing added durability for demanding environments. The MM-6800 features an LED indicator for visual feedback and a piezo beeper for audible alerts, ensuring optimal communication with users. This reader is compatible with all Wiegand access control systems, allowing for easy integration and flexibility across multiple installations. With its attractive dark gray or beige enclosure, the AWID MM-6800-GR-MP not only performs well but also enhances the aesthetic of any access point. Reliable, durable, and user-friendly, it’s your go-to solution for secure access management.

Prox Reader Mullion Wiegand RS232

AWID's Sentinel-Prox™ Proximity Reader MM-6800™ is specially designed for mullion mount of various Access Control applications. With a read range of 6 to 8 inches, the MM-6800 delivers exceptional value without compromise on quality, durability, and performance for both indoor and outdoor applications. The MM-6800 reader is a fully featured Wiegand and RS-232 compatible reader with an LED and Annunciator for both small and large volume OEM and Dealer installations. The MM-6800 reader is metal compensated, resulting in minimal loss of read range when mounted on a metal mullion providing ease of installation in various door access applications.

• Wiegand and RS232 (simultaneous)
• 6" to 8" (15 to 20cm) read range
• 6" x 1.75" x 1" (15.24 x 4.45 x 2.54cm) in size
• Power requirement: 5 ~ 12 VDC
• Mullion Width - Indoor/Outdoor

• Read range of 6 to 8 inches
• Specially designed for mullion mount
• Electronics potted with epoxy compound for demanding environmental applications
• LED for visual feedback, Piezo beeper for audio feedback
• Compatible with all Wiegand access control systems
• Industry standard Wiegand (26 to 50 bit) output and RS-232 interface
• Attractive high-tech enclosure in dark gray or beige color.
• Sleek Metal compensated reader housing for mounting to metal door or window frames

Benefits:

• Visual and Audible indicators providing dependable user feedback and guidance for quick and easy installation
• Wiegand output allows use of multiple control panels allowing stocking of one reader for all applications and credential requirements
• Metal compensated housing provides trouble free mounting versatility for most access/entry applications
