Images may not represent actual product and finish

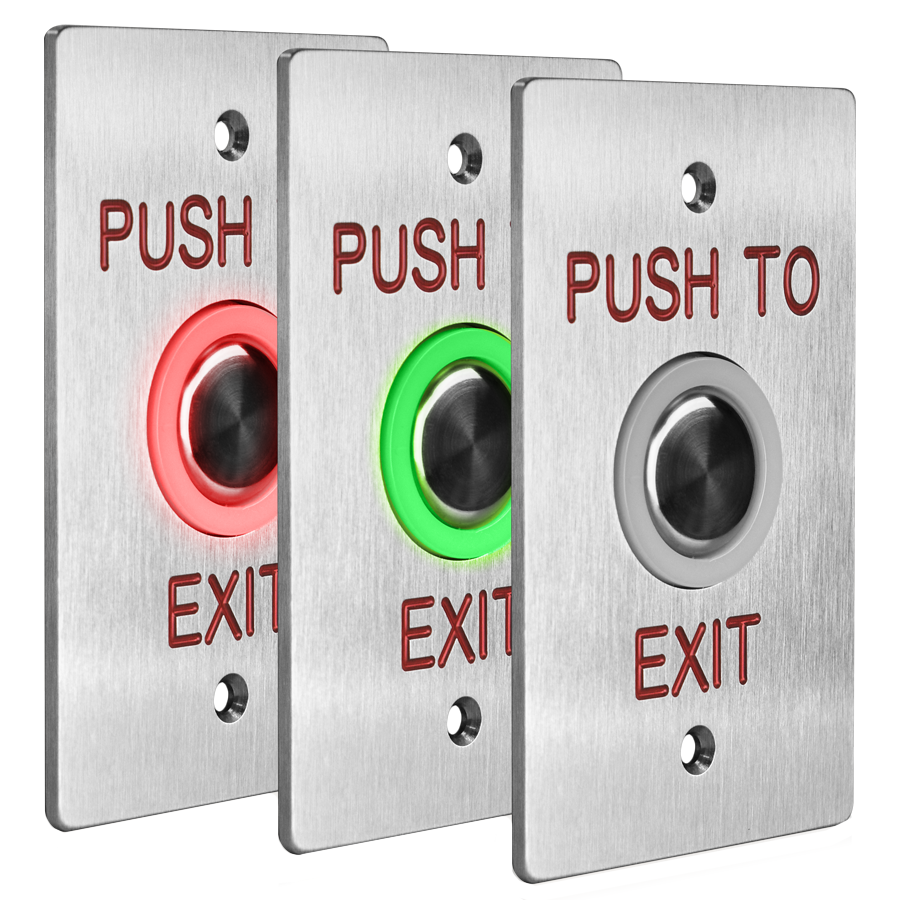

BEA 10PIEZO241 Pushbutton

Your Price: $202.29

Retail Price:$333.92

Your Savings:$131.63(39%)

Piezo Button, Single Gang, for Request to Exit and Access Control Packages, 1 to 40 Second, User-Adjustable Output Hold Time, Heavy Duty Construction, 12/24 VDC Auto-Sensing

Part Number : BEA_10PIEZO241

Availability: 14 In Stock

Quantity

Description

BEA 10PIEZO241 Pushbutton

Piezo Button, Single Gang, for Request to Exit and Access Control Packages, 1 to 40 Second, User-Adjustable Output Hold Time, Heavy Duty Construction, 12/24 VDC Auto-Sensing

Heavy Duty Construction
The Piezo Button incorporates piezoelectric technology to convert physical touch (pressure) of the push button from mechanical to electrical energy
Status illumination can be set to red, green, or no illumination
Selectable Fail Safe and Fail Secure options
Hold timer lasts from as little as 1 second to as much as 40 seconds
The Piezo button provides for a NO / NC contact
Stainless steel construction is designed for all weather use
Designed specifically for Request to Exit / access control applications
Button switch life exceeds one billion cycles
Compatible with most single gang boxes
Voltage Input 12-24 VDC
Hold Time 1-40 Seconds
Current: LEDs On: 40 mA (Idle), 60mA (Active) // LEDs Off : 10 mA (Idle), 40mA (Active)
Plastic Transparent Light Ring
Dimensions 2.75" x 4.5" x 1.25" 3/8" cut corners
Weight 8.0 oz (220 g)

Attributes

Manufacturer surcharge: $ 9.16

Alternate Codes: 10PIEZO241, 142340

Baa Qualified: No

Category: Access Control, Door Closers, Power Operators, Push Plates, Wireless

Finish Description: Satin Stainless Steel

Fire Rated: No

Mounting: Single Gang, Surface Mount

Mounting Plate Size: 1 Gang

Operating Voltage: 12/24 VDC

Operating Voltages: 12/24 VDC

Restrictions: None

Series: BEA Activation Plates

Size: 2-3/4" x 4-1/2"

Style: Piezo Push Button

Subtype: Pushbutton

Switch Mode: Normally Closed, Normally Open, Time Delay

Type: RX

Voltage/ Amp Rating: 12 - 24V DC
