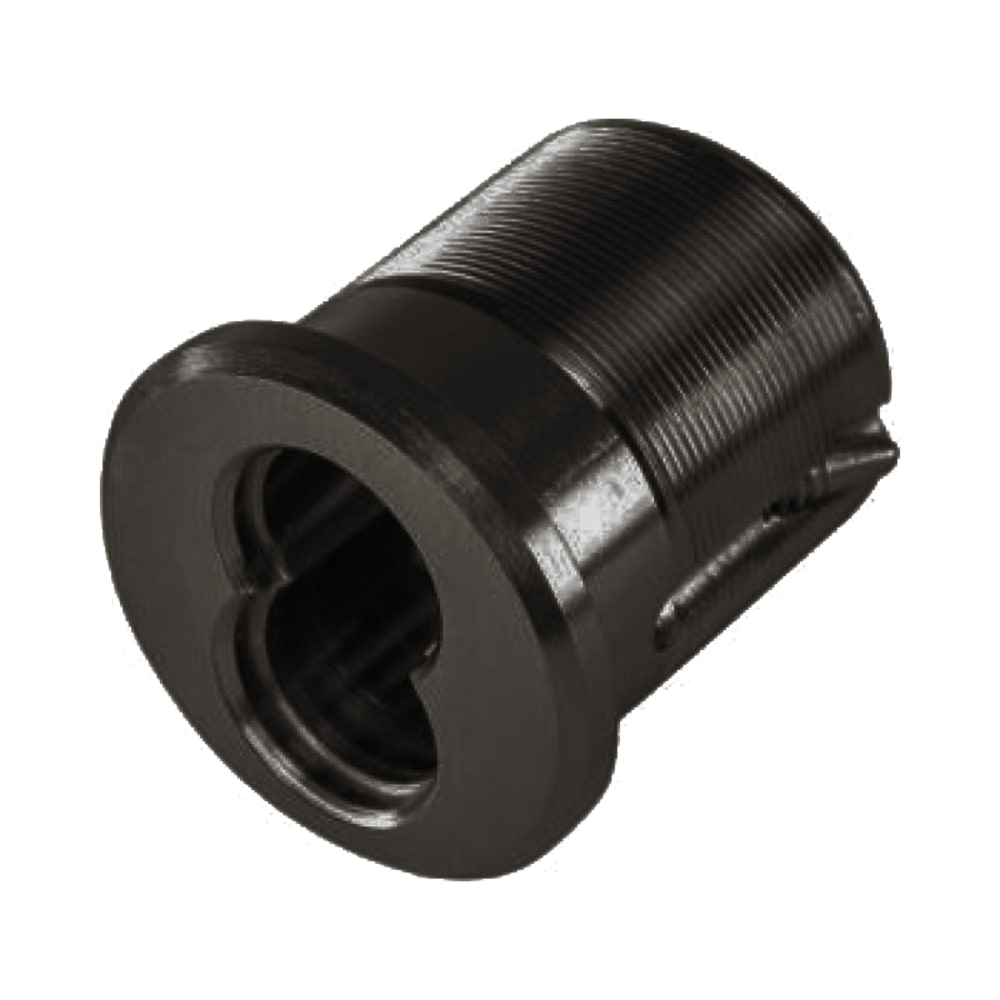

BEST 1E74-C161RP3622 1-1/4 Inch Mortise Cylinder delivers exceptional security and reliability for standard mortise applications. Designed with a 7-Pin SFIC preparation and featuring a C161 Clover cam, this cylinder is compatible with Arrow and Corbin Russwin deadbolts, ensuring versatile installation options for commercial settings. Crafted from durable brass or bronze bar stock, the cylinder is finished in a sleek flat black coating (622/US19), enhancing both aesthetics and strength. This mortise cylinder incorporates a unique set screw that mounts diagonally within the cylinder wall. When tightened, it secures the cylinder firmly in place, providing an added layer of protection against tampering. The BEST 1E series also allows for easy masterkeying into any existing BEST system, making it an ideal choice for properties requiring sophisticated access control. With a cylinder length of 1-1/4 inches, it accommodates door thicknesses ranging from 1-7/8 inches to 2-1/2 inches, making it suitable for a variety of door types. Additionally, it comes with a limited warranty of three years, reflecting BEST's commitment to quality and performance. Choose the BEST 1E74-C161RP3622 for a reliable locking solution that combines functionality and style.
1-1/4 Inch Mortise Cylinder
Standard 1-1/4" Mortise Cylinder, 7-Pin SFIC Prep Less Core, C161 Clover Cam, For Use With Arrow/Corbin Russwin Deadbolt, Flat Black Coated Finish
Standard mortise applications require use of BEST's 1E series cylinders. BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. BEST mortise cylinders feature the BEST interchangeable core and may be masterkeyed into any existing BEST system.
BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes.
Manufacturer surcharge: 7.0%
Baa Qualified: Yes
Base Material: Brass or Bronze
Cam Number: C161
Cam Type: Clover
Commercial Residential: Commercial
Country of origin: USA
Cylinder Length: 1-1/4"
Cylinder Type: 7-Pin SFIC Prep Less Core
Door Thickness: 1-7/8" to 2-1/2"
Finish: 622/US19
Finish Family: Black
For Use With: Arrow/Corbin Russwin Deadbolt
Function: Standard
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Options: Standard 1E-R2/1E-R5 Ring Package
Origin: USA
Pack Qty: 1
Pins: 7
Series: E Series Cylinders
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
