BEST 1E74-C4RP3619 1-1/4 Inch Mortise Cylinder is designed for standard mortise applications, meeting the needs of both commercial and residential settings. This 7-pin SFIC prep less core cylinder features a C4 straight cam for optimal performance and compatibility with BEST 40/45H systems. Constructed from durable brass or bronze bar stock, the cylinder boasts a satin nickel plated clear coated finish, offering both aesthetic appeal and added corrosion resistance. The innovative design includes a set screw that mounts diagonally in the cylinder wall, ensuring a secure fit within the housing. This feature enhances the overall security of your locking mechanism. The BEST 1E series cylinders are masterkeyable into any existing BEST system, providing flexibility and convenience for property managers and homeowners alike. With a cylinder length of 1-1/4 inches, it is suitable for doors with a thickness ranging from 1-7/8 inches to 2-1/2 inches. BEST stands behind their products, offering a limited 3-year warranty to guarantee quality and performance. Ideal for those seeking reliable door hardware solutions, the BEST 1E74-C4RP3619 combines functionality with security, making it an excellent choice for your locking needs.

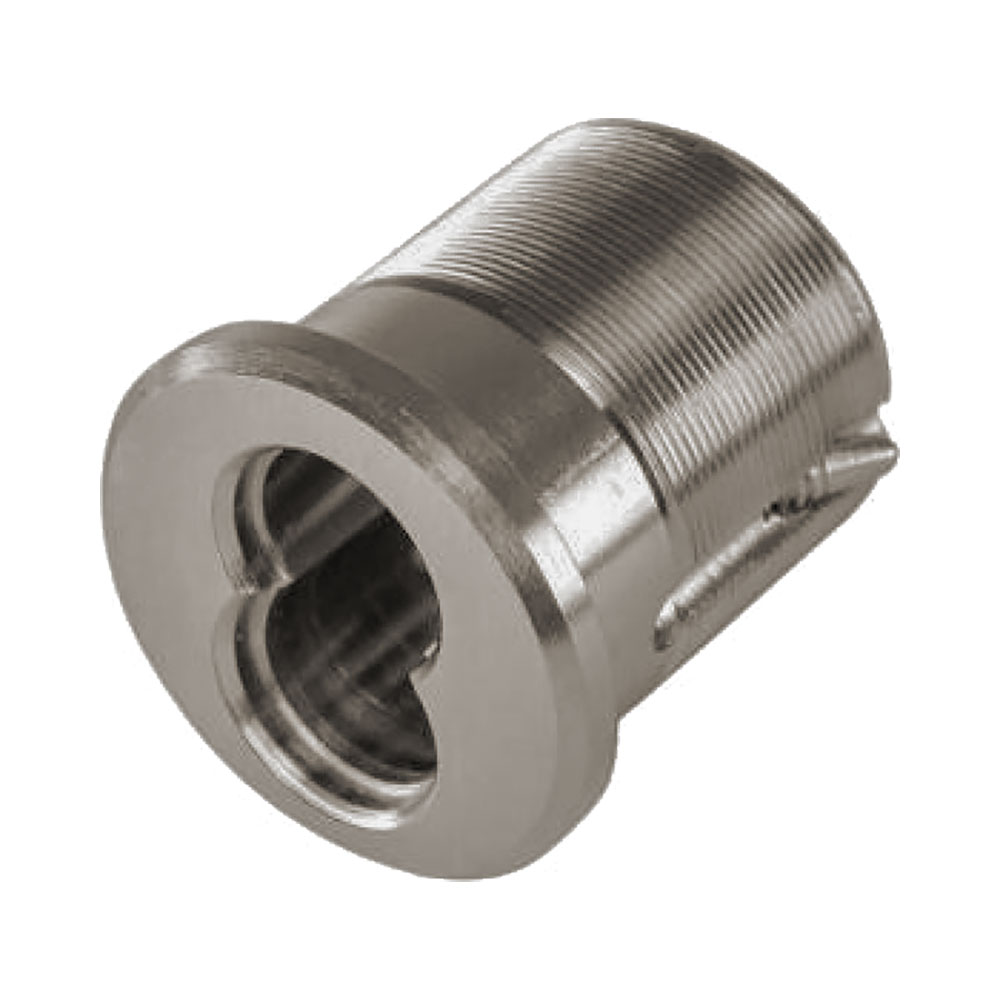

1-1/4 Inch Mortise Cylinder
Standard 1-1/4" Mortise Cylinder, 7-Pin SFIC Prep Less Core, C4 Straight Cam, For Use With 40/45H, Satin Nickel Plated Clear Coated Finish
Standard mortise applications require use of BEST's 1E series cylinders. BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. BEST mortise cylinders feature the BEST interchangeable core and may be masterkeyed into any existing BEST system.
BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes.
Baa Qualified: Yes
Base Material: Brass or Bronze
Cam Number: C4
Cam Type: Straight
Commercial Residential: Commercial
Country of origin: USA
Cylinder Length: 1-1/4"
Cylinder Type: 7-Pin SFIC Prep Less Core
Door Thickness: 1-7/8" to 2-1/2"
Finish: 619/US15
Finish Family: Matte Silver
For Use With: BEST 40/45H
Function: Standard
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Options: Standard 1E-R2/1E-R5 Ring Package
Origin: USA
Pack Height: 1.75"
Pack Height 2: 3.25"
Pack Length: 2.88"
Pack Length 2: 9.5"
Pack Qty: 1
Pack Volume: 8.8 in³
Pack Volume 2: 254.72 in³
Pack Width: 1.75"
Pack Width 2: 8.25"
Pins: 7
Series: E Series Cylinders
Ship Weight: 0.35 lbs.
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 20
